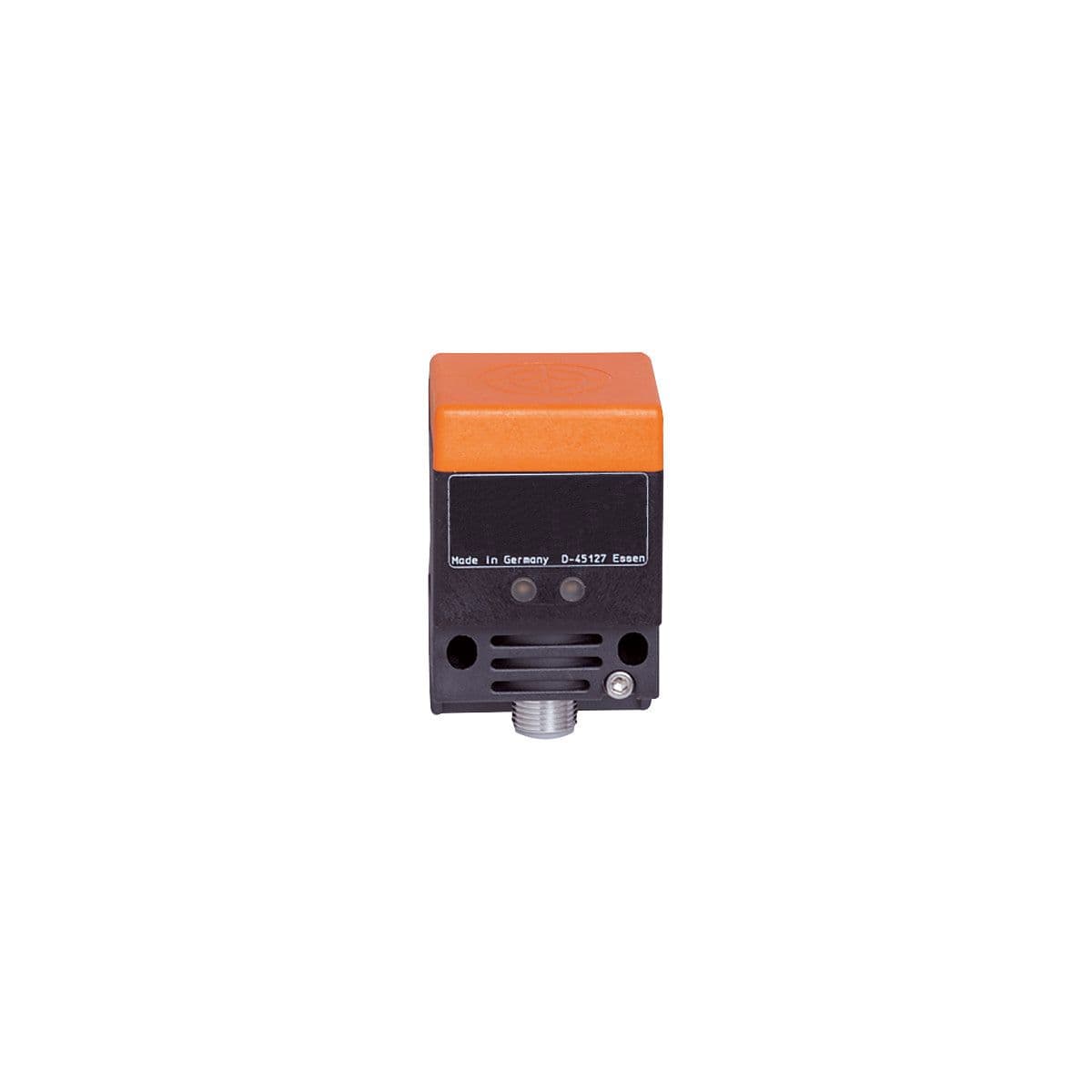

IM0057 ifm Electronic Electronic Components

Name: IM0057
Brand: ifm Electronic

Part#:IM0057

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, Long sensing range for use in conveying, Output function: normally closed, Sensing range [mm]: 35, Housing: rectangular, System: Increased sensing range

Product Details

Overload protection
no
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Short-circuit proof
no
Minimum load current [mA]
1.9
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC)
Max. voltage drop switching output AC [V]
6.5
Switching frequency DC [Hz]
50
Switching frequency AC [Hz]
20
Permanent current rating of switching output DC [mA]
100
Max. voltage drop switching output DC [V]
6
Reverse polarity protection
no
Operating voltage [V]
20...250 AC/DC
Sensing range [mm]
35
Protection class
I
System
Increased sensing range
Housing
rectangular
Output function
normally closed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
