IM0053 ifm Electronic Electronic Components
Part#:IM0053
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

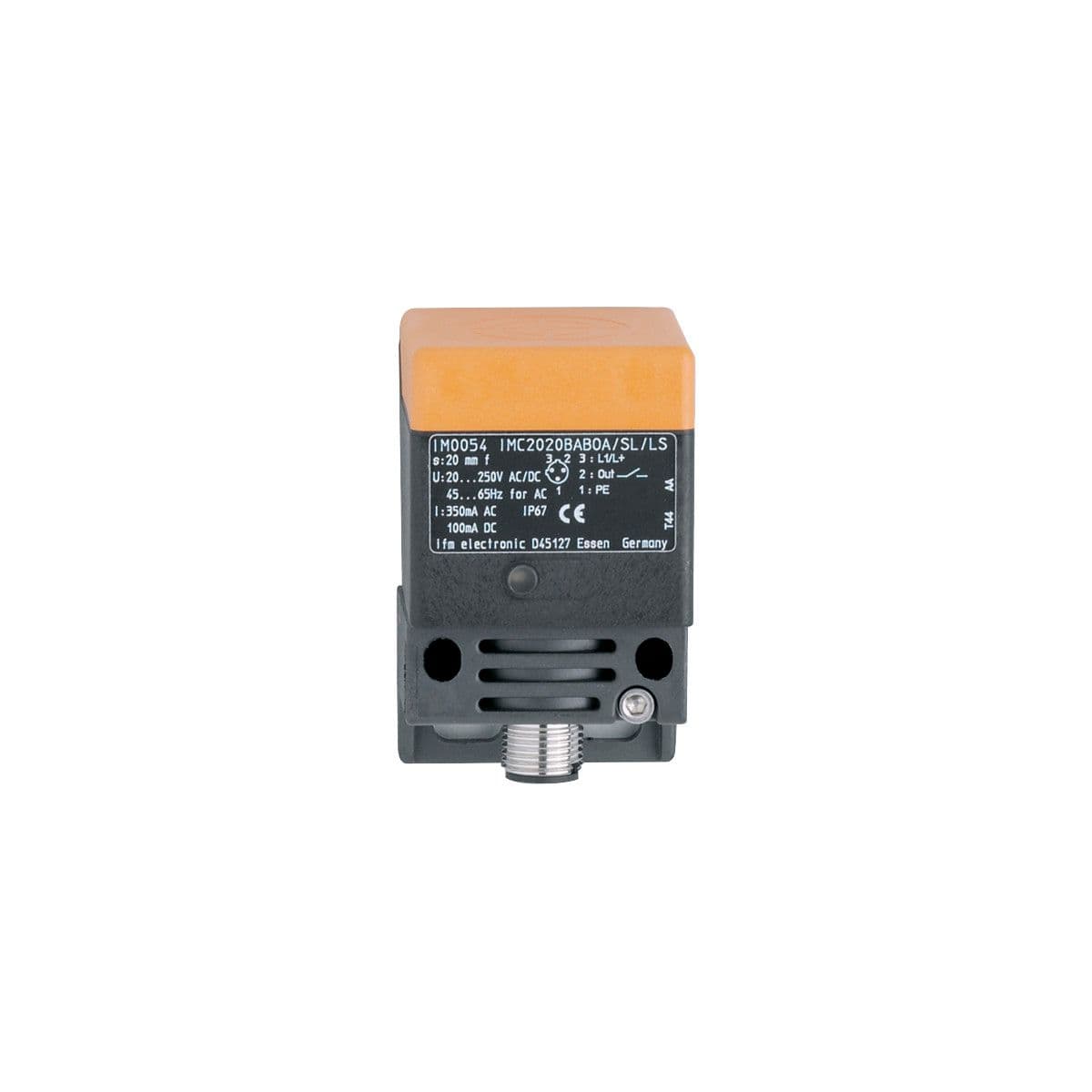

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing range [mm]: 35, Housing: rectangular, Dimensions [mm]: 40 x 40 x 66, System: gold-plated contacts; Increased sensing range
Product Details
- Output function normally open
- Max. voltage drop switching output DC [V] 6
- Overload protection no
- Switching frequency DC [Hz] 50
- Max. leakage current [mA] 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC)
- Short-circuit proof no
- Max. voltage drop switching output AC [V] 6.5
- Minimum load current [mA] 1.9
- Switching frequency AC [Hz] 20
- Permanent current rating of switching output DC [mA] 100
- Permanent current rating of switching output AC [mA] 250; (350 (...50 °C))
- Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz)
- Protection class I
- Reverse polarity protection no
- Operating voltage [V] 20...250 AC/DC
- Dimensions [mm] 40 x 40 x 66
- Sensing range [mm] 35
- System gold-plated contacts; Increased sensing range
- Housing rectangular
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
