IM0020 ifm Electronic Electronic Components

Name: IM0020
Brand: ifm Electronic

Part#:IM0020

Category:Electronic Components

Product Lifecycle:Active

Product description

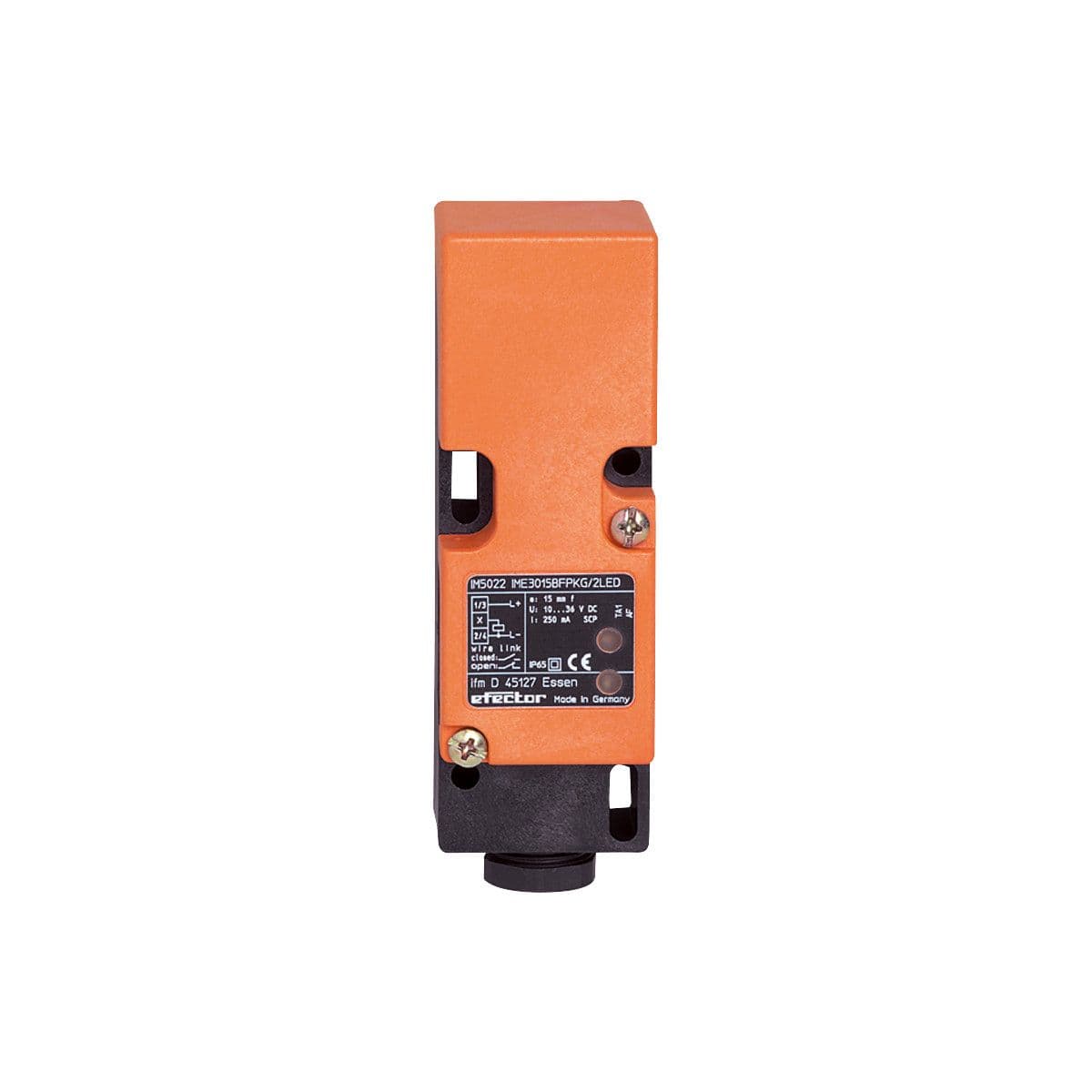

Inductive sensor, Long sensing range for use in conveying, Output function: normally open / closed; (selectable), Sensing range [mm]: 15, Housing: rectangular

Product Details

Overload protection
no
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Minimum load current [mA]
5
Reverse polarity protection
no
Operating voltage [V]
20...250 AC/DC
Switching frequency DC [Hz]
55
Switching frequency AC [Hz]
20
Short-circuit proof
no
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Permanent current rating of switching output DC [mA]
100
Max. voltage drop switching output AC [V]
6.5
Max. voltage drop switching output DC [V]
6
Protection class
II
Sensing range [mm]
15
Housing
rectangular
Output function
normally open / closed; (selectable)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IM0020 Related Documents

CAD_SAT_MZ_IME--NG.ZIP-1631071258241.zip CAD_STP_MZ_IME--NG.ZIP-1631071258267.zip CAD_DXF_MZ_IME--NG.ZIP-1631071258255.zip CAD_DWG_MZ_IME--NG.ZIP-1631071258270.zip PDF data sheet-1631071258244.pdf

Manufacturer warranty
