IM0055 ifm Electronic Electronic Components

Name: IM0055
Brand: ifm Electronic

Part#:IM0055

Category:Electronic Components

Product Lifecycle:Active

Product description

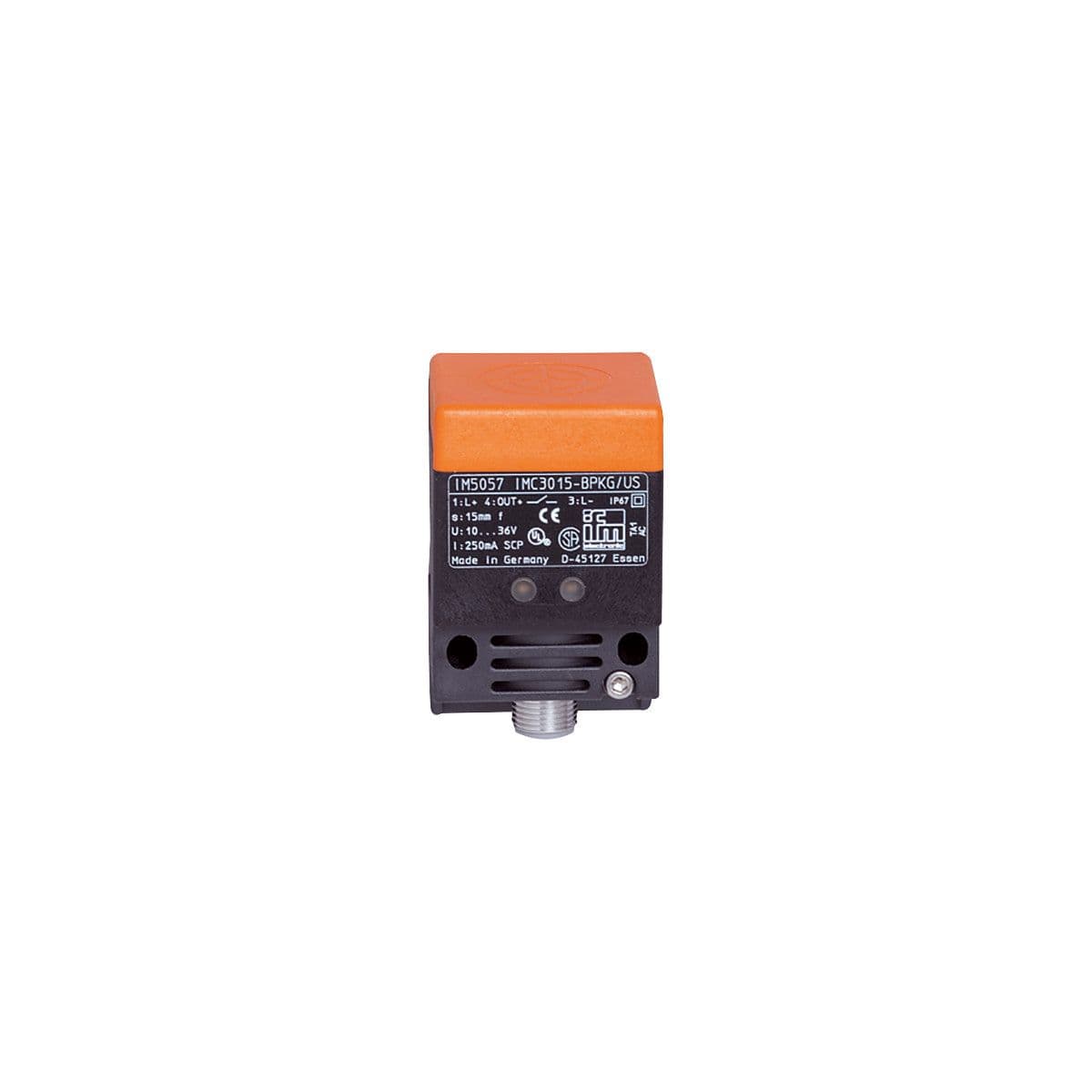

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing range [mm]: 20, Housing: rectangular, Dimensions [mm]: 40 x 40 x 66

Product Details

Overload protection
yes
Switching frequency AC [Hz]
25
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Switching frequency DC [Hz]
100
Permanent current rating of switching output DC [mA]
450
Permanent current rating of switching output AC [mA]
450
Minimum load current [mA]
5.5
Max. leakage current [mA]
1.7 (140 V AC/DC)
Max. voltage drop switching output AC [V]
5.5
Max. voltage drop switching output DC [V]
5.5
Reverse polarity protection
yes
Protection class
I
Operating voltage [V]
20...140 AC / 10...140 DC
Frequency AC [Hz]
47...63
Dimensions [mm]
40 x 40 x 66
Housing
rectangular
Sensing range [mm]
20
Output function
normally open

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
