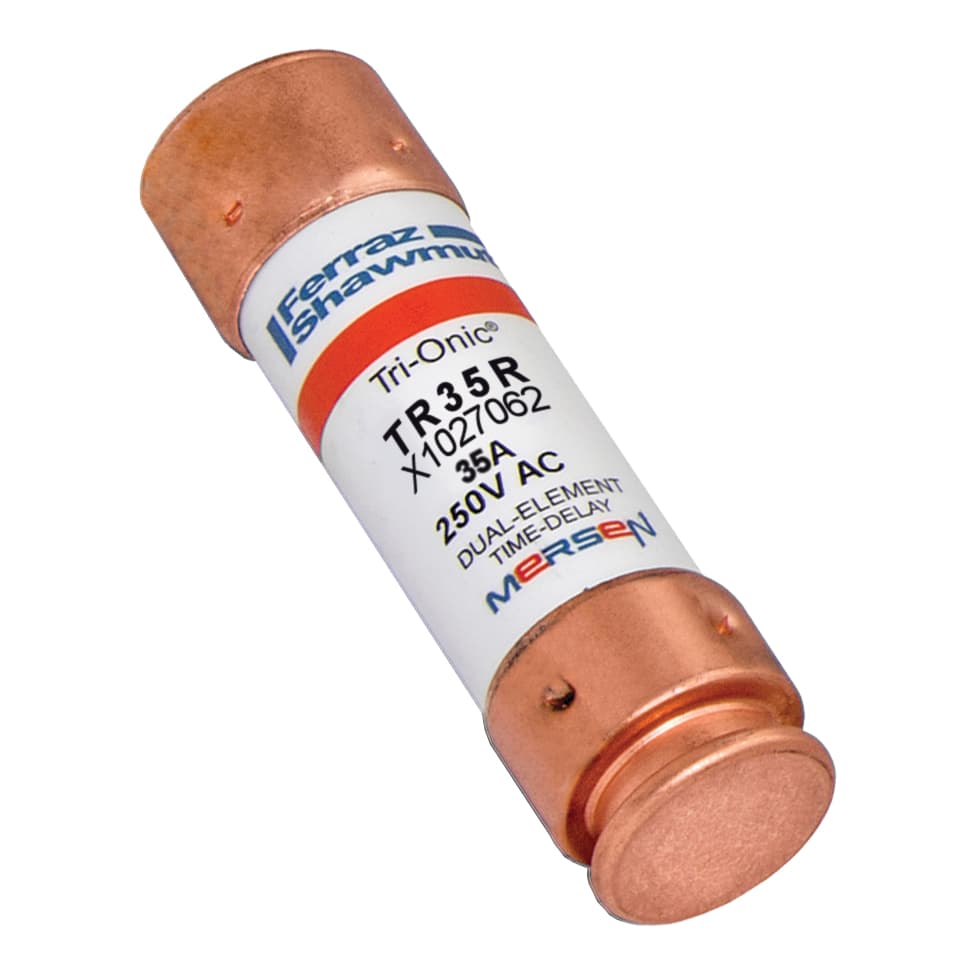

TR35R Mersen Fuses

Product Details

• Current Rating
  35 A
• Terminal Type
  Ferrule
• Material
  PolyTube
• Type
  Low Voltage UL/CSA Fuses
• Weight
  53.9665 g
• Voltage
  250 VAC / 250 VDC
• Approvals
  *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
• UL Certification
  YES
• Trip Class
  Time Delay
• Fuse Class
  Class RK5
• Characteristics:
  Time Delay
• Interrupting Rating:
  200 kA (AC)
• Terminal Type:
  Ferrule
• Length:
  3 Inch
• Diameter:
  13/16 Inch
• Amps:
  32 A
• Volts:
  250 VAC/DC
• Type:
  Class RK5
• Approval:
  UL 248-12
• Shipping Weight:
  1.25 lbs.
Shipping Height:
2.00 In.
Shipping Length:
5.00 In.
Shipping Width:
4.00 In.
Series:
TR-R
UPC:
782001747909
Sell Pack Weight
1.42 lb
Sell Pack Length
4.25 in
Sell Pack Height
1.69 in
Sell Pack Width
3.12 in
Product Diameter
0.81 in
Body/Insulating Material
PolyTube
Sell Pack Quantity
10 Each
Product Length
3 in
Connection/Terminal Type
Ferrule
Connection/Terminal Material
Copper
Product Weight
0.135 lb
ROHS Compliant
Yes
Rated voltage DC UL
250 V
Ampere Rating
35 A
Frequency
50/60 Hz
Rated voltage AC UL
250 V
Fuse Class
Class RK5
Mounting
Clip
AC Max I.R./Breaking Capacity: I1
200 kA
Speed/Characteristic
Time Delay
