TR350RID Mersen Fuses
Part#:TR350RID
Manufacturer:Mersen
Category:Fuses
Alt. Part#:782001415433
Product Lifecycle:Active
Get a quick Quote!

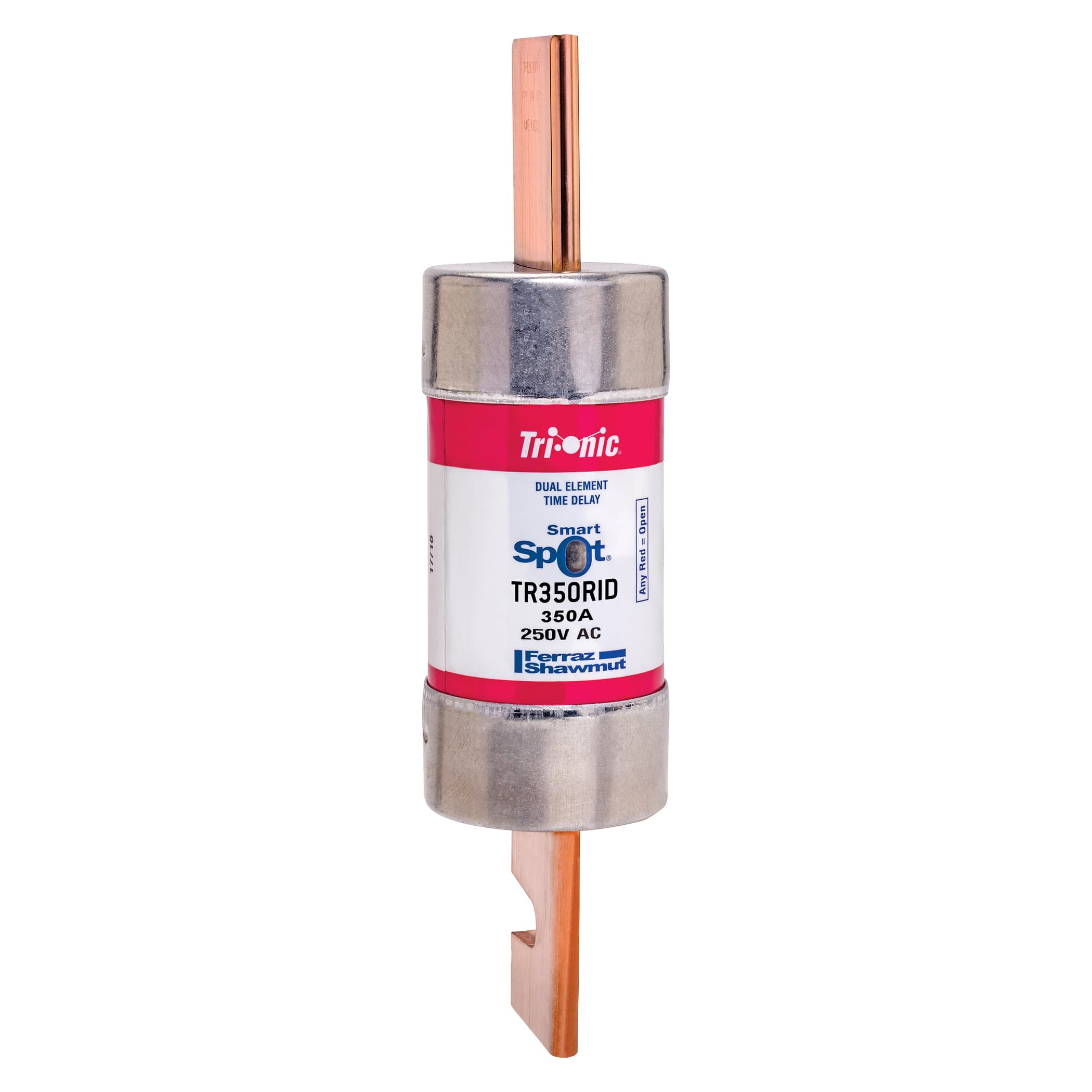

TR350RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 350A Blade SmartSpot® Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TR350RID Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 350 A
- Terminal Type Blade
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 743.74 g
- Voltage 250 VAC / 250 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- Sell Pack Height 8.81 in
- Product Length 8.63 in
- Sell Pack Length 2.12 in
- Sell Pack Weight 1.89 lb
- Sell Pack Width 2.12 in
- Sell Pack Quantity 1 Each
- Product Diameter 2.06 in
- Body/Insulating Material PolyTube
- Product Weight 1.8 lb
- Connection/Terminal Type Blade
- Indication System Yes
- Connection/Terminal Material Tin-Plated Copper
- Indication System Type SmartSpot®
- Rated voltage DC UL 250 V
- Rated voltage AC UL 250 V
- Ampere Rating 350 A
- ROHS Compliant Yes
- Speed/Characteristic Time Delay
- Mounting Clip
- Fuse Class Class RK5
- AC Max I.R./Breaking Capacity: I1 200 kA
- Frequency 50/60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TR350RID Description
TR350RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 350A Blade SmartSpot® Tri-Onic®
Related documents TR350RID Specs
