IM0042 ifm Electronic Electronic Components

Name: IM0042
Brand: ifm Electronic

Part#:IM0042

Category:Electronic Components

Product Lifecycle:Active

Product description

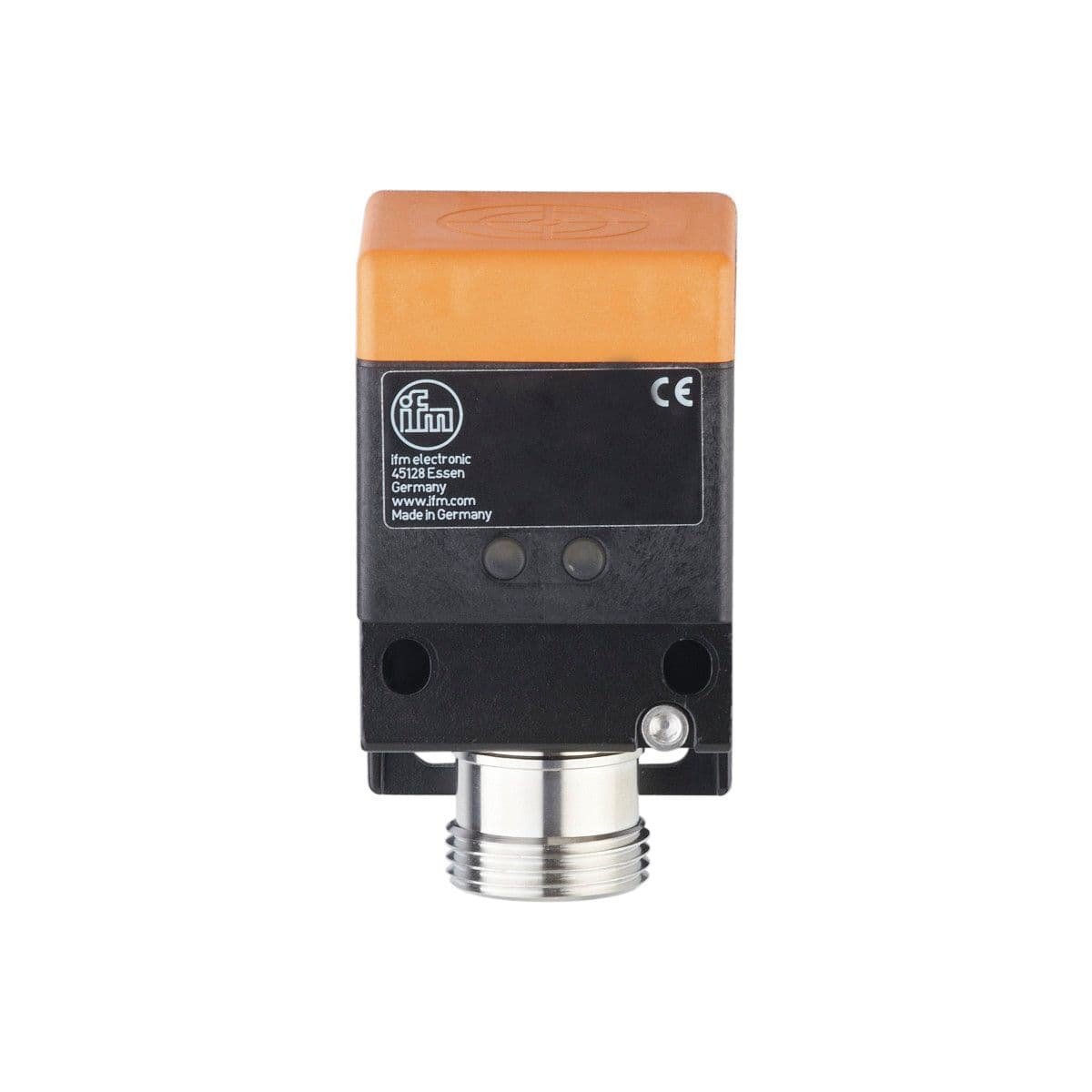

Inductive sensor, Long sensing range for use in conveying, Output function: normally open, Sensing range [mm]: 35, Housing: rectangular, System: Increased sensing range

Product Details

Overload protection
yes
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Permanent current rating of switching output AC [mA]
450
Max. voltage drop switching output DC [V]
5.5
Minimum load current [mA]
5.5
Max. leakage current [mA]
1.7 (140 V AC/DC)
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
100
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Max. voltage drop switching output AC [V]
5.5
Permanent current rating of switching output DC [mA]
450
Reverse polarity protection
yes
Sensing range [mm]
35
Protection class
I
Operating voltage [V]
20...140 AC / 10...140 DC
Frequency AC [Hz]
47...63
System
Increased sensing range
Housing
rectangular
Output function
normally open

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
