USM3N Mersen Fuse Holders

Name: USM3N
Brand: Mersen
Price: 197.37 USD
Availability: BackOrder

Part#:USM3N

Manufacturer:Mersen

Category:Fuse Holders

Alt. Part#:782001830038

Product Lifecycle:Active

Get a quick Quote!

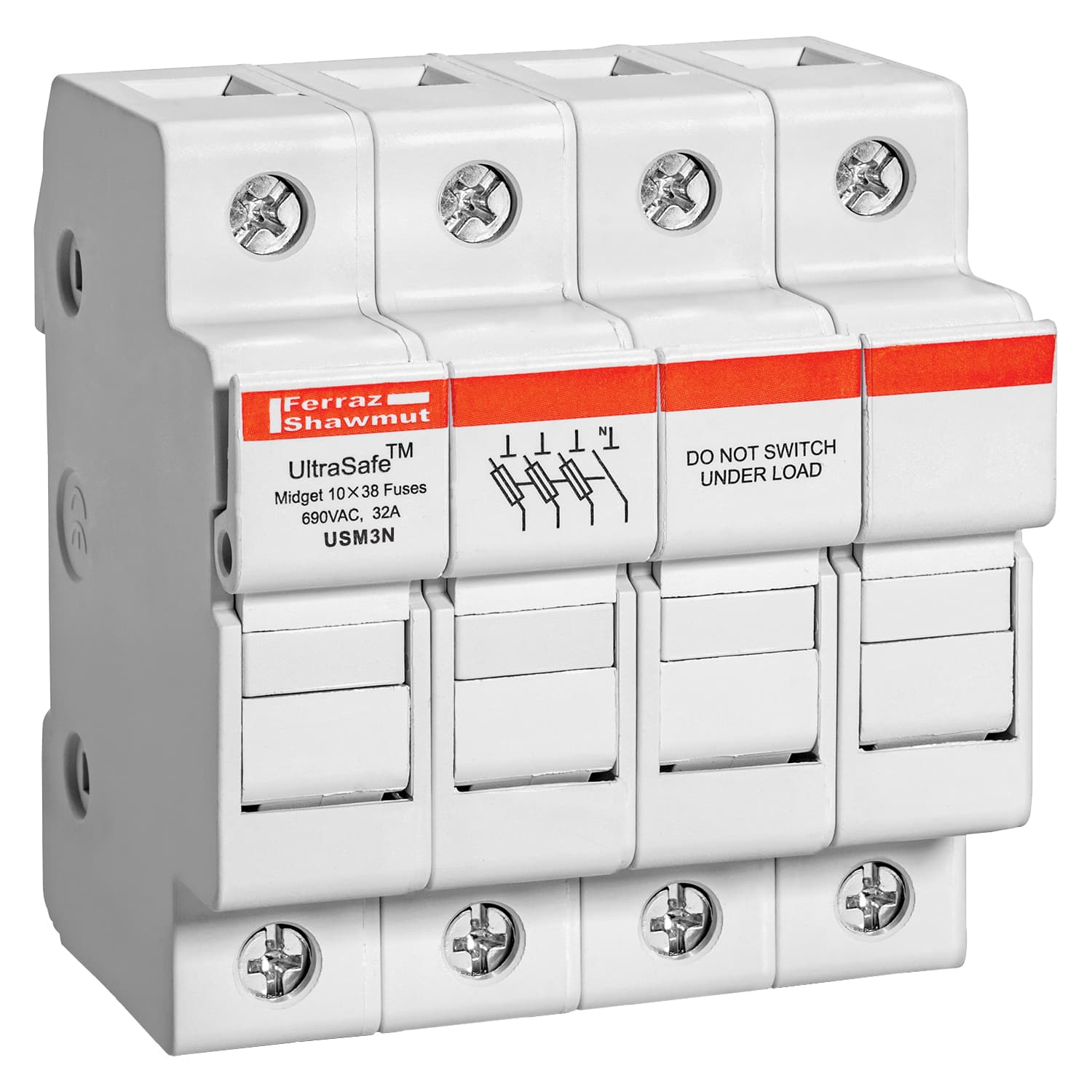

USM3N Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 3-Pole+N Pressure Plate IP65

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the USM3N Mersen price in the box on the right side or send a quick quote.

Product Details

Number of Poles
3+N Pole
Current Rating
30 A
Weight
195.22 g
Voltage
800 VAC
Product Height
2.32 in
Sell Pack Quantity
4 Each
Sell Pack Length
8.5 in
Sell Pack Height
2.66 in
Sell Pack Weight
1.81 lb
Product Length
3.07 in
Product Weight
0.43 lb
Product Width
2.07 in
Wiring range
#6 to #14 Solid or Stranded
Sell Pack Width
3.5 in
Installation Mounting
DIN Rail
Torque Rating
15 lb-in
Max Fuse Rating
30 A
Body/Insulating Material
Polyamide
Number of Poles
3-pole
Fuse Installation Method
Clip-in

Fuse Type/Class

Midget

Short Circuit Current Rating (SCCR)

100 kA

Fuse Class

Midget

Rated voltage AC UL

800 V

Ampere Rating

30 A

ROHS Compliant

Yes

Rated voltage DC UL

1000 V

Frequency

50/60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

USM3N Description

USM3N Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC Midget 30A 3-Pole+N Pressure Plate IP65 | Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles.

UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties. | Features: * IP20 Finger-Safe (touch safe)

* Optional visual blown fuse Indicator lights

* DIN-rail mounting

* Compact footprint

* Quick, tool-free, easy fuse change outs

* USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M | Application: *All circuits up to 600 volts for motors, control circuits, transformers, etc…

*DC circuits up to 1000VDC including photovoltaic applications

*Non-load disconnect
