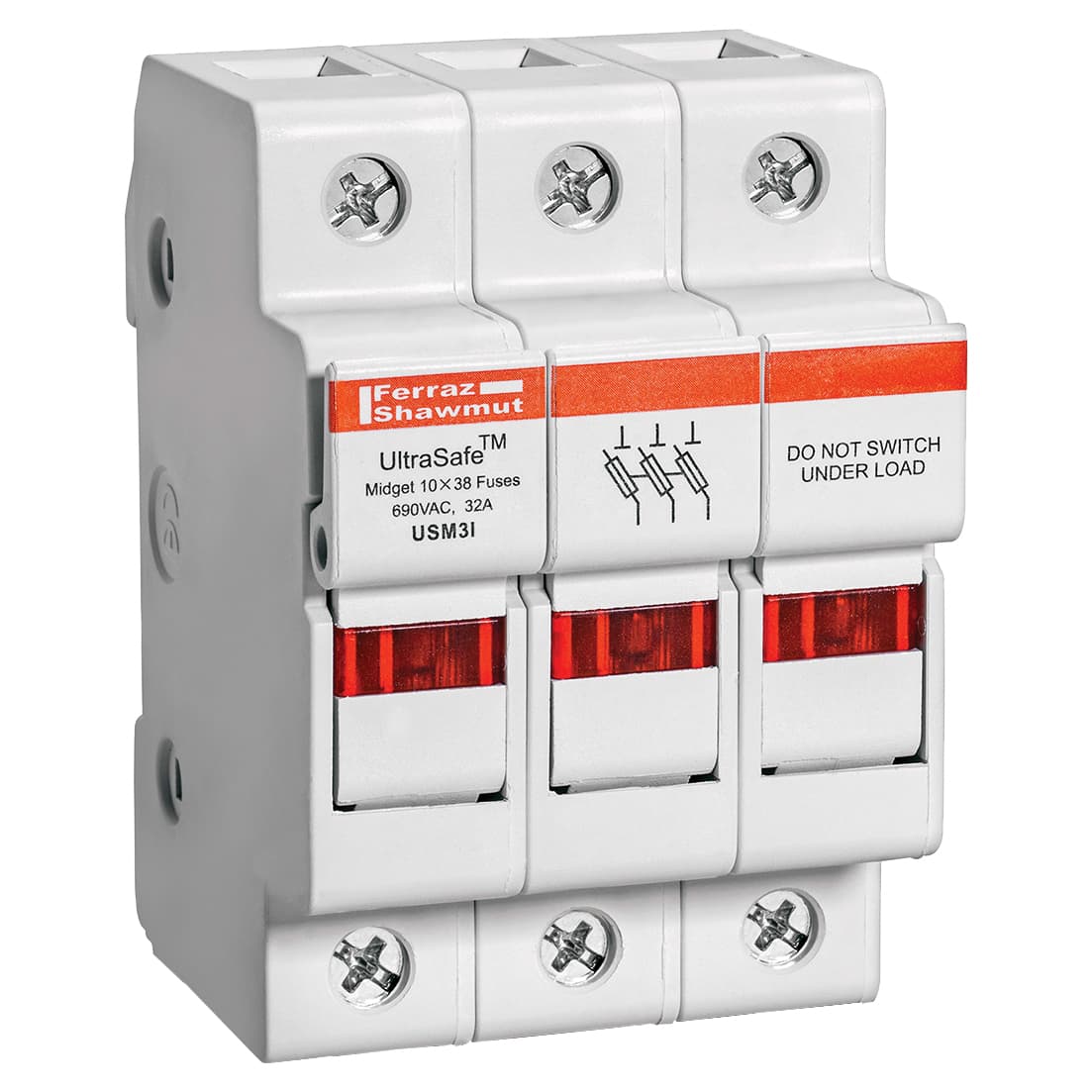

USM3I Mersen Fuse Holders
Part#:USM3I
Alt. Part#:782001830014
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
USM3I Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 3-Pole LED Pressure Plate IP65
Product Details
- Number of Poles 3 Pole
- Current Rating 30 A
- Weight 195.22 g
- Voltage 600 VAC
- Sell Pack Height 2.66 in
- Sell Pack Weight 1.81 lb
- Product Height 2.32 in
- Installation Mounting DIN Rail
- Sell Pack Length 8.5 in
- Sell Pack Quantity 4 Each
- Sell Pack Width 3.5 in
- Product Length 3.07 in
- Product Width 2.07 in
- Max Fuse Rating 30 A
- Product Weight 0.43 lb
- Body/Insulating Material Polyamide
- Fuse Installation Method Clip-in
- Wiring range #6 to #14 Solid or Stranded
- Fuse Class Midget
- Fuse Type/Class Midget
- Indication System Type LED
- ROHS Compliant Yes
- Short Circuit Current Rating (SCCR) 100
- Ampere Rating 30 A
- Number of Poles 3-pole
- Rated voltage AC UL 600 V
- Rated voltage DC UL 600 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of USM3I on Advantage Electric Supply is $213.12. Order now.
About the product
USM3I Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Midget 30A 3-Pole LED Pressure Plate IP65 | Mersen USM Series UltraSafe Modular Fuse holders introduce a new level of safety for Midget 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multipole units can also be field assembled by ordering pin-tie handles.
UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties. | Features: * IP20 Finger-Safe (touch safe)
* Optional visual blown fuse Indicator lights
* DIN-rail mounting
* Compact footprint
* Quick, tool-free, easy fuse change outs
* USM use with: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT, HP6M, HP10M | Application: *All circuits up to 600 volts for motors, control circuits, transformers, etc…
*DC circuits up to 1000VDC including photovoltaic applications
*Non-load disconnect
