T331079 Mersen Fuse Holders
Part#:T331079
Alt. Part#:8430399000343
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
T331079 Mersen - Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 1-Pole IP20
Product Details
- Number of Poles 1 Pole
- Current Rating 125 A
- Weight 218.374 g
- Sell Pack Length 8.39 in
- Sell Pack Height 3.07 in
- Sell Pack Weight 2.884 lb
- Sell Pack Width 5.04 in
- Sell Pack Quantity 6 EACH
- Product Width 1.38 in
- Product Height 5.02 in
- Installation Mounting DIN rail acc. EN 60715
- Product Length 3.01 in
- Product Weight 0.481 lb
- Comments Wiring tool : PZ2 or flat 6.5x1.2mm screw drivers recommended (max. diameter 7mm)
- Conventional Free Air thermal Current With Fuse-Links Ith 125 A
- Rated Insulation Voltage 690 V
- Rated Impulse Withstand Voltage 8
- Torque Rating 35.4 lb-in
- Rated voltage DC IEC 690 V
- Number of Poles 1-Pole
- ROHS Compliant Yes
- Fuse Size 22x58
- Short Circuit Current Rating (SCCR) 100 kA
- Design Details CMS22 single pole
- Ampere Rating 125 A
- Rated voltage AC IEC 690 V
- Catalogue No. CMS221
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T331079 on Advantage Electric Supply is $175.17. Order now.
About the product

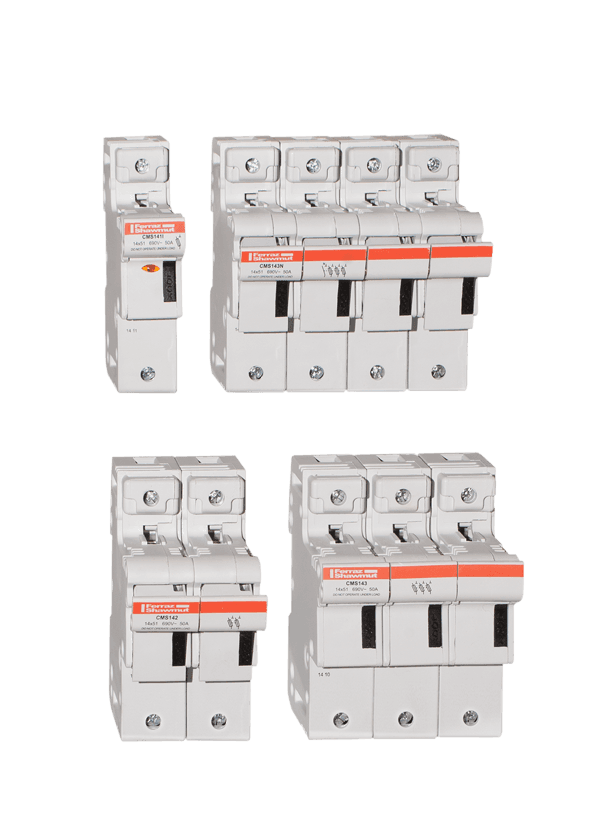

T331079 Mersen - Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 1-Pole IP20 | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C
*Shock and vibration tested for marine and railway applications | Application: *All circuits up to 690V for protection of motors, transformers, low voltage distribution, control circuits.
*Non-load operation
