T331056 Mersen Fuse Holders
Part#:T331056
Alt. Part#:8430399000053
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
T331056 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC N IP20
Product Details
- Number of Poles N Pole
- Current Rating 50 A
- Weight 140.286 g
- Sell Pack Length 6.46 in
- Sell Pack Height 3.11 in
- Sell Pack Width 4.45 in
- Sell Pack Weight 1.852 lb
- Sell Pack Quantity 6 EACH
- Product Height 4.36 in
- Product Weight 0.309 lb
- Product Length 3.01 in
- Comments Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
- Product Width 1.04 in
- Installation Mounting DIN rail acc. EN 60715
- Conventional Free Air thermal Current With Fuse-Links Ith 50 A
- Rated Insulation Voltage 690 V
- Catalogue No. CMS14N
- Rated Impulse Withstand Voltage 8
- Torque Rating 30.98 lb-in
- Rated voltage AC IEC 690 V
- Number of Poles N
- Ampere Rating 50 A
- Short Circuit Current Rating (SCCR) 100 kA
- Fuse Size 14x51
- ROHS Compliant Yes
- Rated voltage DC IEC 690 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T331056 on Advantage Electric Supply is $166.75. Order now.
About the product
T331056 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC N IP20 | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C
*Shock and vibration tested for marine and railway applications | Application: *All circuits up to 690V for protection of motors, transformers,
*low voltage distribution, control circuits, drive protection
*Non-load operation
T331056 Related Documents
Similar products from: Mersen Fuse Holders
Manufacturer warranty
T331056 Mersen
$166.75
Your price can be lower.
Log in or Create account to check your discount
Backordered – place your order now, and we’ll take care of the rest
Select Qty:
$1,000.50
$166.75 each
Your order is guaranteed – we’ll keep you updated on delivery timelines
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare T331056 with other Fuse Holders products
Number of Poles
Current Rating
Weight
Sell Pack Length
Sell Pack Height
Sell Pack Width
Sell Pack Weight
Sell Pack Quantity
Product Height
Product Weight
Selected product
T331056
Mersen
T331056 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC N IP20
Number of PolesN Pole
Current Rating50 A
Weight140.286 g
Sell Pack Length6.46 in
Sell Pack Height3.11 in
Sell Pack Width4.45 in
Sell Pack Weight1.852 lb
Sell Pack Quantity6 EACH
Product Height4.36 in
Product Weight0.309 lb
HP15FHM32A
Mersen
HP15FHM32A Mersen - Fuse Holder IEC+UL/CSA HelioProtection® Size 10x85 1500VDC IEC 1500VDC UL 1-Pole...
Number of Poles1 Pole
Current Rating32 A
Weight81.72 g
Sell Pack Length-
Sell Pack Height-
Sell Pack Width-
Sell Pack Weight-
Sell Pack Quantity-
Product Height-
Product Weight-

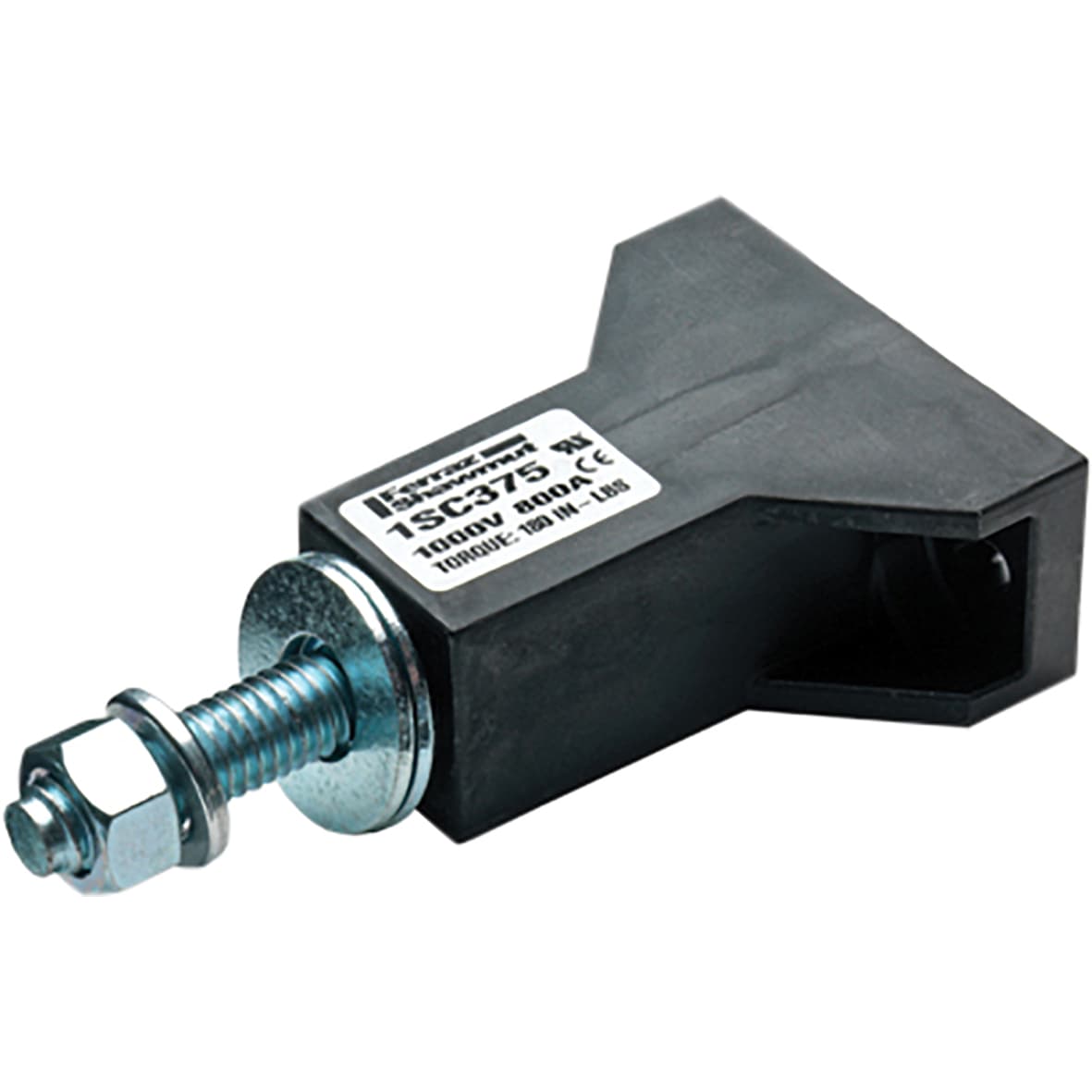

Number of Poles1 Pole
