K207055 Mersen Fuse Holders
Part#:K207055
Manufacturer:Mersen
Alt. Part#:4086500005208
Product Lifecycle:Active
Get a quick Quote!

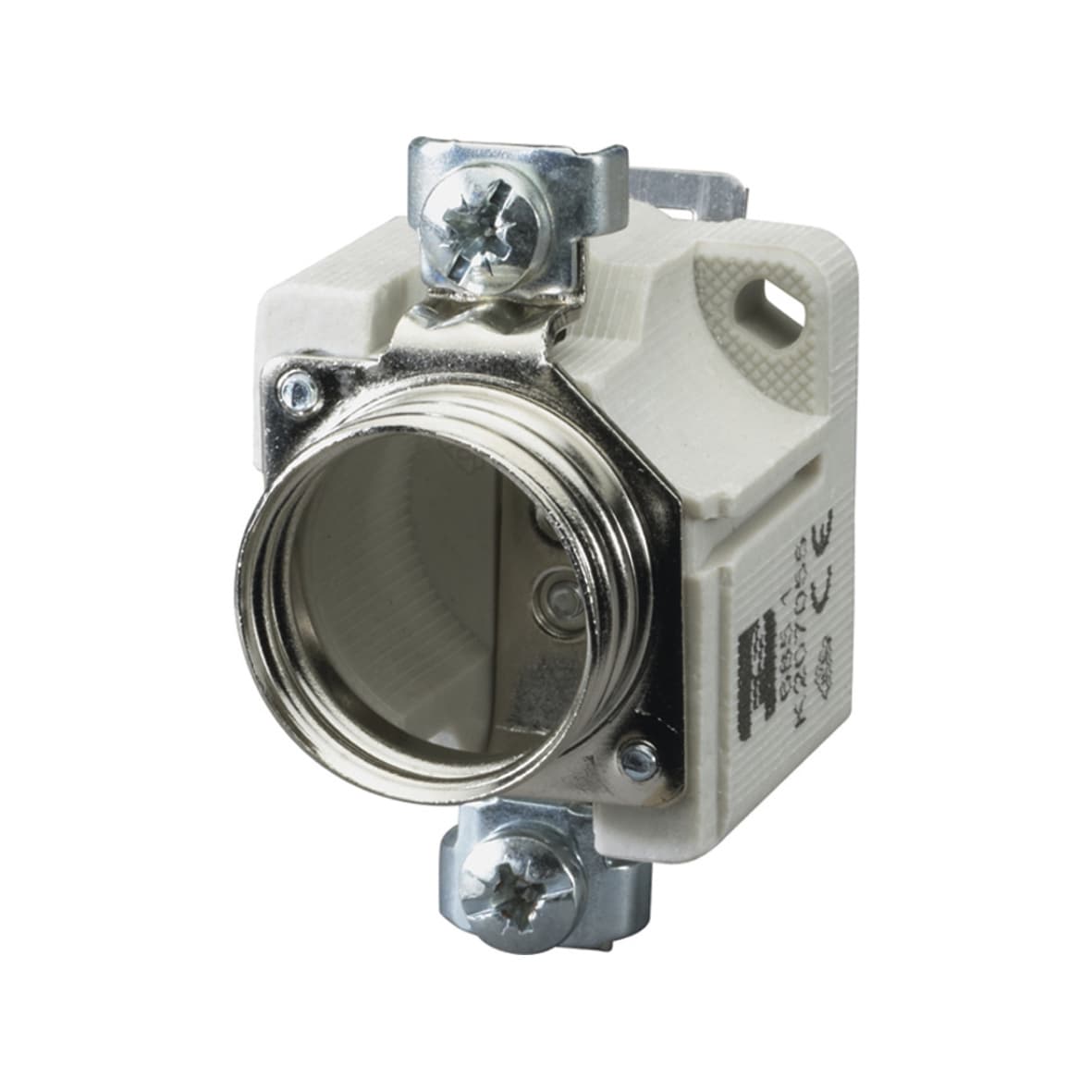

K207055 Mersen - DIN Fuse base Size DII 500VAC 500VDC 25A 1-Pole without touch protection DIN Rail mounting
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the K207055 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 1 Pole
- Current Rating 25 A
- Weight 102.15 g
- Sell Pack Width 8.66 in
- Sell Pack Height 2.48 in
- Sell Pack Length 8.66 in
- Sell Pack Weight 3.373 lb
- Sell Pack Quantity 15 EACH
- Product Weight 0.225 lb
- Product Width 1.5 in
- Product Height 1.81 in
- Installation Mounting DIN Rail
- Ampere Rating 25 A
- Product Length 2.36 in
- Number of Poles 1-Pole
- Body/Insulating Material Ceramic
- Catalogue No. 00685.100000
- Fuse Size DII
- ROHS Compliant Yes
- Rated voltage AC IEC 500 V
- Rated voltage DC IEC 500 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
K207055 Description
K207055 Mersen - DIN Fuse base Size DII 500VAC 500VDC 25A 1-Pole without touch protection DIN Rail mounting | The D fuse-system is the first generation of the screw fuse-system in the german DIN standard. It is still used in many installations.
Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links.
The D fuse-range comprises the sizes NDZ, DII, DIII, DIV, DV.
The range of applications for D fuse-links "gG" is the protection of cables and power lines. They limit and cut off unacceptable overcurrents and short circuit currents up to their nominal breaking capacity. D fuse-links "gG" also protect equipments and installations against dynamic effects of high short circuit currents. | Features: *Insulated body suitable for high mechanical and thermal impacts
*Top and bottom contacts made of nickel plated copper alloy
*Safe cut off short circuits and over currents due to special design of fuse element
*Clear indication of operation condition due to coloured indicator on top contact
*Low power dissipation
*Optimized size
*Resistant to aging
*Free of lead, cadmium, mercury, chrome 6 (rohs conformity) | Application: *House incoming units
*Meter distribution units
*Distribution cabinets
*Installation cabinets
*Fuse boxes
Related documents K207055 Specs
