A055C1D0R0-20E Mersen Fuses
Product Details
- Current Rating 20 A
- Terminal Type Blade
- Weight 12 lb
- Voltage 5500 VAC
- UL Certification YES
- Trip Class E-Rated
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Sell Pack Length 28.12 in
- Sell Pack Width 5.5 in
- Sell Pack Height 4.5 in
- Sell Pack Weight 12.6 lb
- Sell Pack Quantity 1 Each
- Body/Insulating Material PolyTube
- Product Diameter 3 in
- Product Length 16.81 in
- Product Weight 12 lb
- Connection/Terminal Type Blade
- Connection/Terminal Material Silver-Plated Copper
- Mounting Clip-lock
- AC Max I.R./Breaking Capacity: I1 63 kA
- Indication System Type Visual Indicator
- Indication System Yes
- Ampere Rating 20 A
- Speed/Characteristic E-Rated
- Rated voltage AC UL 5500 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A055C1D0R0-20E on Advantage Electric Supply is $2,099.81. Order now.
About the product

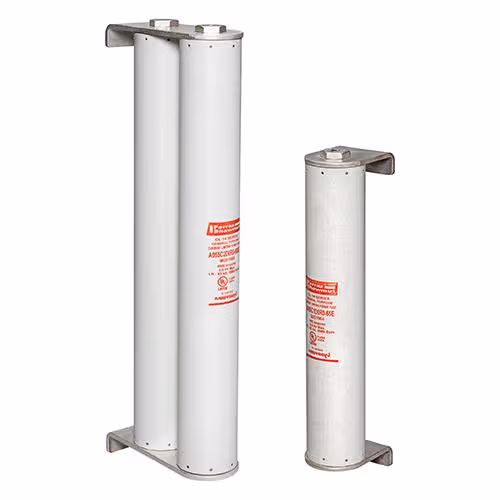

A055C1D0R0-20E Mersen - Medium Voltage E-Rated Fuse 5500VAC 20A Clip-lock Series: D0R0 Visual Indicator Amp-Trap®
Mersen Amp-Trap fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These general purpose current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double or triple barrels 3 inch diameter (size D) and mount in unique cam-locking clips for superior connections as well as easy installation and replacement.
*UL listed for compatibility with UL listed equipment
*Clip-lock mounting for reliable high integrity connection into circuit
*Current-limiting for superior equipment protection
*Non-venting for silent operation
*Metal embossed catalog number and manufacturing date for lasting identification
*Blown-fuse indicator to give positive identification of open fuse
*2 lb tripped force - 0.50 Inch
*Protection for 5.5kV to 15.5kV transformers or distribution systems
