A055F1C0R0-20E Mersen Fuses
Product Details
- Current Rating 20 A
- Terminal Type Ferrule
- Weight 3.8 lb
- Voltage 5500 VAC
- Trip Class E-Rated
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Speed/Characteristic E-Rated
- Product Weight 3.8 lb
- Sell Pack Length 17.75 in
- Connection/Terminal Material Silver-Plated Copper
- Body/Insulating Material GMG
- Sell Pack Height 4 in
- AC Max I.R./Breaking Capacity: I1 63 kA
- Connection/Terminal Type Ferrule
- Sell Pack Width 4 in
- Frequency 50/60 Hz
- Sell Pack Quantity 1 Each
- Indication System Type Visual Indicator
- Mounting Clip
- Sell Pack Weight 3.99 lb
- Rated voltage AC UL 5500 V
- Product Width 3 in
- Ampere Rating 20 A
- Product Diameter 2 in
- Indication System Yes
- Product Length 14.18 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of A055F1C0R0-20E on Advantage Electric Supply is $1,453.16. Order now.
About the product

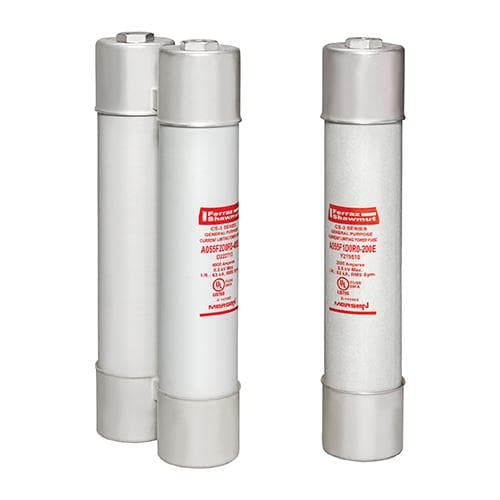

A055F1C0R0-20E Mersen - Medium Voltage E-Rated Fuse 5500VAC 20A Ferrule, Series: C0R0 Visual Indicator Amp-Trap®
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
*Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment
*Ferrule mounting for standard clips and interchangeability with other brands of fuses
*Current-limiting for superior equipment protection
*Non-venting for silent operation
*Metal embossed catalog number and manufacturing date for lasting identification
*Outdoor usage for the 9F62 and 9F60 type EJO
*Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch; Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch; 9F60/9F62: 0.125 lb tripped force – 0.20 Inch
*Protection for up to 5.5 kV transformers or distribution systems.
