HP10J350EI Mersen Electronic Components

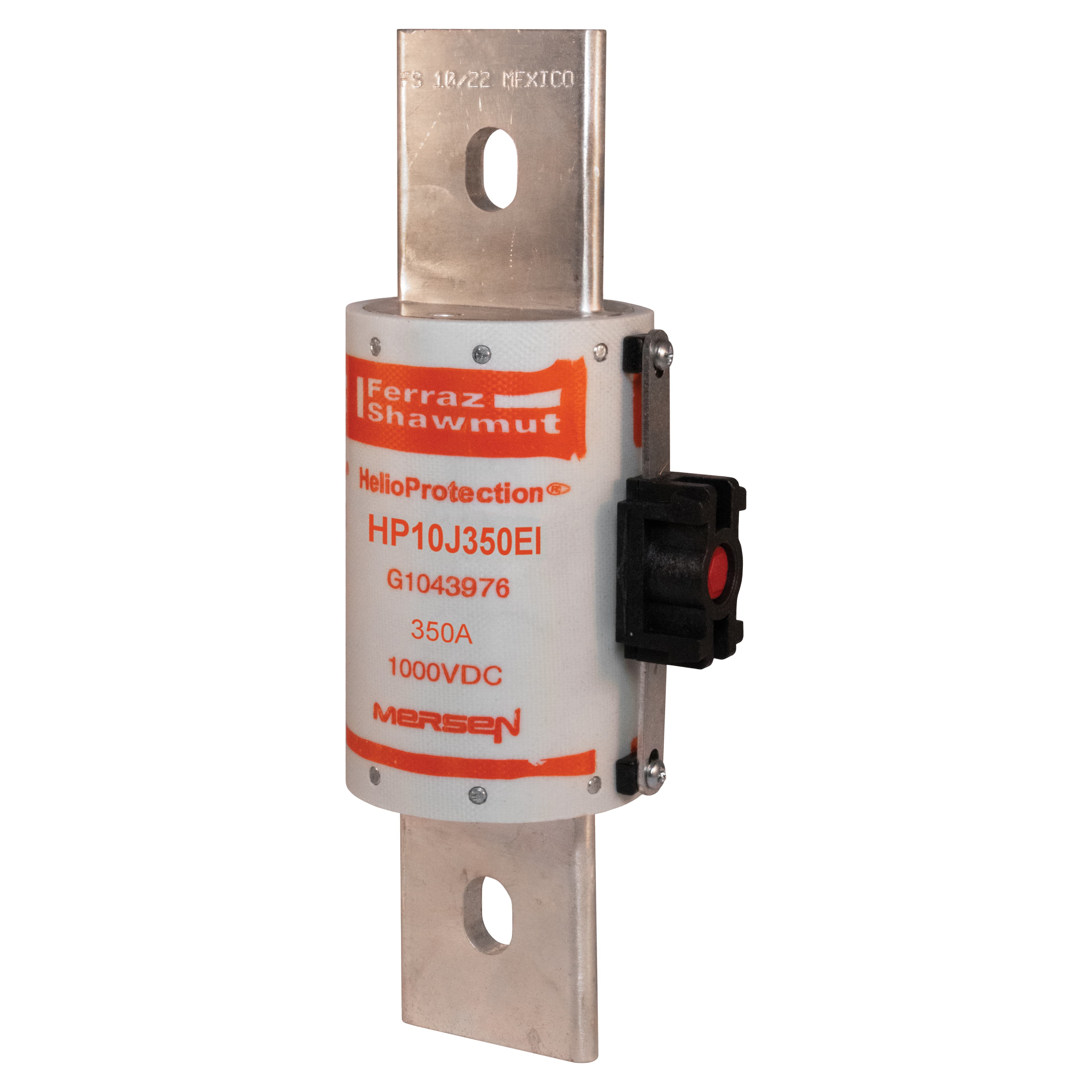

Mersen HP10J350EI HelioProtection® Fuse 1000VDC 350A gPV EI Indicator HP10J - Photovoltaic Series
Mersen

Part#:HP10J350EI

Manufacturer:Mersen

Alt. Part#:782001448455

Product Lifecycle:Active

In-stock parts: 5

Sep 19, 2024

HelioProtection® Fuse 1000VDC 350A gPV EI Indicator HP10J - Photovoltaic Series

About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the HP10J350EI Mersen price in the box on the right side or send a quick quote.

Product Details

  • Sell Pack Height
    7.44 in
  • Sell Pack Width
    3 in
  • Sell Pack Quantity
    1 Each
  • Sell Pack Length
    3.38 in
  • Sell Pack Weight
    1.94 lb
  • Product Length
    7.13 in
  • Product Weight
    1.85 lb
  • Product Diameter
    2.13 in
  • Body/Insulating Material
    GMG
  • Connection/Terminal Type
    Blade
  • Connection/Terminal Material
    Silver-Plated Copper
  • Ampere Rating
    350 A
  • Indication System Type
    EI Indicator
  • ROHS Compliant
    Yes
  • Fuse Class
    Photovoltaic
  • Speed/Characteristic
    gPV
  • Indication System
    Yes
  • Mounting
    Clip or Bolted
  • Rated voltage DC UL
    1000 V
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Rated voltage AC UL
    600 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents HP10J350EI Specs

HP10J350EI Mersen-DWG-701866 (PDF, 70Ko).pdf
HP10J350EI DS-HP10J-HelioProtection-Fuses-Photovoltaic-Mersen (EN,PDF,391Ko).pdf
HP10J350EI ATD-HP10J(70-500)-Mersen-720895 (PDF, 34Ko).pdf
HP10J350EI Mersen-DWG-701866 (DXF, 299Ko).dxf
HP10J350EI TCC-HP10J(70-600A)-Mersen-720897 (PDF, 52Ko).pdf
HP10J350EI Mersen-DWG-701866 (STEP, 17138Ko).step
