HP10J100EI Mersen Fuses
Product Details
- Current Rating 100 A
- Terminal Type Blade
- Type Photovoltaic Fuses
- Weight 0.27 lb
- Voltage 600 VAC / 1000 VDC
- UL Certification YES
- Trip Class Photovoltaic
- Country Of Origin MX
- Fuse Class Special Purpose Fuses
- Sell Pack Height 6.12 in
- Sell Pack Length 2.75 in
- Sell Pack Width 3 in
- Sell Pack Weight 0.28 lb
- Sell Pack Quantity 1 Each
- Product Weight 0.27 lb
- Product Diameter 1.63 in
- Product Length 5.75 in
- Body/Insulating Material GMG
- Indication System Type EI Indicator
- Connection/Terminal Material Brass
- AC Max I.R./Breaking Capacity: I1 200 kA
- Connection/Terminal Type Blade
- ROHS Compliant Yes
- Speed/Characteristic gPV
- Rated voltage DC UL 1000 V
- Indication System Yes
- Ampere Rating 100 A
- Fuse Class Photovoltaic
- Mounting Clip or Bolted
- Rated voltage AC UL 600 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HP10J100EI on Advantage Electric Supply is $642.09. Order now.
About the product

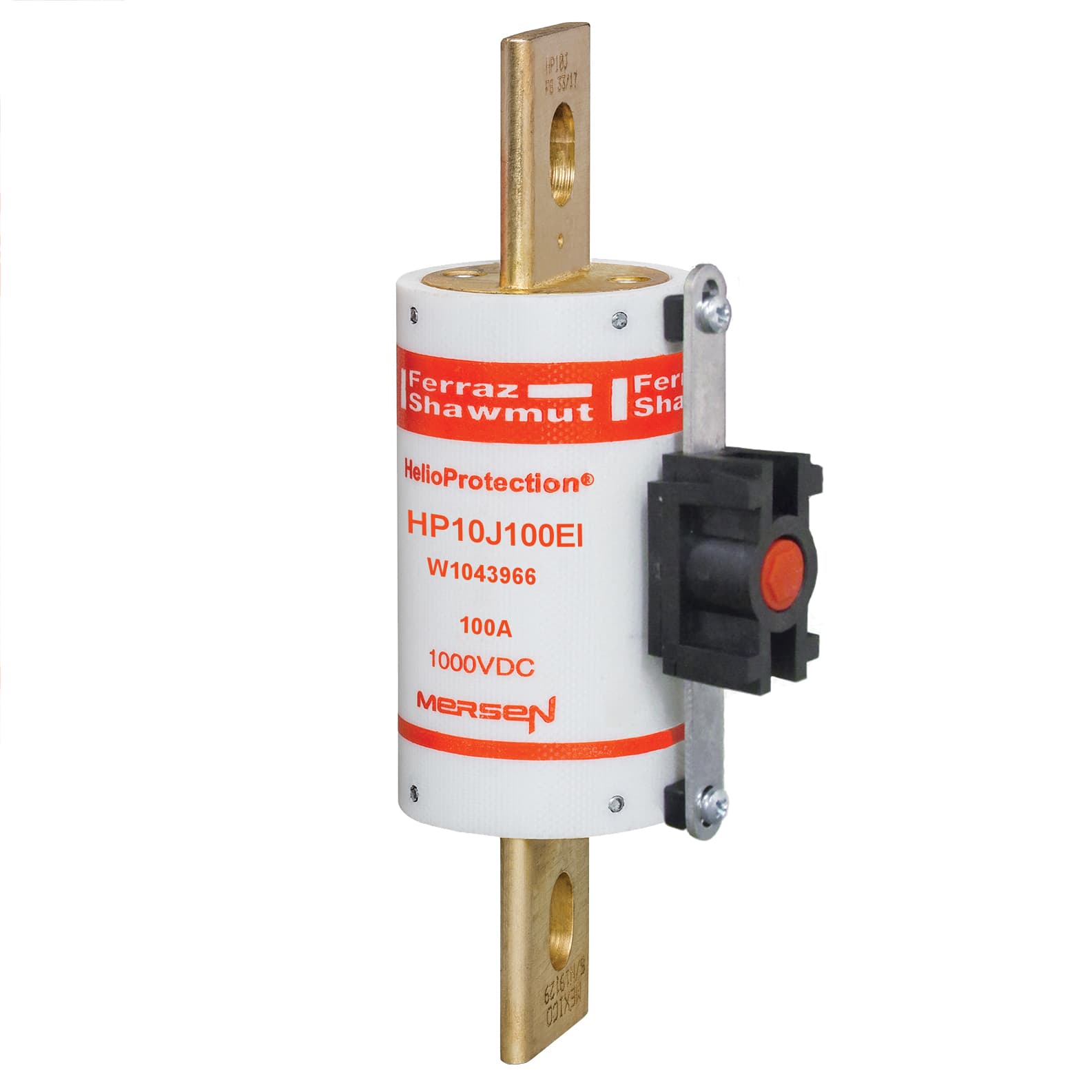

HP10J100EI Mersen Photovoltaic fuse gPV 1000VDC UL 100A With EI Indicator With Blade For Clip or Bolted
Mersen’s HP10J photovoltaic (PV) fuse series is designed specifically for DC Recombiner Boxes in the protection of 1000VDC photovoltaic systems. Its robust construction makes it ideal for continuous temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10J designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen’s HelioProtection® fuse line.
*UL Listed to standard 2579 – Photovoltaic Fuses
*Smallest available footprint in the industry
*Enlarged mounting holes
*Low fault current interrupting capability
*Durable construction for enhanced system longevity
*Temperature cycle withstand capability
*Guaranteed operation at temperature extremes
*Blown fuse indicator options available (EI option)
*200A to 400A available in NH3 mounting
*Re-combiner box (sub-combiner, array combiner, master combiner) applications
*Inverter DC input
*Battery charge controllers
