KI3511 ifm Electronic Electronic Components

Name: KI3511
Brand: ifm Electronic

Part#:KI3511

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

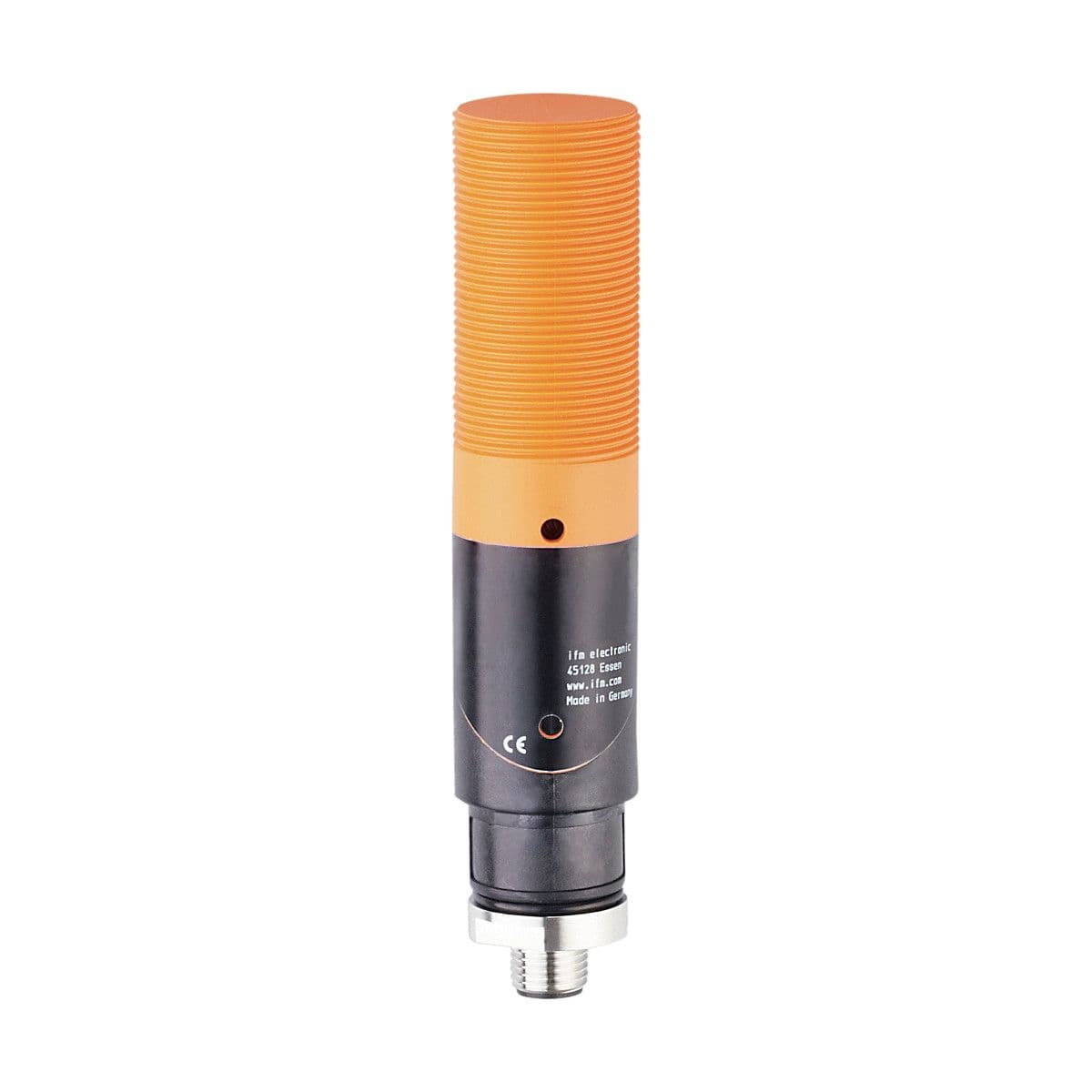

Capacitive sensor, Easy setting of the sensing range via potentiometer, Electrical design: Factory setting: normally closed, Output function: normally open / closed; (selectable), Sensing range [mm]: 3...15, Housing: Threaded type, Dimensions [mm]: M30 x

Product Details

Overload protection
no
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
50
Short-circuit proof
no
Minimum load current [mA]
5
Max. leakage current [mA]
2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Permanent current rating of switching output DC [mA]
200; (250 (...50 °C))
Permanent current rating of switching output AC [mA]
200; (250 (...50 °C))
Max. voltage drop switching output DC [V]
8
Max. voltage drop switching output AC [V]
10
Sensing range [mm]
3...15
Housing
Threaded type
Protection class
I
Dimensions [mm]
M30 x 1.5
Reverse polarity protection
no
Output function
normally open / closed; (selectable)
Electrical design
Factory setting: normally closed
Operating voltage [V]
20...250 AC/DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
