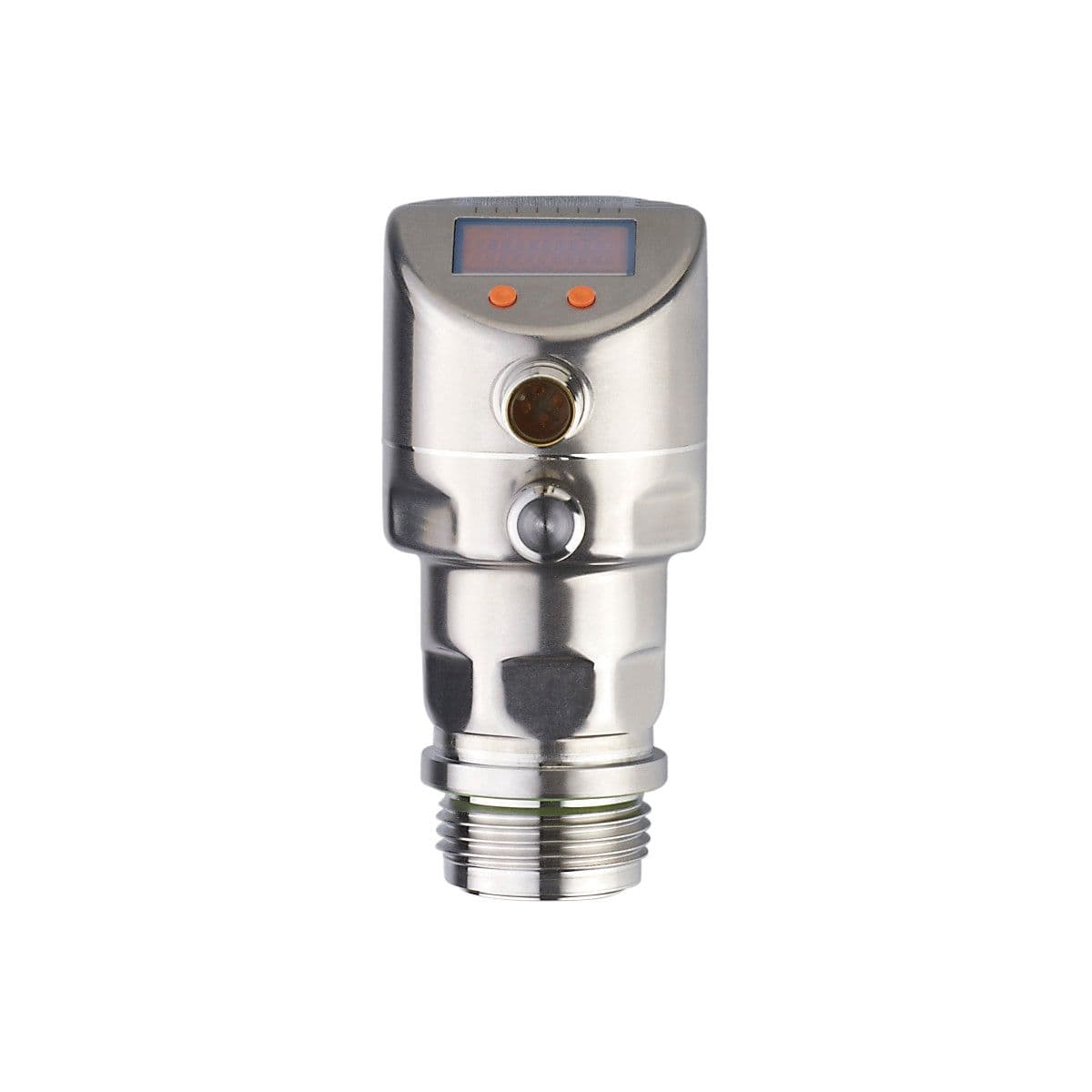

PI2789 ifm Electronic Electronic Components

Product Details

• Switching frequency DC [Hz]
  125
• Permanent current rating of switching output DC [mA]
  250
• Overload protection
  yes
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Type of short-circuit protection
  yes (non-latching)
• Short-circuit protection
  yes
• Analog current output [mA]
  4...20, invertible; (scalable)
• Number of analog outputs
  1
• Output function
  normally open / closed; (configurable)
• Number of digital outputs
  2
• Electrical design
  PNP/NPN
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Current consumption [mA]
  < 45
• Power-on delay time [s]
  0.5
• Vacuum resistance [mbar]
  -1000
• Operating voltage [V]
  18...32 DC
• Integrated watchdog
  yes
• Reverse polarity protection
  yes
• Protection class
  III
• Type of pressure
  relative pressure
Medium temperature [°C]
-25...125; (145 max. 1h)
Min. bursting pressure
30000 mbar 12044 inH2O 3000 kPa
Pressure rating
4000 mbar 1606 inH2O 400 kPa
Measuring range
-0.005...0.1 bar -5...100 mbar -2...40.16 inH2O -0.5...10 kPa
Output signal
switching signal; analog signal; IO-Link; (configurable)
Max. voltage drop switching output DC [V]
2
Total number of outputs
2
Min. insulation resistance [MΩ]
100; (500 V DC)
MAWP (for applications according to CRN) [bar]
4
No dead space
yes
Media
viscous media and liquids with suspended particles; liquids and gases
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Application
flush mountable for the food and beverage industry
System
gold-plated contacts
