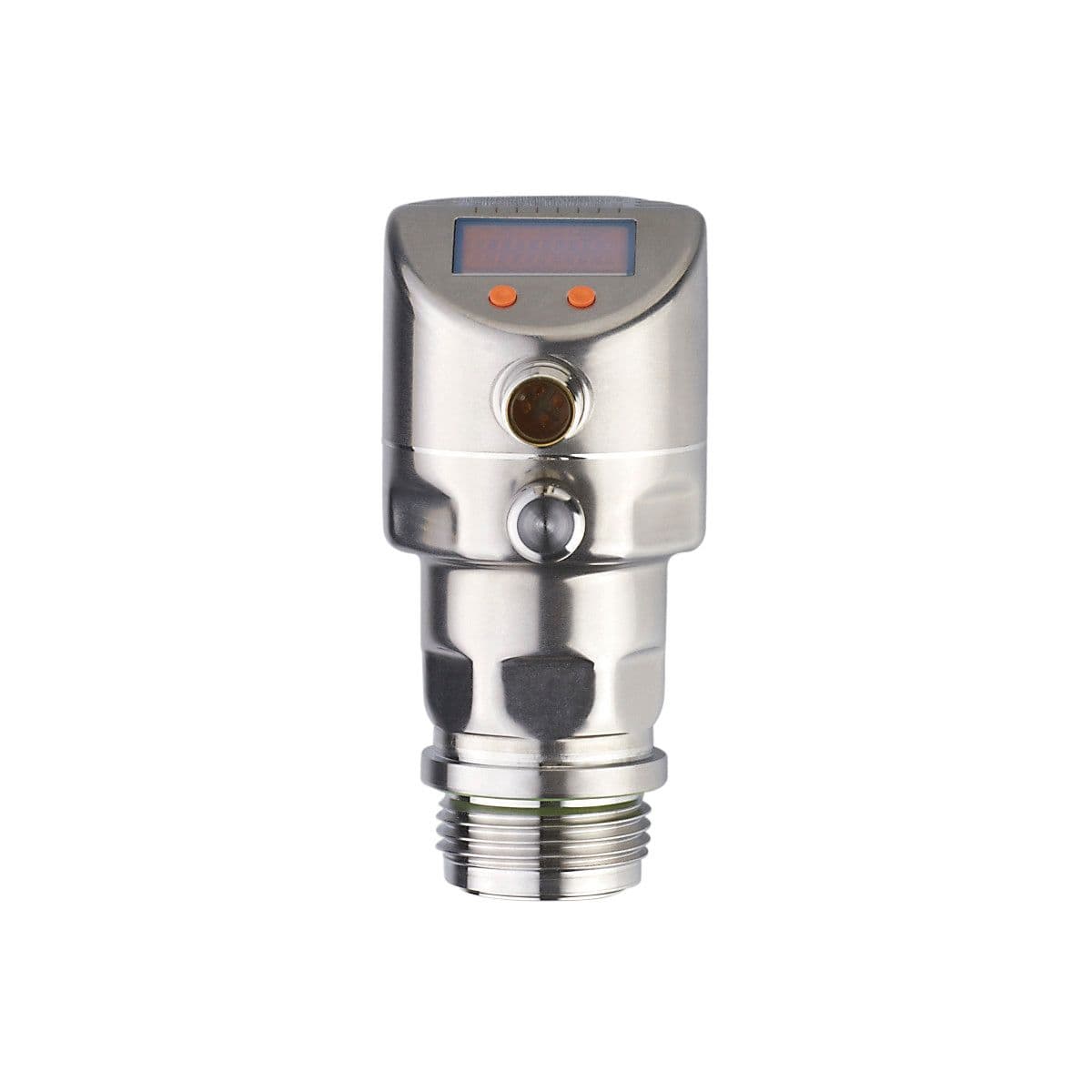

PI2794 ifm Electronic Electronic Components

Product Details

• Short-circuit protection
  yes
• Type of short-circuit protection
  yes (non-latching)
• Max. voltage drop switching output DC [V]
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Permanent current rating of switching output DC [mA]
  250
• Switching frequency DC [Hz]
  125
• Overload protection
  yes
• Analog current output [mA]
  4...20, invertible; (scalable)
• Electrical design
  PNP/NPN
• Total number of outputs
  2
• Number of analog outputs
  1
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Output function
  normally open / closed; (configurable)
• Current consumption [mA]
  < 45
• Number of digital outputs
  2
• Power-on delay time [s]
  0.5
• Protection class
  III
• Integrated watchdog
  yes
• Operating voltage [V]
  18...32 DC
• Type of pressure
  relative pressure; vacuum
No dead space
yes
Vacuum resistance [mbar]
-1000
MAWP (for applications according to CRN)
50 bar 725 psi 5 MPa
Reverse polarity protection
yes
Min. insulation resistance [MΩ]
100; (500 V DC)
Min. bursting pressure
150 bar 2175 psi 15 MPa
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Media
viscous media and liquids with suspended particles; liquids and gases
Pressure rating
50 bar 725 psi 5 Mpa
System
gold-plated contacts
Medium temperature [°C]
-25...125; (145 max. 1h)
Application
flush mountable for the food and beverage industry
Measuring range
-1...10 bar -14.5...145 psi -0.1...1 MPa
Output signal
switching signal; analog signal; IO-Link; (configurable)
