SBN232 ifm Electronic Electronic Components
Part#:SBN232
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

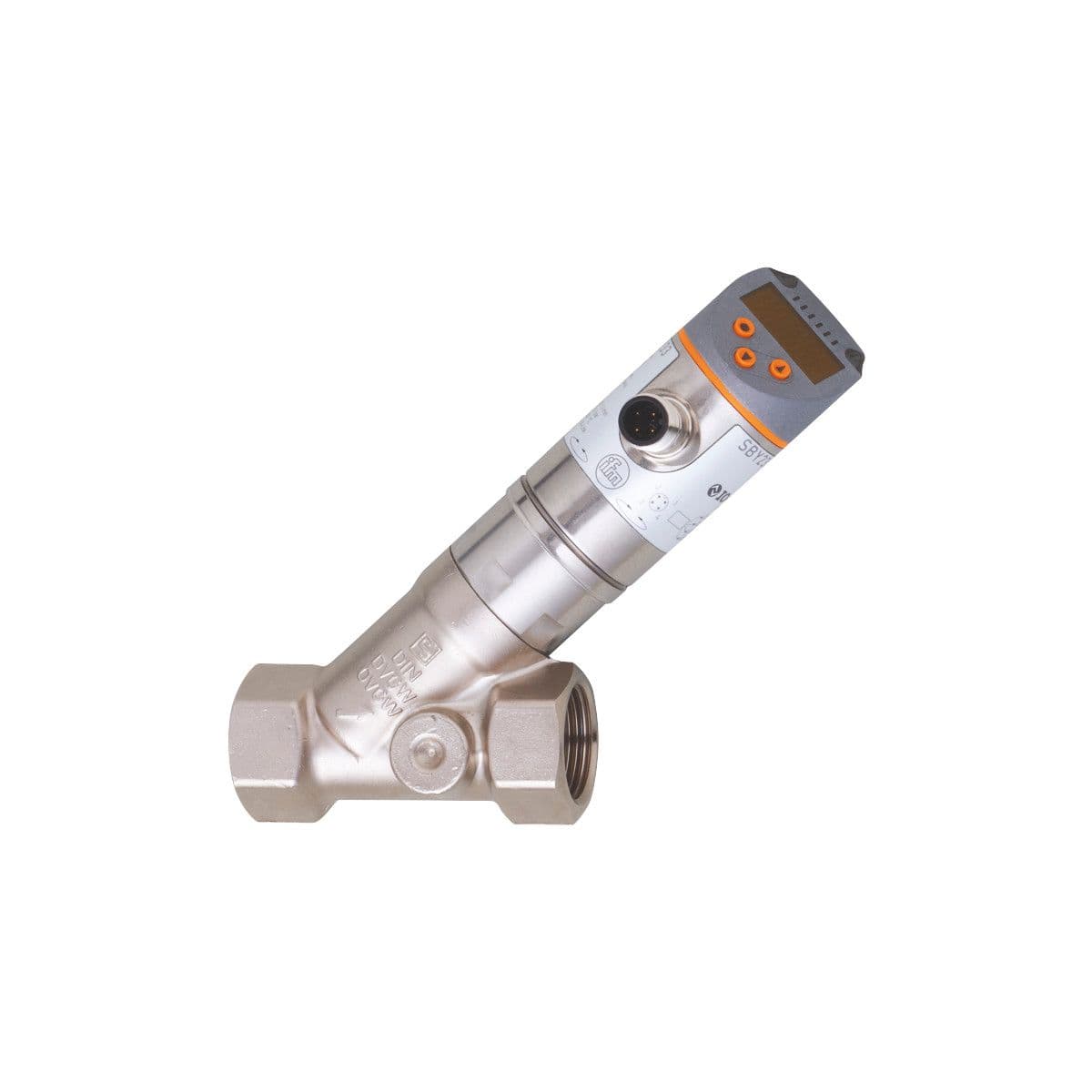

Flow meter with fast response and display, Precise detection of flow in pipes, Number of inputs and outputs: Number of digital outputs: 2; Number of analog outputs: 1, Measuring range: 5...240 gph 0.1...4 gpm, Process connection: threaded connection 3/4"
Product Details
- Frequency of the output [Hz] 0...10000
- Overload protection yes
- Analog current output [mA] 4...20
- Max. load [Ω] 500
- Short-circuit protection yes
- Switching cycles (mechanical) 10 million
- Permanent current rating of switching output DC [mA] 150; (per output 2 x 200 (...60 °C); 2 x 250 (...40 °C))
- Max. voltage drop switching output DC [V] 2
- Output function normally open / closed; (configurable)
- Number of digital outputs 2
- Output signal switching signal; analog signal; frequency signal; IO-Link; (configurable)
- Total number of outputs 2
- Protection class III
- Current consumption [mA] < 50
- Power-on delay time [s] < 3
- Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
- MAWP (for applications according to CRN) [bar] 40
- Application for industrial applications
- System gold-plated contacts
- Process connection threaded connection 3/4" NPT
- Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1
- Measuring range 5...240 gph 0.1...4 gpm
- Note on media oil 1 with viscosity: 10 mm²/s (40 °C) oil 2 with viscosity: 46 mm²/s (40 °C)
- Media water; glycol solutions; Coolants; oils
- Number of analog outputs 1
- Reverse polarity protection yes
- Pressure rating [Mpa] 4
- Pressure rating [bar] 40
- Medium temperature [°F] 14...212
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
