IA0032 ifm Electronic Electronic Components

Name: IA0032
Brand: ifm Electronic

Part#:IA0032

Category:Electronic Components

Product Lifecycle:Active

Product description

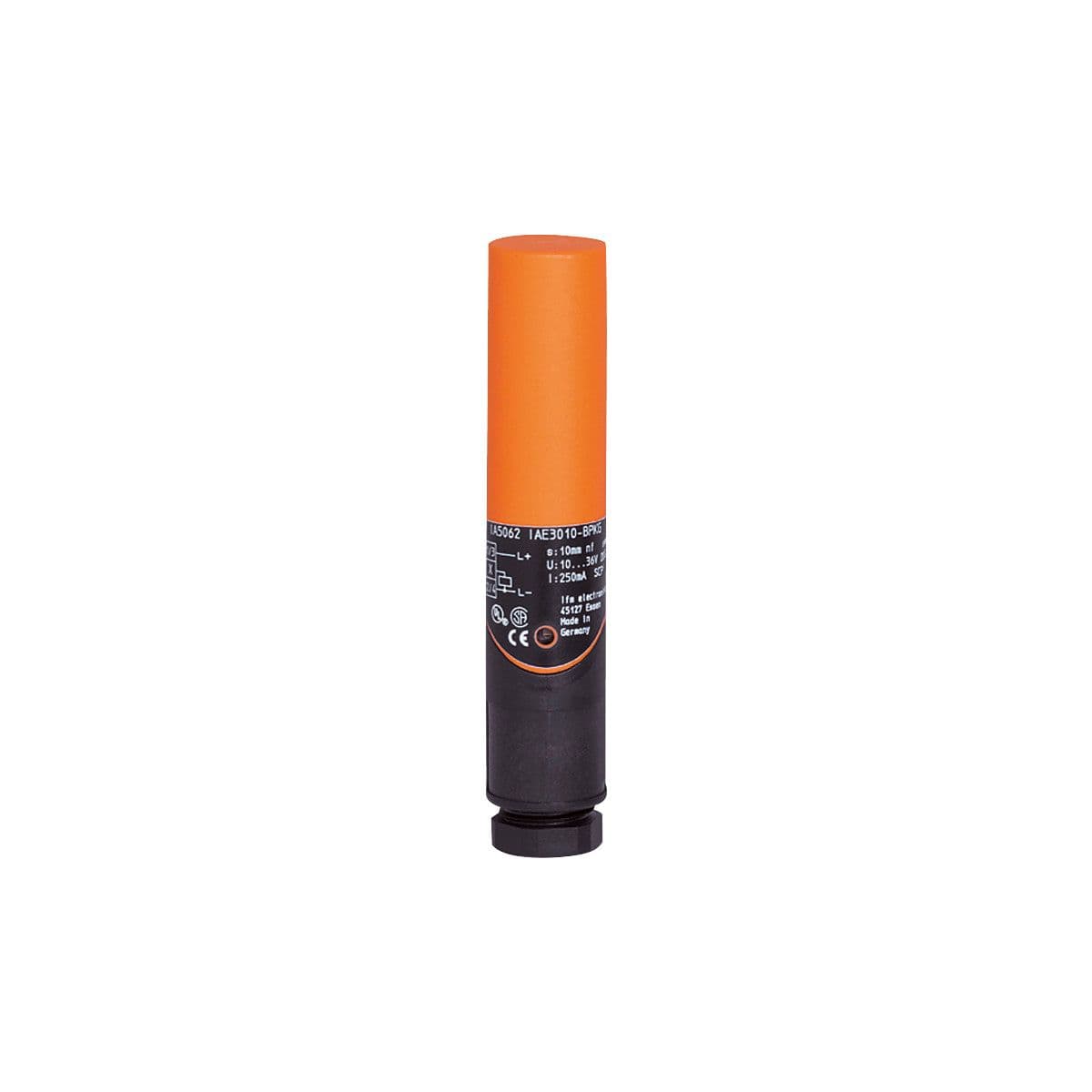

Inductive sensor, With combined AC/DC output stage, Output function: normally open / closed; (selectable), Sensing range [mm]: 10, Housing: tubular, Dimensions [mm]: Ø 20 / L = 92

Product Details

Short-circuit proof
no
Dimensions [mm]
Ø 20 / L = 92
Overload protection
no
Permanent current rating of switching output DC [mA]
100
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
70
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Sensing range [mm]
10
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Minimum load current [mA]
5
Max. voltage drop switching output AC [V]
6.5
Max. voltage drop switching output DC [V]
6
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Reverse polarity protection
no
Protection class
II
Operating voltage [V]
20...250 AC/DC
Housing
tubular
Output function
normally open / closed; (selectable)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IA0032 Related Documents

CAD_SAT_100_0007.ZIP-1631071286783.zip CAD_DWG_100_0007.ZIP-1631071286765.zip CAD_STP_100_0007.ZIP-1631071286776.zip CAD_DXF_100_0007.ZIP-1631071286768.zip PDF data sheet-1631071286773.pdf

Manufacturer warranty
