IA0017 ifm Electronic Electronic Components

Name: IA0017
Brand: ifm Electronic

Part#:IA0017

Category:Electronic Components

Product Lifecycle:Active

Product description

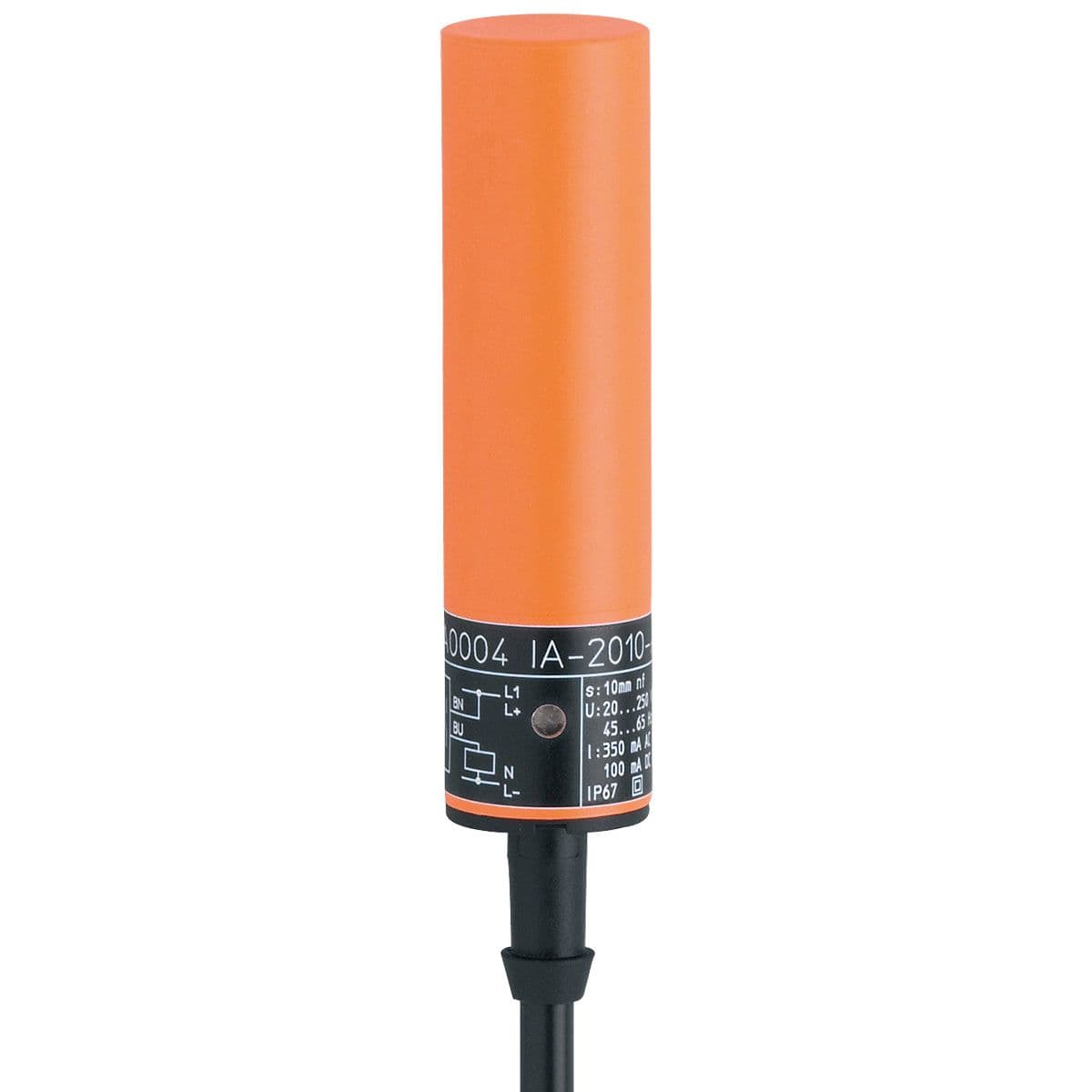

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 10, Housing: tubular, Dimensions [mm]: Ø 20 / L = 77

Product Details

Switching frequency AC [Hz]
25
Dimensions [mm]
Ø 20 / L = 77
Overload protection
no
Short-circuit proof
no
Switching frequency DC [Hz]
70
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Permanent current rating of switching output DC [mA]
100
Minimum load current [mA]
5
Max. voltage drop switching output DC [V]
6
Reverse polarity protection
no
Max. voltage drop switching output AC [V]
6.5
Protection class
II
Operating voltage [V]
20...250 AC/DC
Housing
tubular
Sensing range [mm]
10
Output function
normally open

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IA0017 Related Documents

CAD_SAT_100_0005.ZIP-1631071497773.zip CAD_DWG_100_0005.ZIP-1631071497769.zip CAD_STP_100_0005.ZIP-1631071497771.zip PDF data sheet-1631071497762.pdf CAD_DXF_100_0005.ZIP-1631071497774.zip
