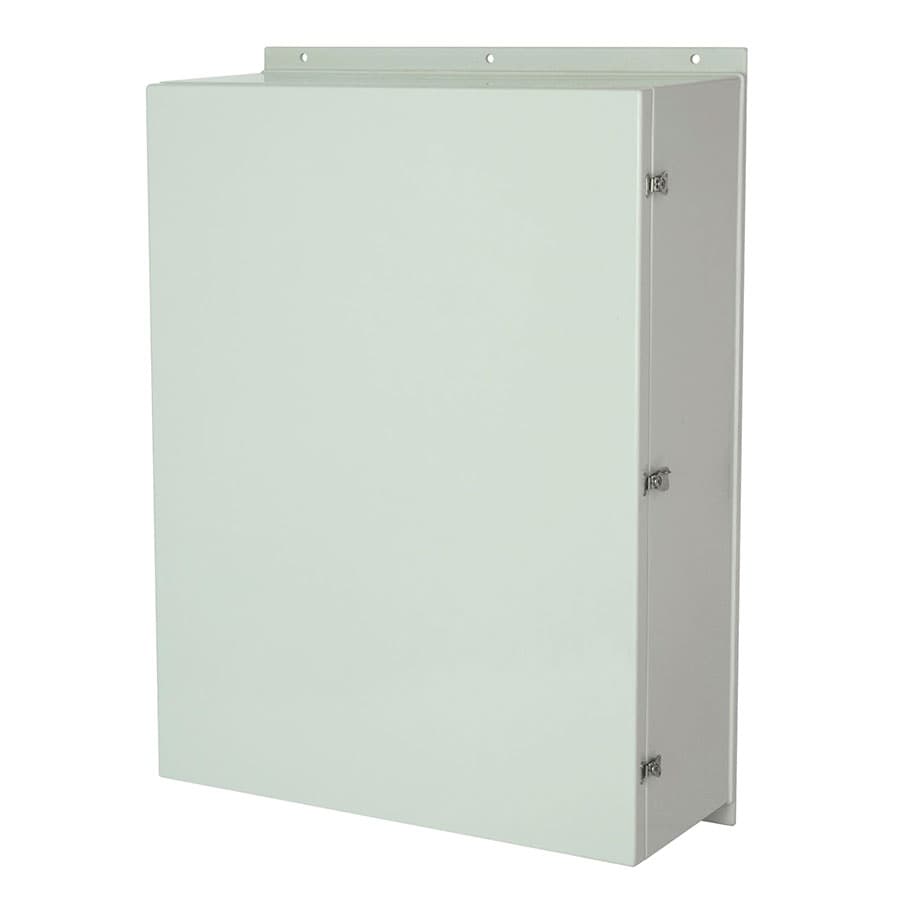

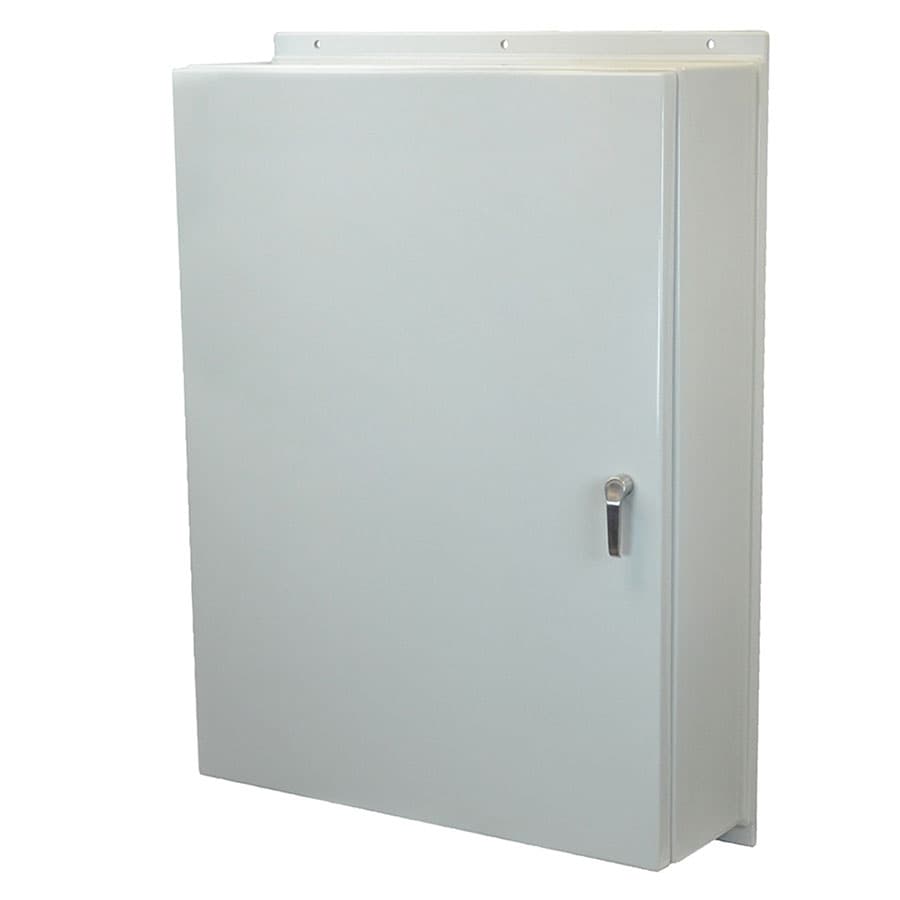

AM483612L3PT Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  36.25 in
• Height
  48.25 in
• Depth
  10.14 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Carton Weight:
  95 lbs
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Color:
  Gray (RAL 7035)
• Additional Materials:
  316 stainless steel external 3-point latching handle, 316 stainless steel external hardware (hinges/latches/fasteners), EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware
• Material:
  ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
• Country of Origin:
  United States of America
• UNSPSC:
  39121324
• Carton Quantity:
  1
Standards:
UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Mounting Description:
Molded flange
UPC:
85339994848
Cover Type:
Opaque
Brand:
Empire Series
Closure Type:
3-Point Handle
Height:
48.25 in
Enclosure Type:
Wall Cabinets
Depth:
10.14 in
Usable Depth:
10.27 in
Volume:
20429 cu. in.
Width:
36.25 in

Related documents AM483612L3PT Specs
