SCE-16EL2006LP Saginaw Control Electrical Enclosures

Name: SCE-16EL2006LP
Brand: Saginaw Control

SCE-16EL2006LP on Advantage Electric Supply

Part#:SCE-16EL2006LP

Manufacturer:Saginaw Control

Category:Electrical Enclosures

Product Lifecycle:Active

In-stock parts: 1

Sep 30, 2024

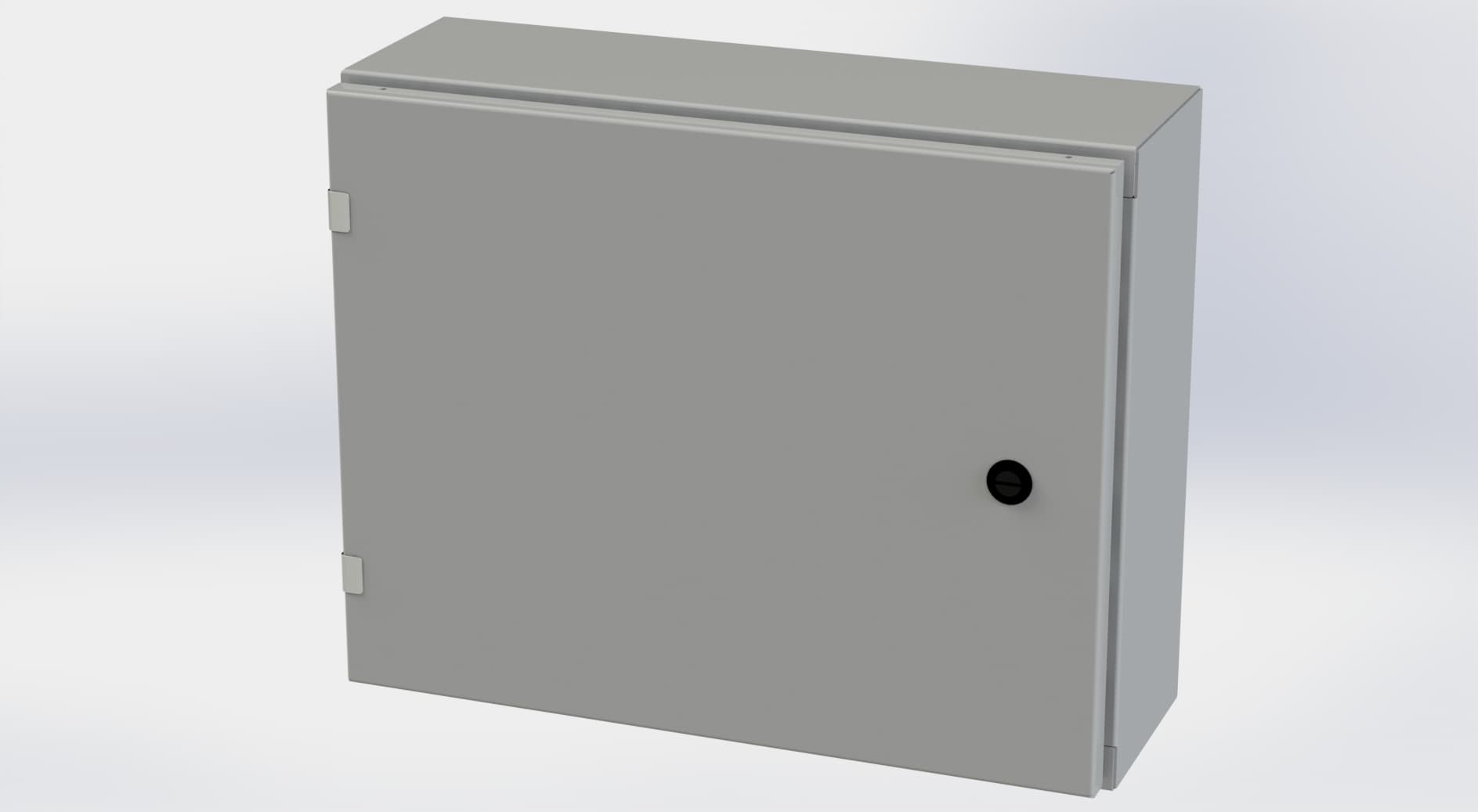

EL Enclosure, Height:16.00", Width:20.00", Depth:6.00", ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.

About the manufacturer: Saginaw Control is one of the manufacturers that offers Electrical Enclosures that you can order at Advantage Electric Supply site. For over five decades, Saginaw Control & Engineering has been a trusted name in the electrical sector, offering a wide range of standard and customized electrical enclosures. Situated in Saginaw, Michigan, our expansive 310,000 square feet manufacturing plant is where our products are expertly crafted.

Check out the SCE-16EL2006LP Saginaw Control price in the box on the right side or send a quick quote.

Product Details

Width
20.00"
Depth
6.00"
Height
16.00"
Construction
0.075 In. carbon steel. Seams continuously welded and ground smooth. Flange trough collar around all sides of door opening. Pour in place oil & water resistant gasket Collar studs 3/8-16 provided for mounting optional panels. Concealed hinges. Removable a
Industry Standards
NEMA Type 3R, 4, 12 and Type 13; UL Listed Type 3R, 4 and 12; CSA Type 3R, 4 and 12; IEC 60529; IP 66
Finish
ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
