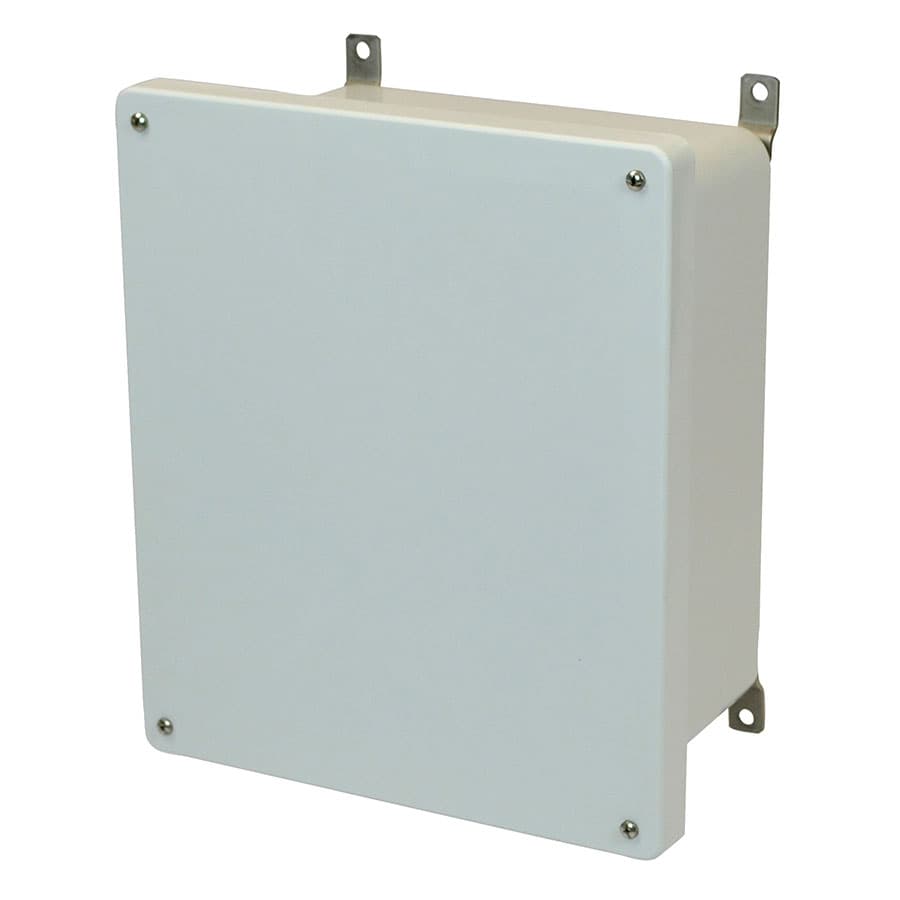

AM1426 Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  12.26 in
• Height
  14.14 in
• Depth
  6.01 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Color:
  Gray (RAL 7035)
• Country of Origin:
  United States of America
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• Material:
  ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
• Carton Weight:
  9 lbs
• Volume:
  1062 cu. in.
• Usable Depth:
  5.71 in
UNSPSC:
39121324
Carton Quantity:
1
Brand:
AM Series
Standards:
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters) 2. RoHS directive
Width:
12.26 in
Depth:
6.01 in
UPC:
85339914266
Closure Type:
4-Screw Lift-Off
Enclosure Type:
JIC Size
Mounting Description:
Stainless steel feet fastened to back side brass inserts
Cover Type:
Opaque
Height:
14.14 in
