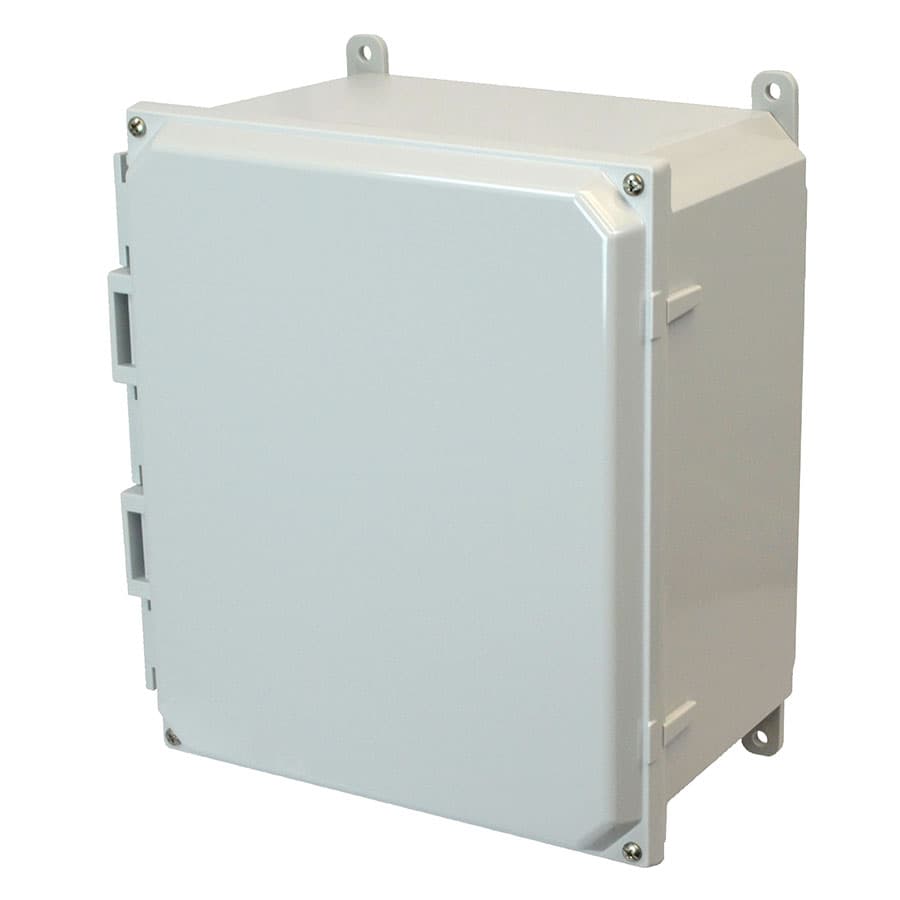

AMP1426 Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  12.07 in
• Height
  13.85 in
• Depth
  5.94 in
• NEMA Rating
  4X
• Material
  Polycarbonate
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Material:
  Polycarbonate box and cover
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), Polycarbonate mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel o
• Patents:
  U.S. Patent No. 7,572,975
• Color:
  Gray (RAL 7035)
• UNSPSC:
  39121324
• Country of Origin:
  United States of America
• Carton Weight:
  7 lbs
Carton Quantity:
1
UPC:
85339993452
Depth:
5.94 in
Brand:
POLYLINE®
Volume:
1161 cu. in.
Standards:
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters) 2. RoHS directive
Mounting Description:
Nonmetal feet fastened to back side brass inserts
Height:
13.85 in
Closure Type:
4-Screw Lift-Off
Usable Depth:
5.99 in
Enclosure Type:
JIC Size
Width:
12.07 in
Cover Type:
Opaque
