AM1426RW Allied Moulded Products Electrical Enclosures
Part#:AM1426RW
Manufacturer:Allied Moulded Products
Product Lifecycle:Active
Get a quick Quote!

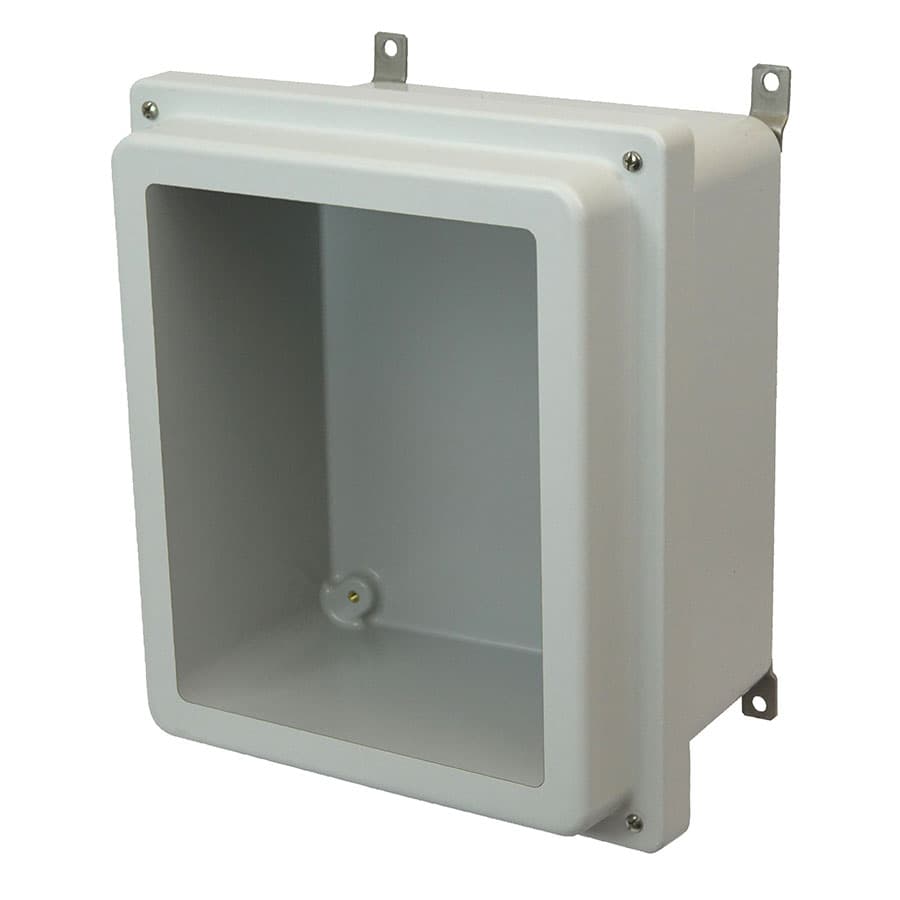

14"x12"x6" AM-R Series fiberglass wall mount enclosure assembly with raised 4-screw lift-off window cover
About the manufacturer: Allied Moulded Products is one of the manufacturers that offers Electrical Enclosures that you can order at Advantage Electric Supply site. Allied Moulded offers a wide range of products for residential and manufactured housing, including fiberglass range/dryer receptacle boxes, floor boxes, lampholders, luminaires, and more. These products are designed to meet the needs of both electrical professionals and DIY enthusiasts.
Check out the AM1426RW Allied Moulded Products price in the box on the right side or send a quick quote.
Product Details
- UL Standard 508A
- UL CCN NITW
- UL File No. E120175
- Width 12.26 in
- Height 14.14 in
- Depth 6.01 in
- NEMA Rating 4X
- Material Fiberglass
- Color Gray
- Type Wallmount
- Door Qty 1
- Application: Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
- Features: Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
- Additional Materials: 316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
- Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
- UNSPSC: 39121324
- Country of Origin: United States of America
- Color: Gray (RAL 7035) with clear window
- Carton Weight: 10 lbs
- Standards: UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
- Brand: AM-R Series
- Carton Quantity: 1
- UPC: 85339914563
- Volume: 1062 cu. in.
- Usable Depth: 7.1 in
- Depth: 6.01 in
- Enclosure Type: JIC Size
- Mounting Description: Stainless steel feet fastened to back side brass inserts
- Closure Type: 4-Screw Lift-Off
- Width: 12.26 in
- Height: 14.14 in
- Cover Type: Opaque with Viewing Window
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents AM1426RW Specs
