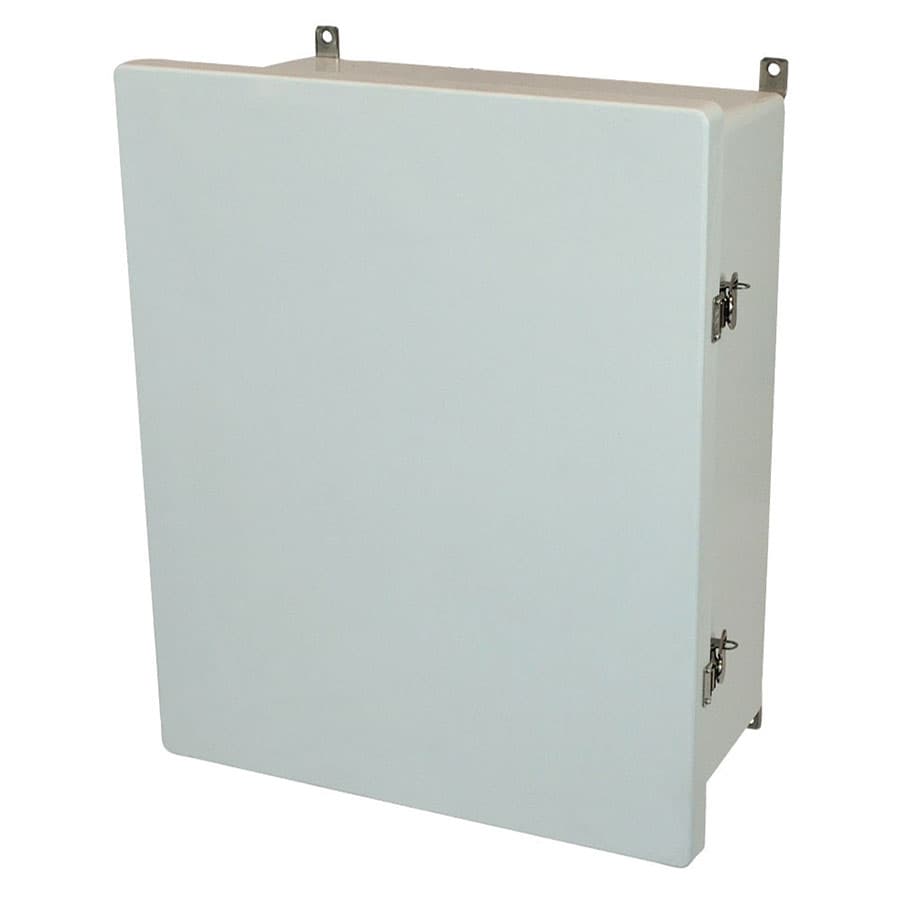

AM2068HW Allied Moulded Products Electrical Enclosures

Product Details

• UL Standard
  508A
• UL CCN
  NITW
• UL File No.
  E120175
• Width
  16 in
• Height
  20 in
• Depth
  8.01 in
• NEMA Rating
  4X
• Material
  Fiberglass
• Color
  Gray
• Type
  Wallmount
• Door Qty
  1
• Additional Materials:
  316 stainless steel external hardware (hinges/latches/fasteners), 316 stainless steel mounting brackets, Plated carbon steel internal hardware, Brass inserts, Polyurethane (FIP) Formed-In-Place gasket system
• Features:
  Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous chann
• Material:
  ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and cover with bonded clear polycarbonate window
• Color:
  Gray (RAL 7035) with clear window
• Application:
  Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
• Country of Origin:
  United States of America
• UNSPSC:
  39121324
• Carton Weight:
  18 lbs
• Carton Quantity:
  1
Brand:
AM Series
UPC:
85339920847
Usable Depth:
7.58 in
Volume:
2602 cu. in.
Standards:
UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175Complies with: 1. EN / IEC 60204-1 and 60529 Type IP66 2. RoHS directive
Depth:
8.01 in
Height:
20 in
Mounting Description:
Stainless steel feet fastened to back side brass inserts
Width:
16 in
Closure Type:
2-Screw
Cover Type:
Opaque with Viewing Window
Enclosure Type:
JIC Size

Related documents AM2068HW Specs
