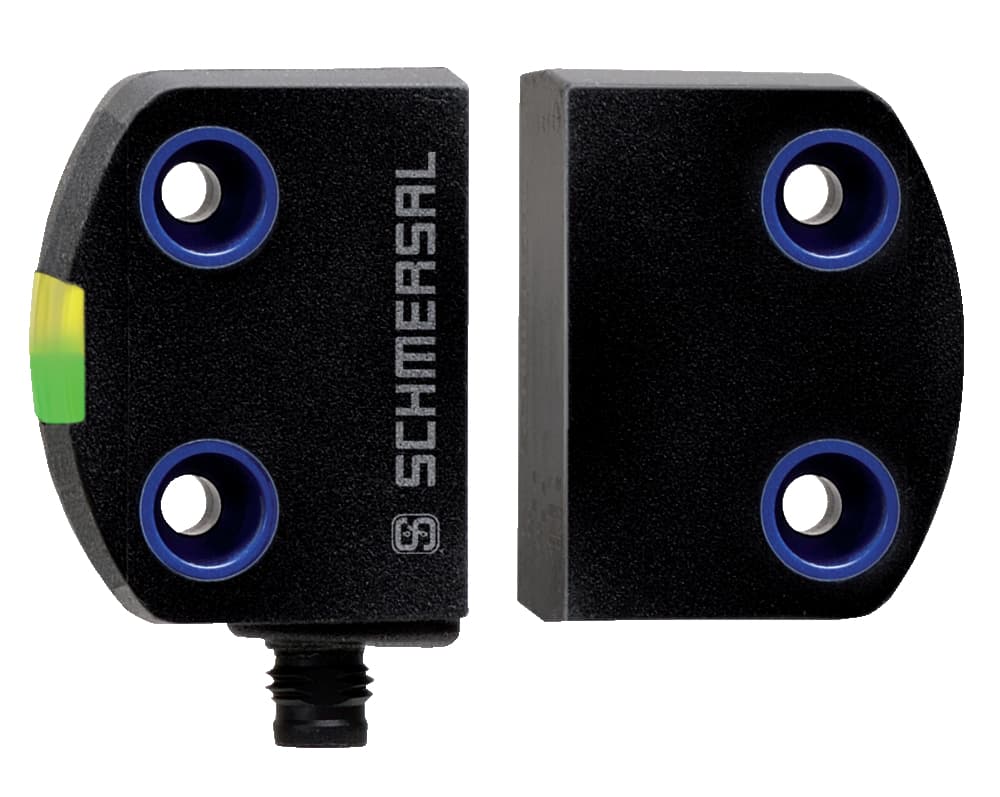

RSS260-I1-D-ST Schmersal Safety Switches

Product Details

• Interfering radiation
  IEC 61000-6-4
• EMC rating
  IEC 60947-3
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Current, Utilisation category DC12
  0.05 A
• Current leakage Ir
  0.5 mA
• Voltage, Utilisation category DC12
  24 VDC
• Voltage drop Ud, maximum
  2 V
• Versions
  p-type
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Switching frequency, approx.
  1 Hz
• Operating current
  600 mA
• Rated operating voltage, maximum
  26.4 VDC
• Rated operating voltage, minimum
  20.4 VDC
• Degree of pollution to VDE 0100
  3
• Voltage type
  DC (direct current)
• No-load supply current I0
  100 mA
• Rated operating voltage
  24 VDC -15% / +10%
• Overvoltage category
  III
• Rated impulse withstand voltage Uimp
  0.8 kV
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Height of sensor
18 mm
Storage and transport temperature, maximum
+85 °C
Ambient temperature, minimum
-25 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+65 °C
Width of sensor
39.2 mm
Length of sensor
29.5 mm
Note
The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
Ensured switch distance OFF Sar, lateral
15 mm
Ensured switching distance ON, side
6 mm
Ensured switching distance ON, front
10 mm
Terminal Connector
Connector M8
Ensured switching distance OFF, front
18 mm
Switch distance Sn
front 12 mm, lateral 9 mm
Mounting
A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
Repeat accuracy R R
0.5 mm
Note (Repeat accuracy R)
Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance
Number of fail-safe digital outputs
2
Hysteresis (Switch distance), maximum
2 mm
Actuating panels
lateral, front side
Number of LEDs
3
Number of semi-conductor outputs with signaling function
1
Integral System Diagnostics, status
Yes
Safety functions
Yes
Diagnostic output
Yes
Time to readiness, maximum
2,000 ms
Reaction time, maximum
100 ms
Short-circuit recognition
Yes
Duration of risk, maximum
200 ms
Short circuit detection
Yes
Cascadable
Yes
Gross weight
60 g
Coding level according to ISO 14119
High
Sensor topology
Sensor for series wiring
Active principle
RFID
Active area
lateral, front
Installation conditions (mechanical)
not flush
Enclosure material
Plastic, thermoplastic, self-extinguishing
Standards
IEC 60947-5-3
general information
Individual coding
Housing construction form
Block

Related documents RSS260-I1-D-ST Specs
