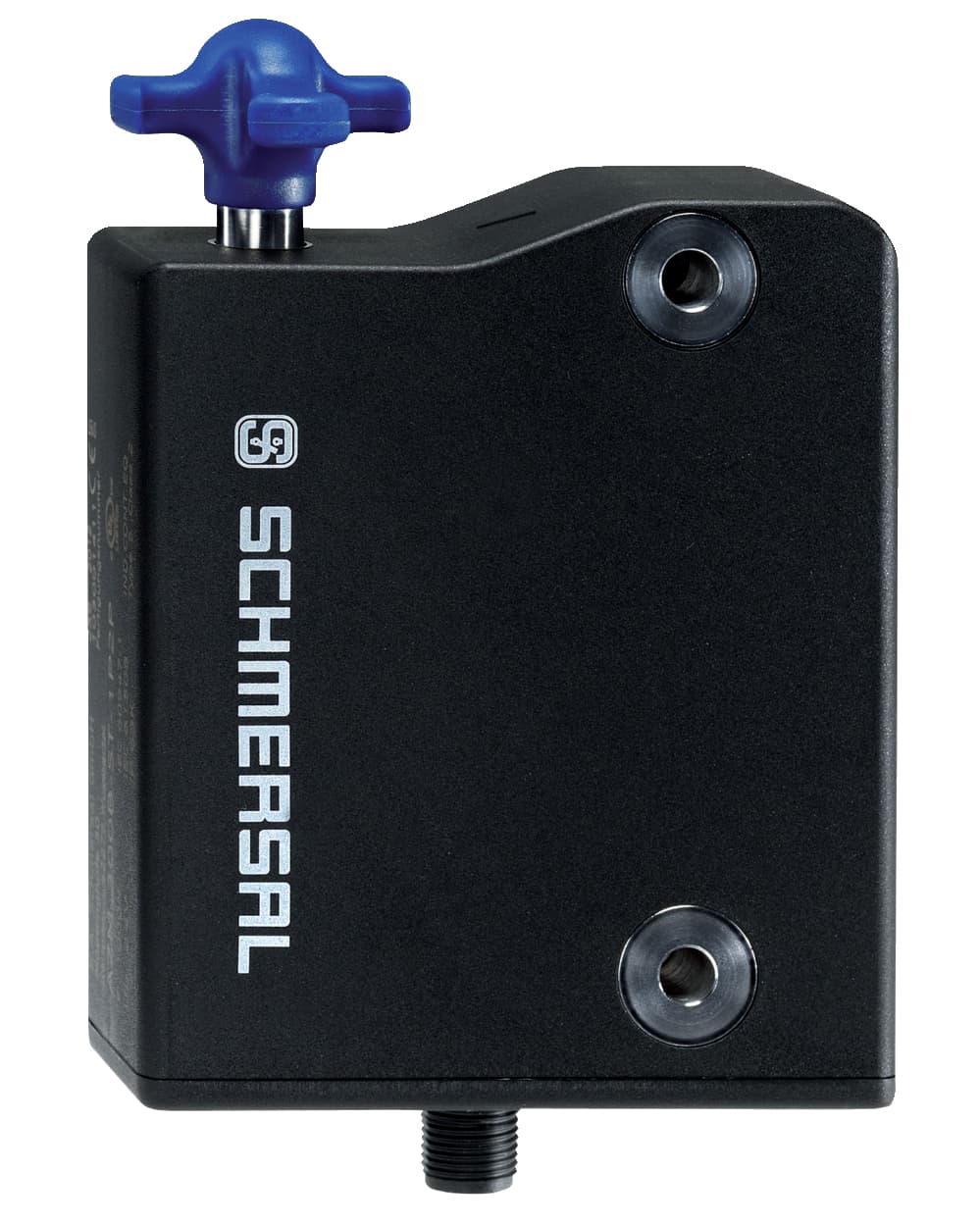

AZM300B-I2-ST-1P2P-A Schmersal Safety Switches

Product Details

• Voltage, Utilisation category DC12
  24 VDC
• Voltage drop Ud, maximum
  4 V
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC13
  24 VDC
• Test pulse interval, typical
  1000 ms
• Versions
  short-circuit proof, p-type
• Current, Utilisation category DC12
  0.05 A
• Current leakage Ir
  0.5 mA
• Classification ZVEI CB24I, Source
  C2
• Test pulse interval, minimum
  40 ms
• Classification ZVEI CB24I, Sink
  C1, C2
• Duty cycle solenoid
  100 %
• Test pulse duration, maximum
  0.5 ms
• Current consumption at 24V
  5 mA
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Switching frequency, maximum
  0.5 Hz
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• Operating voltage, maximum
  26.4 VDC
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Operating voltage, minimum
  20.4 VDC
Notes (Power supply, general)
stabilised PELV power supply
External wiring and device fuse rating
2 A gG
No-load supply current I0
100 mA
Current consumption with solenoid ON, average
200 mA
Overvoltage category
III
Degree of pollution to IEC/EN 60664-1
3
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Protection rating
III
Note (Relative humidity)
non-condensing, non-icing
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
93 %
Storage and transport temperature, maximum
+90 °C
Ambient temperature, minimum
+0 °C
Ambient temperature, maximum
+60 °C
Storage and transport temperature, minimum
-10 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Height of sensor
35 mm
Width of sensor
87.5 mm
Length of sensor
120 mm
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Ensured switch distance ON Sao
1 mm
Terminal Connector
Connector M12, 8-pole, A-coded
Ensured switch distance OFF Sar
20 mm
Switch distance
2 mm
Tightening torque for the fixing screws, maximum
7 Nm
Tightening torque of the fixing screws, minimum
6 Nm
Type of the fixing screws
2x M6
Latching force, adjustable, position 2
50 N
Latching force, adjustable, position 1
25 N
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Clamping force, maximum Fmax
1,500 N
Mechanical life, minimum
1,000,000 Operations
Number of fail-safe digital outputs
2
Integral System Diagnostics, status
Yes
Short-circuit recognition
Yes
Safety functions
Yes
Manual release
Yes
Short circuit detection
Yes
Clamping force in accordance with ISO14119 Fzh
1,150 N
Angular offset between interlocking device and actuator, maximum
2 °
Series-wiring
Yes
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
Active principle
RFID
Transmit power, maximum
-6 dB/m
Latching
Yes
Frequency band RFID
125 kHz
Actuator monitored
Yes
Power to lock
Yes
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Duration of risk, maximum
200 ms
Time to readiness, maximum
5,000 ms
general information
Individual coding, multiple teaching
Gross weight
550 g
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Coding level according to ISO 14119
High
