35680604 SAB VFD Cables

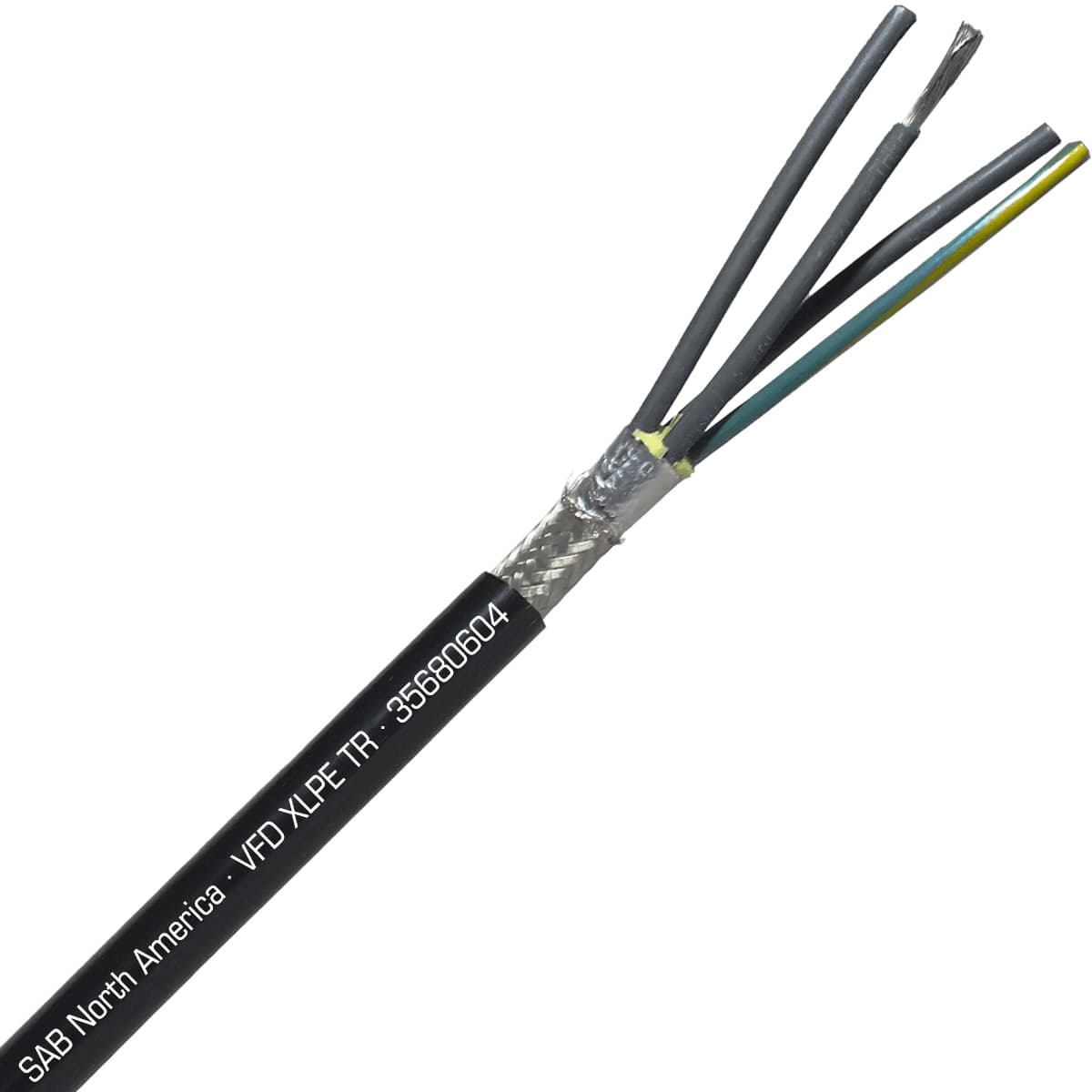

SAB 35680604 VFD XLPE TR - 6 AWG/4c, oil resistant XLPE insulated VFD cable with foil and braid shield, UL, CSA, WTTC, TC-ER, CE, RoHS
SAB

Part#:35680604

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

VFD XLPE TR - 6 AWG/4c, oil resistant XLPE insulated VFD cable with foil and braid shield, UL, CSA, WTTC, TC-ER, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers VFD Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 35680604 SAB price in the box on the right side or send a quick quote.

Product Details

  • Weight
    333.84 g
  • Application
    Motor & Drives
  • Submersible
    NO
  • RoHS
    YES
  • Movement Type
    Stationary/Flexible
  • Cable configuration
    6 AWG/4c
  • UOM
    ft
  • Chemical Resistant
    NO
  • UV Resistant
    YES
  • Insulation type
    XLPE
  • CE Certification
    YES
  • Oil Resistant
    Yes
  • Gauge
    6 AWG
  • Stranding type
    tinned copper strands, class K
  • Color
    Black
  • UL Certification
    YES
  • Halogen Free
    NO
  • Shielded
    Yes
  • Voltage
    1000
  • CSA Certification
    YES
  • Approvals
    UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS
  • Direct Burial
    YES
  • Number of conductors
    4
  • Temperature range
    -40°C to +105°C
  • Outside diameter (OD)
    0.968 in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35680604 Description

SAB 35680604 VFD Cable is part of VFD XLPE TR product family, and is designed for Motor & Drives applications. This cable is 6 AWG with 4 conductors, and shielded 6 AWG/4c cable configuration. Featuring Black color jacket, XLPE insulation, and tinned copper strands, class K stranding. It has 0.968 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Motor & Drives cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Motor & Drives applications.

Related documents 35680604 Specs

35680604 VFD_XLPE_TR.pdf
