35680403 SAB VFD Cables

Name: 35680403
Brand: SAB

Part#:35680403

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

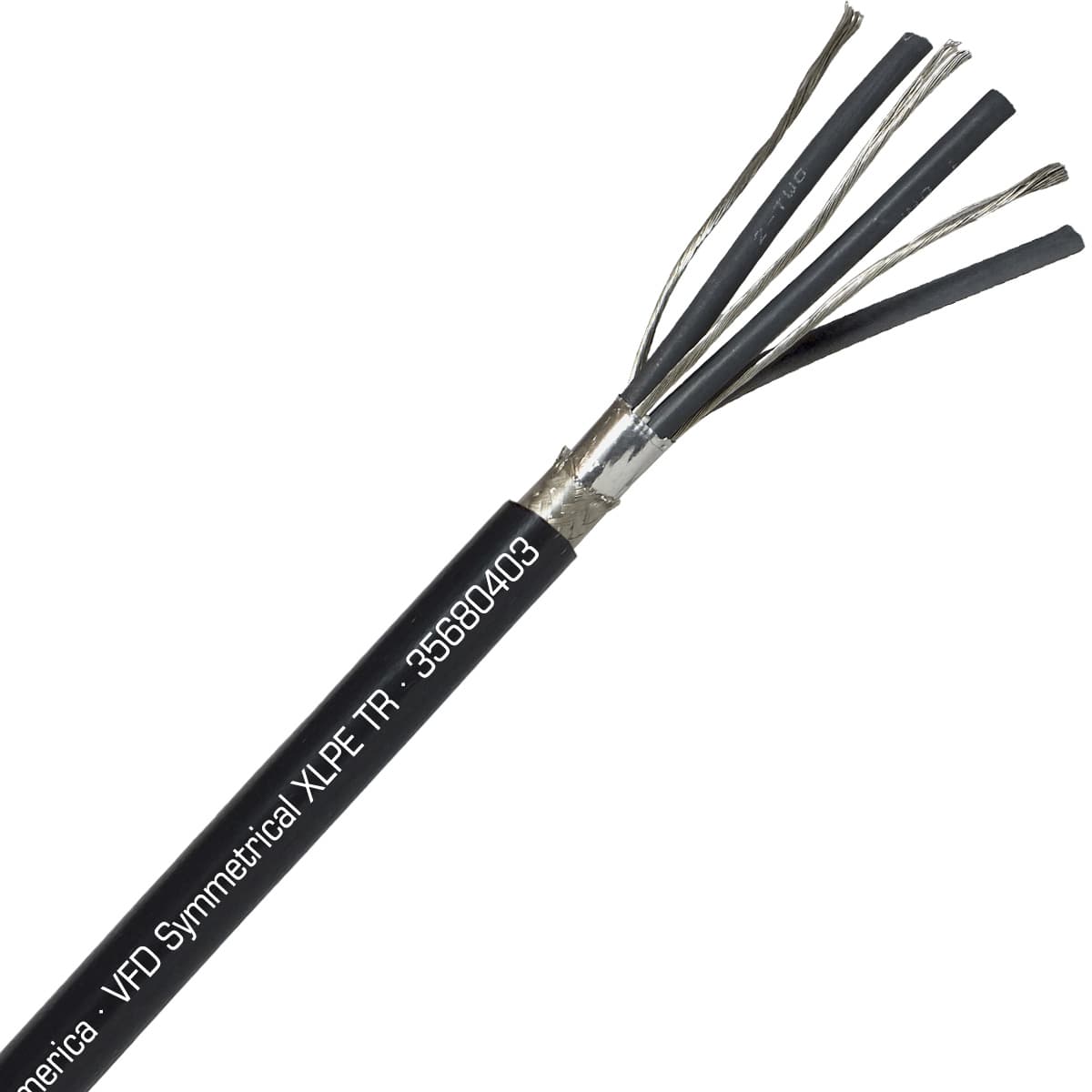

VFD Symmetrical XLPE TR - 4 AWG/3c, oil resistant shielded VFD cable with 12/3 ground, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers VFD Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 35680403 SAB price in the box on the right side or send a quick quote.

Product Details

Color
Black
Weight
397.80 g
Chemical Resistant
NO
Oil Resistant
Yes
UV Resistant
YES
Halogen Free
NO
Submersible
NO
Direct Burial
YES
Movement Type
Stationary/Flexible
Application
Motor & Drives
Gauge
4 AWG
Number of conductors
3
Cable configuration
4 AWG/3c
Stranding type
tinned copper strands, class K
Insulation type
XLPE
Shielded
Yes
Voltage
1000
Approvals
UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS
RoHS
YES
Temperature range
-40°C to +105°C

Outside diameter (OD)

1.062 in

UOM

CSA Certification

YES

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

35680403 Description

SAB 35680403 VFD Cable is part of VFD Symmetrical XLPE TR product family, and is designed for Motor & Drives applications. This cable is 4 AWG with 3 conductors, and shielded 4 AWG/3c cable configuration. Featuring Black color jacket, XLPE insulation, and tinned copper strands, class K stranding. It has 1.062 in OD, constructed to support Stationary/Flexible movement type, and rated for 1000 volts. This Motor & Drives cable can operate in -40°C to +105°C temperature range, it is oil resistant, UV resistand, rated for direct burial, and has following approvals: UL TC-ER, UL WTTC, c(UL) CIC-TC, CSA AWM, CE, RoHS. This cable is an excellent choice for Motor & Drives applications.
