X1011974 Mersen Fuse Holders
Part#:X1011974
Alt. Part#:0782001311438
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

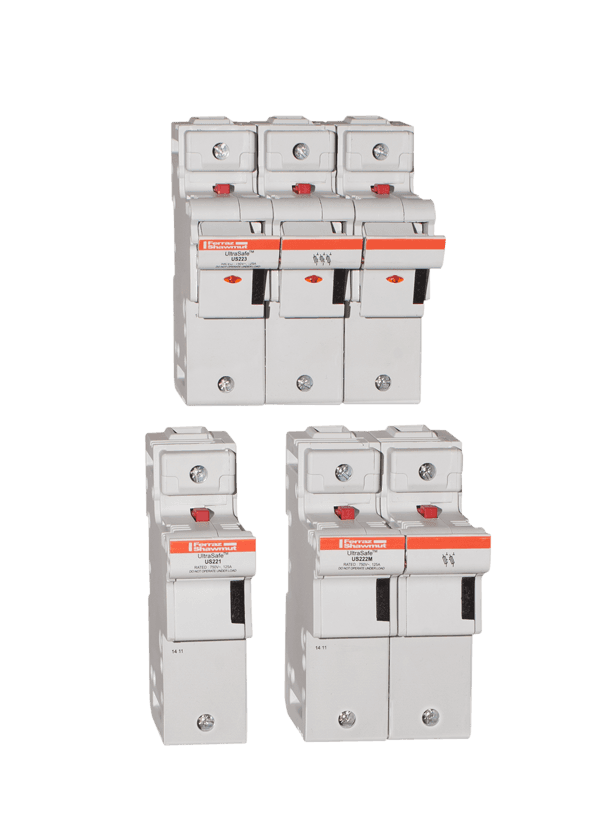

X1011974 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 3-Pole Visual Indicator 2x Microswitch Pressure Plate IP20
Product Details
- Number of Poles 3 Pole
- Current Rating 125 A
- Weight 675.552 g
- Voltage 800 VAC
- Sell Pack Height 3.35 in
- Sell Pack Width 5.12 in
- Sell Pack Weight 2.976 lb
- Sell Pack Length 9.06 in
- Sell Pack Quantity 2 EACH
- Product Height 5.02 in
- Product Length 3.01 in
- Product Weight 1.488 lb
- Product Width 4.13 in
- Rated Impulse Withstand Voltage 8
- Max Fuse Rating 125 A
- Comments Wiring tool : PZ2 or flat 6.5x1.2mm screw drivers recommended (max. diameter 7mm)
- Rated Insulation Voltage 750 V
- Installation Mounting DIN rail acc. EN 60715
- Conventional Free Air thermal Current With Fuse-Links Ith 125 A
- Torque Rating 35.4 lb-in
- Fuse Installation Method Clip-in
- Number of Poles 3-Pole
- Body/Insulating Material Polyamide
- Indication System Type Visual Indicator Microswitch
- Connection/Terminal Type Clip
- Indication System Yes
- Wiring range 1/0 - #14
- Connection/Terminal Material Tin-Plated Copper
- Catalogue No. US223M2I
- Short Circuit Current Rating (SCCR) 100 kA
- Frequency 50...60 Hz
- Ampere Rating 125
- ROHS Compliant Yes
- Rated voltage DC UL 1000 V
- Rated voltage AC IEC 690 V
- Design Details triple pole
- Fuse Size 22x58
- Rated voltage DC IEC 690 V
- Rated voltage AC UL 800 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of X1011974 on Advantage Electric Supply is $528.70. Order now.
About the product
X1011974 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 3-Pole Visual Indicator 2x Microswitch Pressure Plate IP20 | The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders.
Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.
Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication.
UltraSafe™ range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator & microswitch
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 750VAC for protection of motors,
*transformers, low voltage distribution, control circuits
*Non-load operation
