USGM1HEL Mersen Fuse Holders
Part#:USGM1HEL
Alt. Part#:782001437985
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

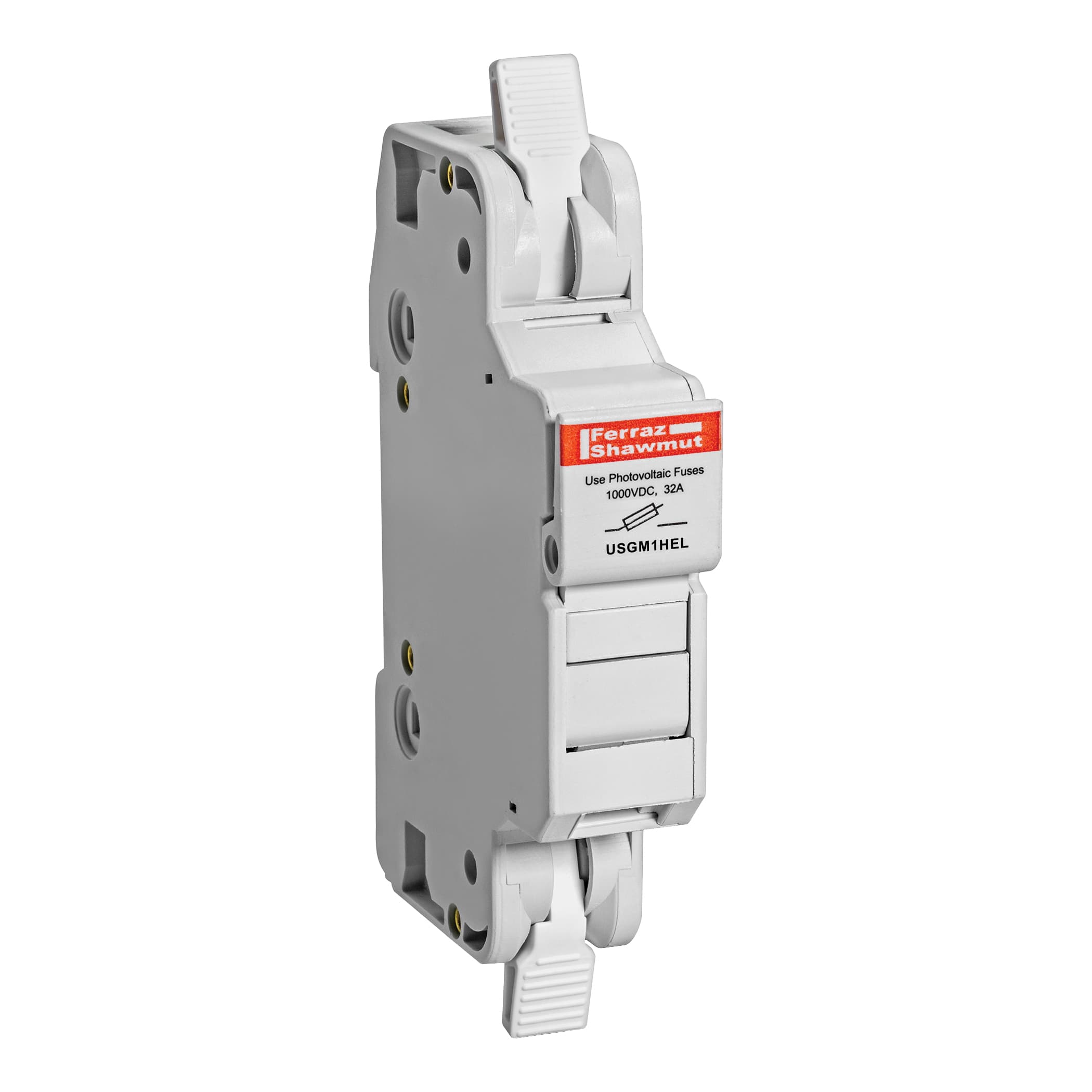

USGM1HEL Mersen - Fuse Holder UltraSafe™ 1000VDC Midget 32A 1-Pole Cage Clamp IP65
Product Details
- Number of Poles 1 Pole
- Current Rating 32 A
- Weight 63.56 g
- Voltage 1000 VDC
- Sell Pack Length 8.75 in
- Sell Pack Height 2.75 in
- Sell Pack Width 4.5 in
- Sell Pack Quantity 12 Each
- Product Height 2.17 in
- Installation Mounting DIN Rail
- Product Length 4.13 in
- Product Width 0.68 in
- Max Fuse Rating 30 A
- Product Weight 0.14 lb
- Fuse Installation Method Clip-in
- Rated voltage AC UL 0 V
- Body/Insulating Material Polyamide
- ROHS Compliant Yes
- Rated voltage DC UL 1000 V
- Fuse Type/Class Midget
- Short Circuit Current Rating (SCCR) 200
- Fuse Class Midget
- Number of Poles 1-pole
- Ampere Rating 32 A
- Wiring range #6 to #14 Solid or Stranded
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of USGM1HEL on Advantage Electric Supply is $38.21. Order now.
About the product
USGM1HEL Mersen - Fuse Holder UltraSafe™ 1000VDC Midget 32A 1-Pole Cage Clamp IP65 | Mersen’s USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology. | Features: • Equipped with industry proven, patented WAGO CAGE CLAMP® technology (over 25 years of field experience and acceptance)
• Reduce wire installation time by up to 75%
• Highly reliable, maintenance free wire contact
• Secure, vibration proof, corrosion resistant, temperature cycling resistant, cost saving wire connection
• Quick, tool-free, easy fuse change-outs
• IP20 finger-safe protection
• Option visual blown fuse indicator
• DIN-rail mounting
• Compact footprint
• Environmentally conscious, RoHS compliant and lead free
*USGM use with Midget Fuses: ATQ, ATM, TRM, OTM, A60Q-2, DCT-2
*USGM-HEL use with Photovoltaic Fuses: HP6M, HP10M | Application: *All circuits up to 750VAC / 1000VDC for power control, power distribution and power electronics
*Non-load disconnect
