US3J3 Mersen Fuse Holders
Part#:US3J3
Alt. Part#:782001307738
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

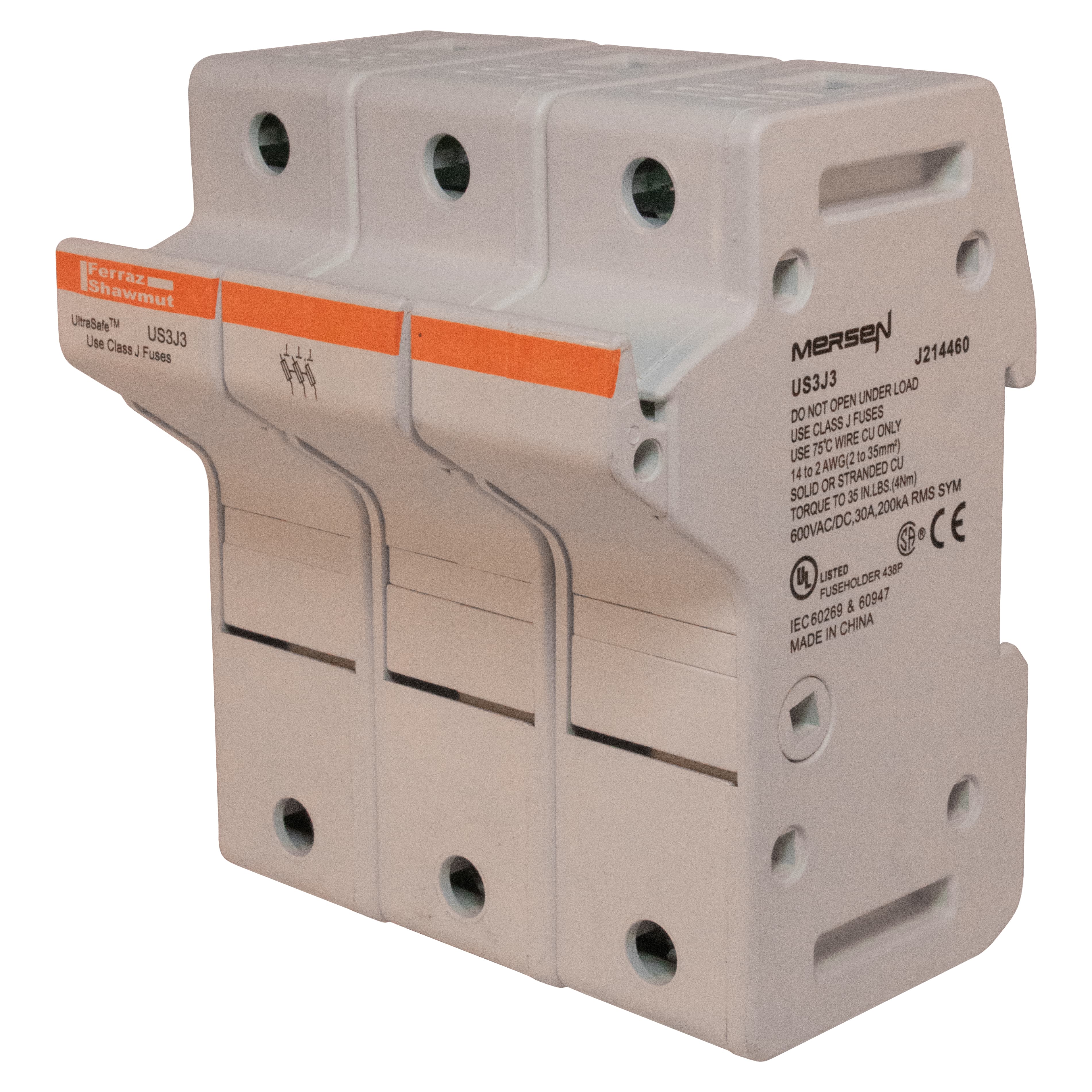

US3J3 Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Class J 30A 3-Pole Pressure Plate IP65
Product Details
- Number of Poles 3 Pole
- Current Rating 30 A
- Weight 649.22 g
- Voltage 600 VAC
- Product Height 3.15 in
- Sell Pack Width 4.8 in
- Sell Pack Weight 3 lb
- Sell Pack Height 3.43 in
- Sell Pack Length 8.27 in
- Sell Pack Quantity 2 Each
- Product Width 3.84 in
- Max Fuse Rating 30 A
- Product Length 4.49 in
- Body/Insulating Material Polyamide
- Installation Mounting DIN Rail
- Product Weight 1.43 lb
- Fuse Installation Method Clip-in
- Rated voltage DC UL 600 V
- Rated voltage AC UL 600 V
- Fuse Class Class J
- Wiring range #2 to 14 AWG
- Short Circuit Current Rating (SCCR) 200 kA
- Number of Poles 3-pole
- ROHS Compliant Yes
- Fuse Type/Class Class J
- Ampere Rating 30 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of US3J3 on Advantage Electric Supply is $328.22. Order now.
About the product
US3J3 Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Class J 30A 3-Pole Pressure Plate IP65 | Mersen UltraSafe Modular 600 Volt Fuse Holders for Class J fuses introduce a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as “finger-safe” to an IP20 grade of protection under IEC standards. The US3J accommodates 30A Class J or 22 x 58 mm French Ferrule* fuses. The US6J is for 60A Class J fuses. UltraSafe holders are available in compact 1, 2, or 3 pole units, with or without blown-fuse indicators in each pole. Multi-pole units can also be made up in the field by using the multiplepole Assembly Kits. All units have provisions for locking in the open position for safety during fuse changeouts or equipment servicing. US3J and US6J holders can be snap-mounted to 35 mm DIN-rail and they have a unique latch which will stay open to allow re-positioning of the holder in the future. UltraSafe body material is tough and durable polyamide.
*Holder not UL listed when installed with French Ferrule fuses.
RECOMMENDED FUSE USAGE:
*US3J, US6J use with AJT, A4J, HSJ | Features: *Finger-safe IP20 protection
*Optional indicator lights
*DIN-rail mount
*Compact footprint
*Quick, easy fuse change | Application: *600 volt motors, transformers, lighting, heating, control circuits, general loads
*Non-load disconnect
