9F60BBD003 Mersen Fuses
Product Details
- Current Rating 3 A
- Terminal Type Ferrule
- Weight 1.5 lb
- Voltage 5500 VAC
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Sell Pack Height 2.19 in
- Sell Pack Length 13.31 in
- Sell Pack Weight 1.58 lb
- Sell Pack Width 2.12 in
- Sell Pack Quantity 1 Each
- Product Length 7.38 in
- Product Diameter 1.56 in
- Product Weight 1.5 lb
- Rated voltage AC UL 5500 V
- Mounting Clip
- Ampere Rating 3 A
- Body/Insulating Material Epoxy
- AC Max I.R./Breaking Capacity: I1 63 kA
- Connection/Terminal Material Copper
- Indication System Yes
- Indication System Type Visual Indicator
- Connection/Terminal Type Ferrule
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9F60BBD003 on Advantage Electric Supply is $743.97. Order now.
About the product

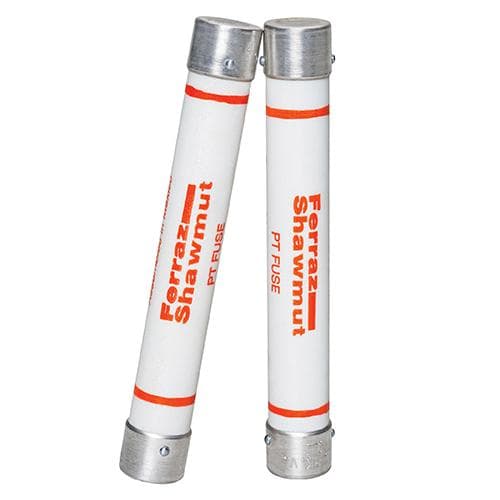

9F60BBD003 Mersen - Medium Voltage Potential Transformer Fuse 5500VAC 3A Ferrule Series: BBD Visual Indicator Amp-Trap®
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A
*Ferrule mounting for standard clips and interchangeability with other brands of fuses
*Current-limiting for superior equipment protection
*Non-venting for silent operation
*Metal embossed catalog number and manufacturing date for lasting identification
*Blown-fuse indicator to give positive identification of open fuse fuse is available on the 9F60 series
*Primary protection for potential transformers (PT) or control power transformers (CPT)
