9F60BBB003 Mersen Fuses
Product Details
- Current Rating 3 A
- Terminal Type Ferrule
- Weight 1.5 lb
- Voltage 2750 VAC
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Product Length 7.38 in
- Product Diameter 1.56 in
- Sell Pack Length 13.31 in
- Product Weight 1.5 lb
- Sell Pack Height 2.19 in
- Sell Pack Weight 1.58 lb
- Sell Pack Width 2.12 in
- Sell Pack Quantity 1 Each
- Ampere Rating 3 A
- Connection/Terminal Type Ferrule
- Indication System Yes
- Indication System Type Visual Indicator
- Body/Insulating Material Epoxy
- Connection/Terminal Material Copper
- Rated voltage AC UL 2750 V
- Mounting Clip
- AC Max I.R./Breaking Capacity: I1 52 kA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9F60BBB003 on Advantage Electric Supply is $725.04. Order now.
About the product

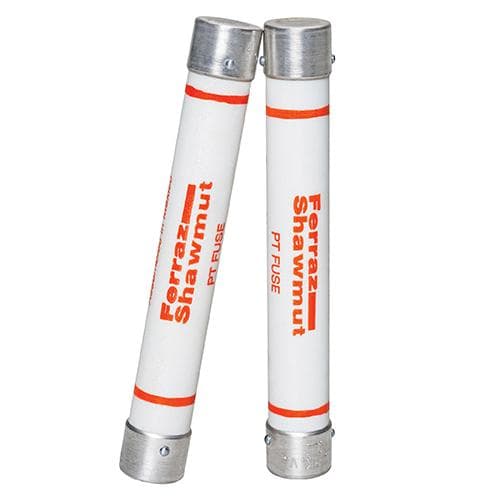

9F60BBB003 Mersen - Medium Voltage Potential Transformer Fuse 2750VAC 3A Ferrule Series: BBB Visual Indicator Amp-Trap®
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A
*Ferrule mounting for standard clips and interchangeability with other brands of fuses
*Current-limiting for superior equipment protection
*Non-venting for silent operation
*Metal embossed catalog number and manufacturing date for lasting identification
*Blown-fuse indicator to give positive identification of open fuse fuse is available on the 9F60 series
*Primary protection for potential transformers (PT) or control power transformers (CPT)
