SM8050 ifm Electronic Electronic Components
Part#:SM8050
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

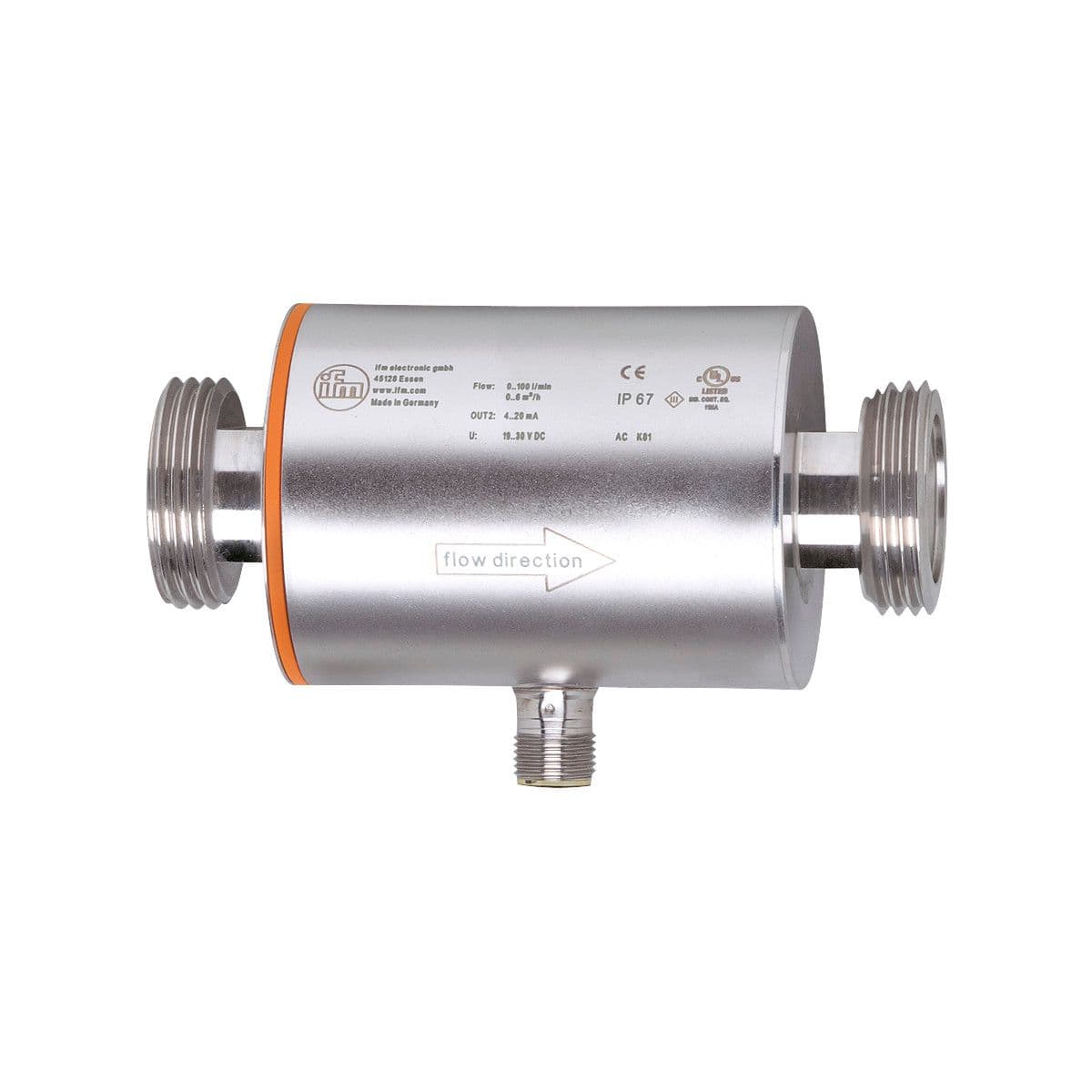

Magnetic-inductive flow meter, Number of inputs and outputs: Number of analog outputs: 1, Measuring range [l/min]: 0.2...100, Process connection: threaded connection G 1 DN25 flat seal, System: gold-plated contacts, Application: for industrial application
Product Details
- Overload protection yes
- Number of analog outputs 1
- Permanent current rating of switching output DC [mA] 250
- Max. load [Ω] 500
- Analog current output [mA] 4...20
- Power-on delay time [s] 5
- Reverse polarity protection yes
- Output signal analog signal; IO-Link; (configurable)
- Operating voltage [V] 18...30 DC; (according to EN 50178 SELV/PELV)
- Protection class III
- Total number of outputs 1
- Current consumption [mA] 95; (24 V)
- MAWP (for applications according to CRN) [bar] 11.2
- Pressure rating [Mpa] 1.6
- Pressure rating [bar] 16
- Medium temperature [°C] -10...70
- Note on media conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C)
- Media Conductive liquids; water; water-based media
- System gold-plated contacts
- Installation connection to pipe by means of an adapter
- Application for industrial applications
- Process connection threaded connection G 1 DN25 flat seal
- Measuring range [l/min] 0.2...100
- Number of inputs and outputs Number of analog outputs: 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
