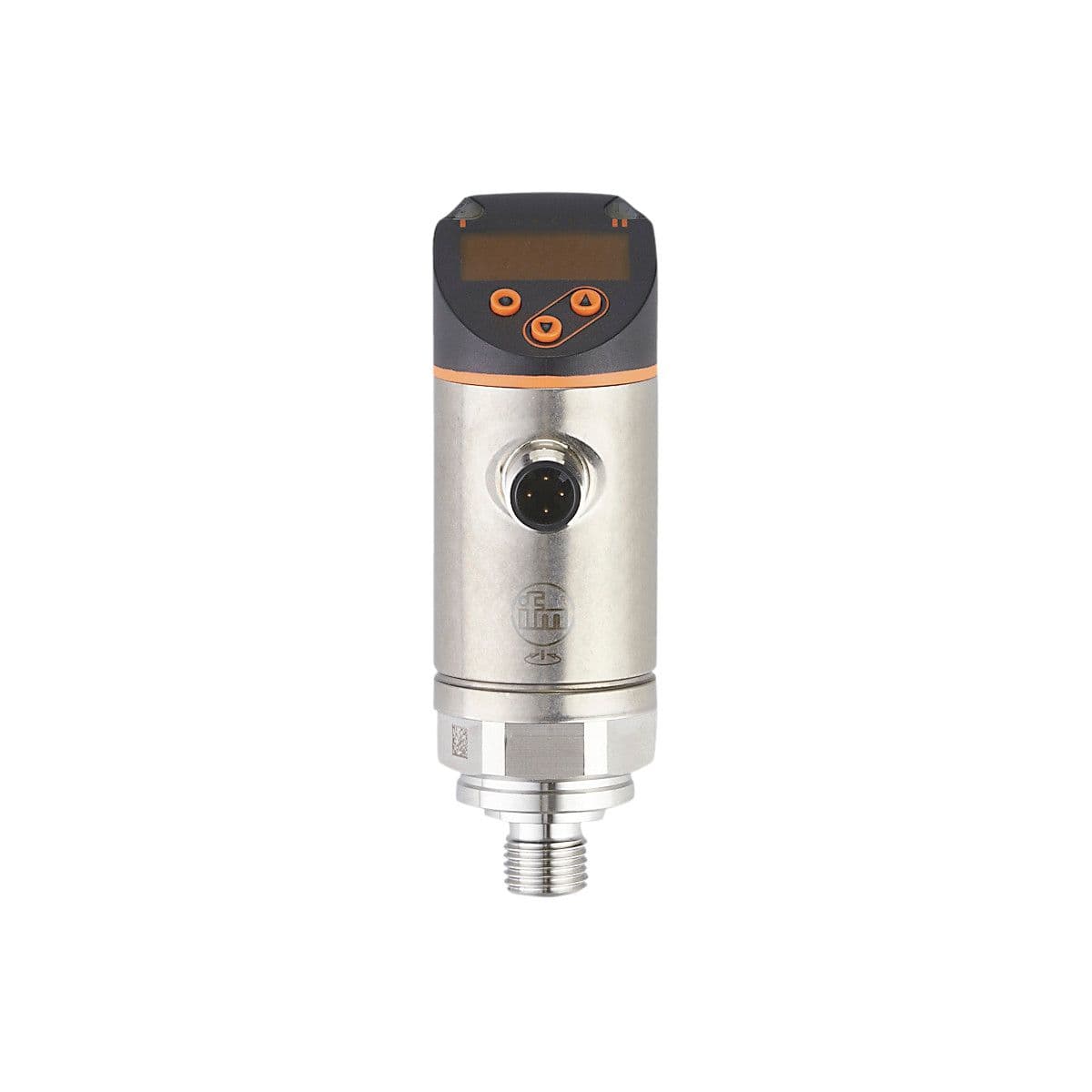

PE2592 ifm Electronic Electronic Components

Product Details

• Short-circuit protection
  yes
• Number of analog outputs
  1
• Integrated watchdog
  yes
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Overload protection
  yes
• Type of short-circuit protection
  yes (non-latching)
• Min. load resistance [Ω]
  2000
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Permanent current rating of switching output DC [mA]
  250
• Max. load [Ω]
  500
• Analog current output [mA]
  4...20; (scalable 1:5)
• Output function
  normally open / closed; (configurable)
• Switching frequency DC [Hz]
  < 500
• Max. voltage drop switching output DC [V]
  2
• Electrical design
  PNP/NPN
• Number of digital outputs
  2
• Total number of outputs
  2
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Power-on delay time [s]
  0.3
• Reverse polarity protection
  yes
Vacuum resistance [mbar]
-1000
Min. insulation resistance [MΩ]
100; (500 V DC)
Protection class
III
Current consumption [mA]
< 35
Pressure rating
300 bar 4350 psi 30 Mpa
Type of pressure
relative pressure
Measuring range
0...100 bar 0...1450 psi 0...10 MPa
System
gold-plated contacts
Output signal
switching signal; analog signal; IO-Link; (configurable)
Application
for industrial applications
Min. bursting pressure
650 bar 9400 psi 65 MPa
Process connection
threaded connection G 1/4 external thread Internal thread:M5; DIN EN ISO 1179-2
Media
liquids and gases
Measuring element
ceramic-capacitive pressure measuring cell
Medium temperature [°C]
-25...80
