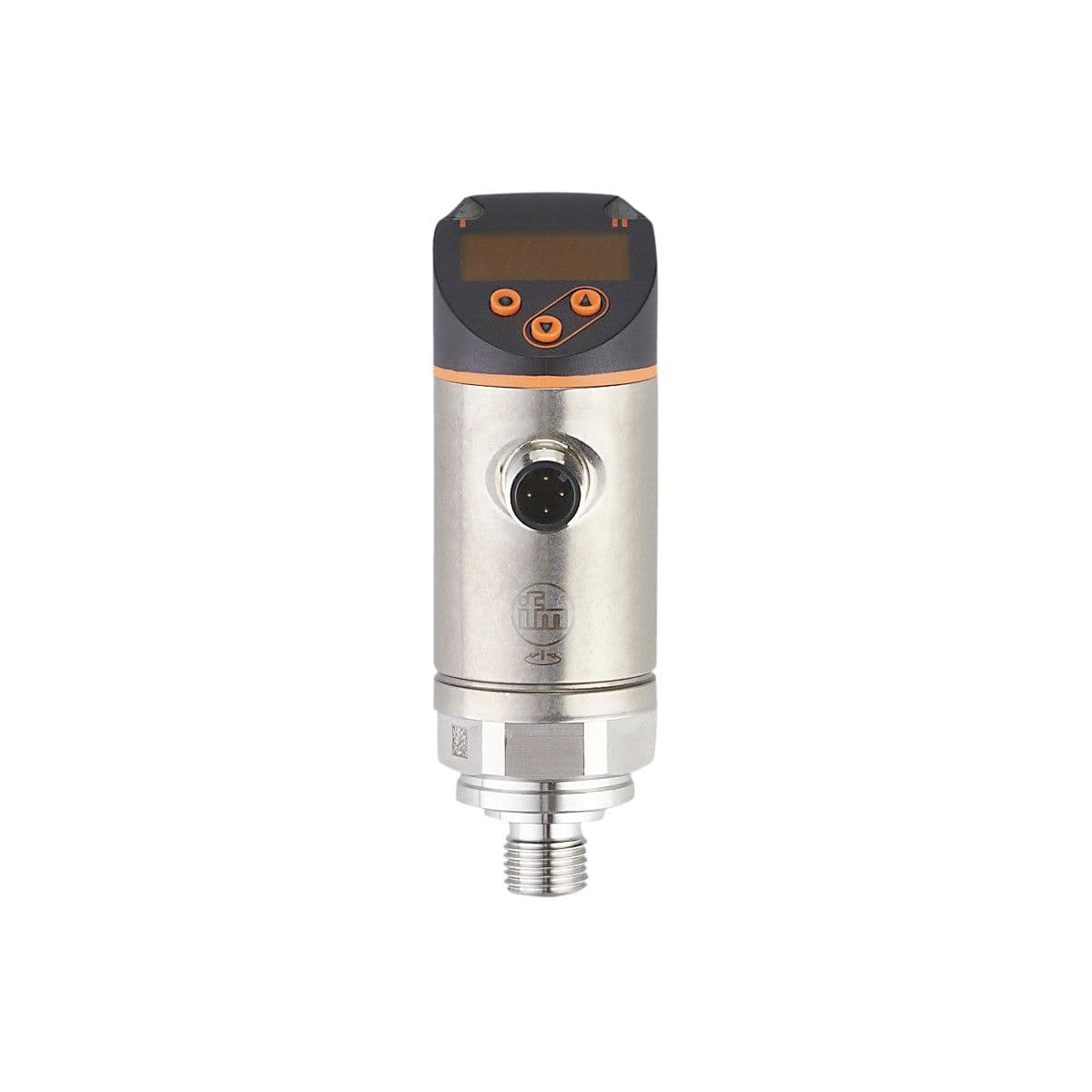

PE2599 ifm Electronic Electronic Components

Product Details

• Process connection
  threaded connection G 1/4 external thread Internal thread:M5; DIN EN ISO 1179-2
• Current consumption [mA]
  < 35
• Number of digital outputs
  2
• Type of short-circuit protection
  yes (non-latching)
• Protection class
  III
• Electrical design
  PNP/NPN
• Analog voltage output [V]
  0...10; (scalable 1:5)
• System
  gold-plated contacts
• Application
  for industrial applications
• Power-on delay time [s]
  0.3
• Max. voltage drop switching output DC [V]
  2
• Short-circuit protection
  yes
• Medium temperature [°C]
  -25...80
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Number of analog outputs
  1
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• Vacuum resistance [mbar]
  -1000
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Measuring range
  -1...1 bar -1000...1000 mbar -14.5...14.5 psi -100...100 kPa
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Switching frequency DC [Hz]
< 500
Max. load [Ω]
500
Measuring element
ceramic-capacitive pressure measuring cell
Pressure rating
10000 mbar 145 psi 1000 kPa
Integrated watchdog
yes
Reverse polarity protection
yes
Output signal
switching signal; analog signal; IO-Link; (configurable)
Output function
normally open / closed; (configurable)
Overload protection
yes
Min. load resistance [Ω]
2000
Min. insulation resistance [MΩ]
100; (500 V DC)
Permanent current rating of switching output DC [mA]
250
Media
liquids and gases
Analog current output [mA]
4...20; (scalable 1:5)
