IF5807 ifm Electronic Electronic Components

Name: IF5807
Brand: ifm Electronic

Part#:IF5807

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

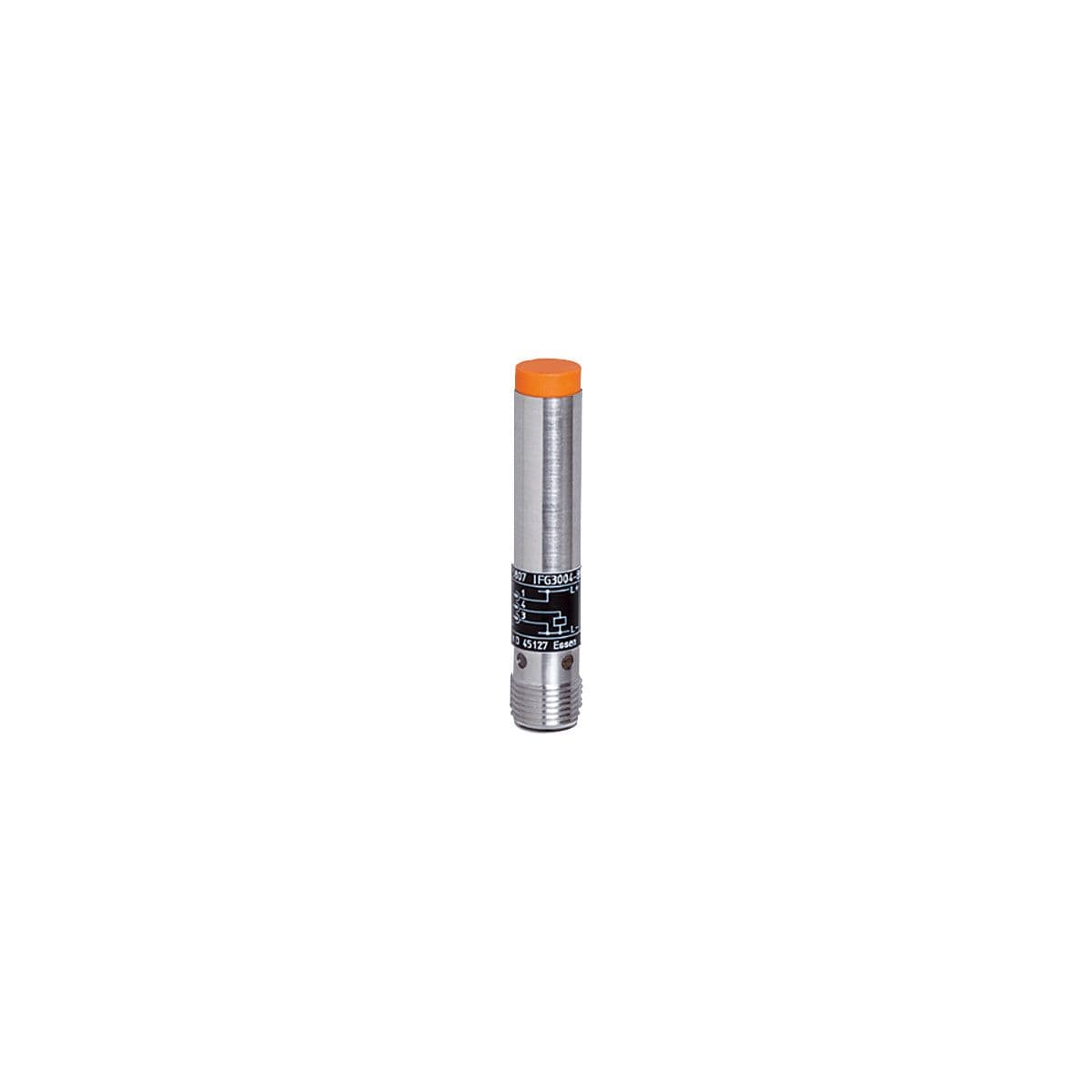

Inductive sensor, Smooth stainless steel housing for use in the food and beverage industry, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: tubular, Dimensions [mm]: Ø 11 / L = 60, System: gold-plated contacts

Product Details

Overload protection
yes
Switching frequency DC [Hz]
1400
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Permanent current rating of switching output DC [mA]
250
Max. voltage drop switching output DC [V]
2.5
Reverse polarity protection
yes
Output function
normally open
Current consumption [mA]
15; (24 V)
Protection class
II
System
gold-plated contacts
Operating voltage [V]
10...36 DC
Dimensions [mm]
Ø 11 / L = 60
Housing
tubular
Sensing range [mm]
4
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5807 Related Documents

PDF data sheet-1631071420872.pdf

Manufacturer warranty
