IF5815 ifm Electronic Electronic Components

Name: IF5815
Brand: ifm Electronic

Part#:IF5815

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

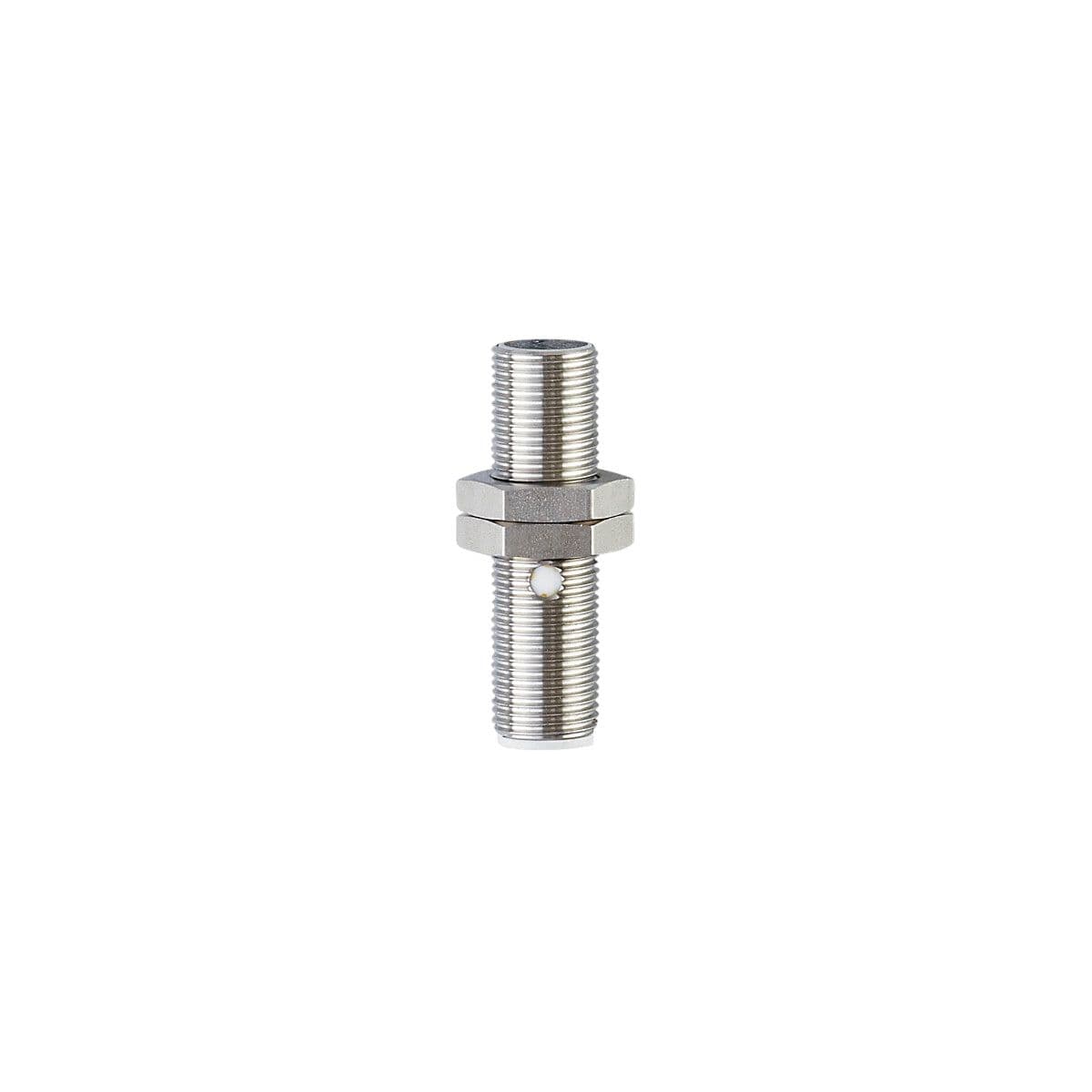

Inductive sensor, Wide operating temperature range, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 44, System: gold-plated contacts

Product Details

Overload protection
yes
Permanent current rating of switching output DC [mA]
250
Max. voltage drop switching output DC [V]
2.5
Switching frequency DC [Hz]
1200
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Reverse polarity protection
yes
Protection class
II
Sensing range [mm]
2
Output function
normally open
Operating voltage [V]
10...36 DC
Electrical design
PNP
Housing
Threaded type
System
gold-plated contacts
Dimensions [mm]
M12 x 1 / L = 44
Current consumption [mA]
15; (24 V)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5815 Related Documents

CAD_DWG_100_0028.ZIP-1631071488530.zip PDF data sheet-1631071488533.pdf CAD_STP_100_0028.ZIP-1631071488523.zip CAD_SAT_100_0028.ZIP-1631071488525.zip CAD_DXF_100_0028.ZIP-1631071488520.zip
