IF5813 ifm Electronic Electronic Components

Name: IF5813
Brand: ifm Electronic

Part#:IF5813

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

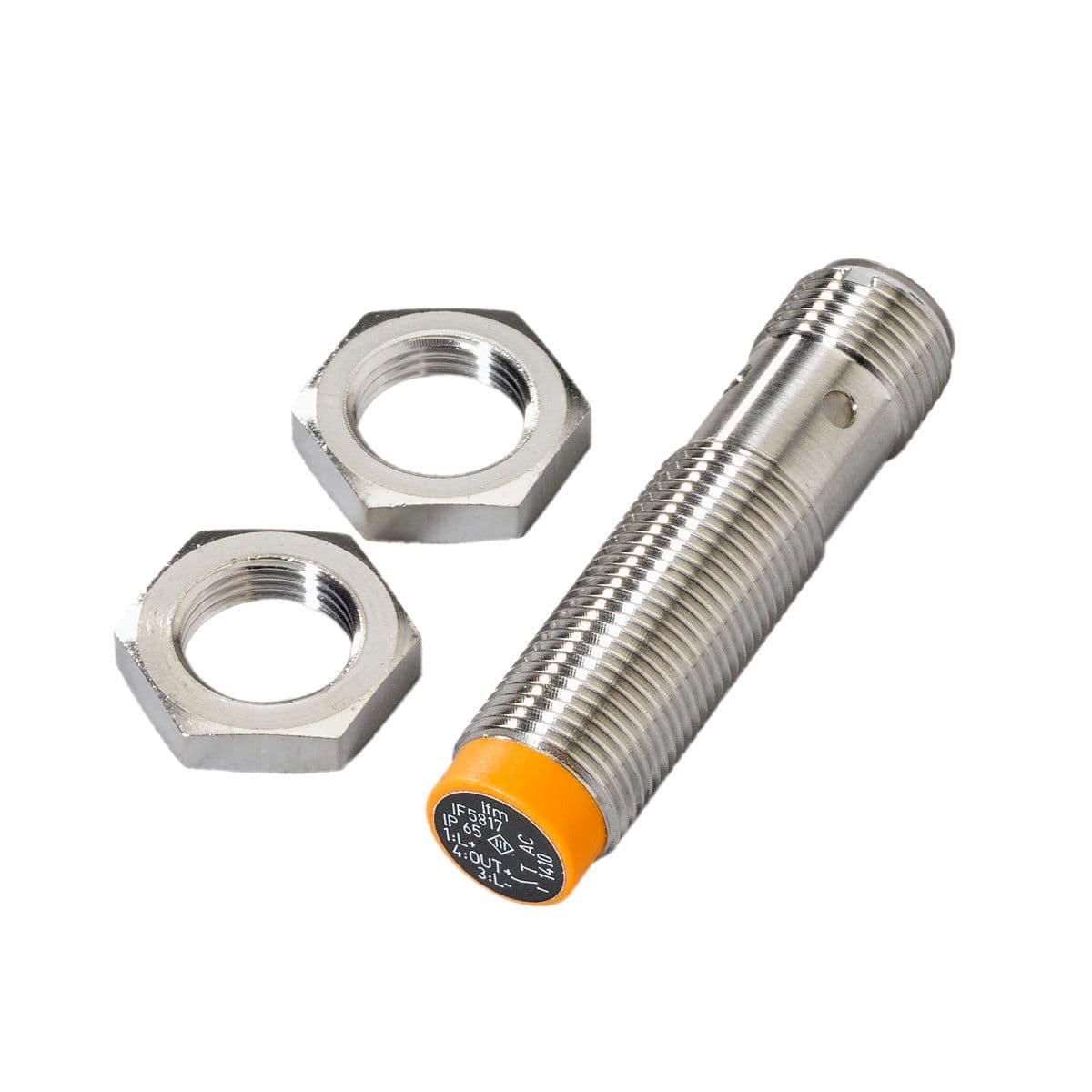

Inductive sensor, Wide operating temperature range, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 59, System: gold-plated contacts

Product Details

Max. voltage drop switching output DC [V]
2.5
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Overload protection
yes
Switching frequency DC [Hz]
1400
Permanent current rating of switching output DC [mA]
250
Reverse polarity protection
yes
Output function
normally open
Sensing range [mm]
4
Current consumption [mA]
15; (24 V)
System
gold-plated contacts
Operating voltage [V]
10...36 DC
Housing
Threaded type
Dimensions [mm]
M12 x 1 / L = 59
Electrical design
PNP
Protection class
II

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IF5813 Related Documents

CAD_DXF_100_0479.ZIP-1631071395271.zip CAD_DWG_100_0479.ZIP-1631071395279.zip PDF data sheet-1631071395268.pdf CAD_STP_100_0479.ZIP-1631071395283.zip CAD_SAT_100_0479.ZIP-1631071395272.zip

Manufacturer warranty
