IB0059 ifm Electronic Electronic Components

Name: IB0059
Brand: ifm Electronic

Part#:IB0059

Category:Electronic Components

Product Lifecycle:Active

Product description

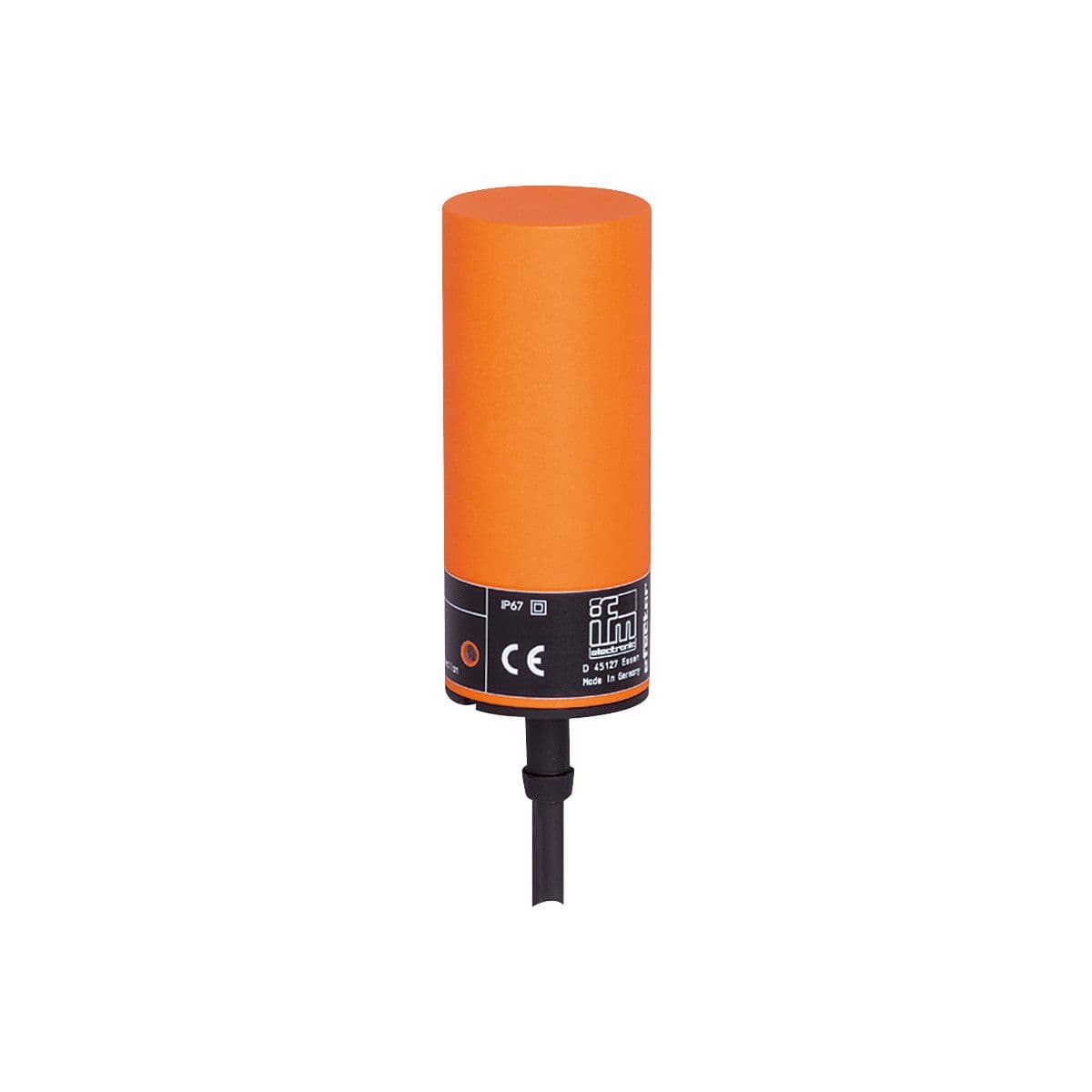

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 20, Housing: tubular, Dimensions [mm]: Ø 34 / L = 82

Product Details

Overload protection
no
Short-circuit proof
no
Switching frequency DC [Hz]
50
Switching frequency AC [Hz]
25
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Permanent current rating of switching output DC [mA]
100
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Minimum load current [mA]
5
Max. voltage drop switching output AC [V]
6.5
Operating voltage [V]
20...250 AC/DC
Sensing range [mm]
20
Reverse polarity protection
no
Protection class
II
Max. voltage drop switching output DC [V]
6
Dimensions [mm]
Ø 34 / L = 82
Housing
tubular
Output function
normally open

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IB0059 Related Documents

CAD_DWG_100_0008.ZIP-1631071319338.zip PDF data sheet-1631071319359.pdf CAD_SAT_100_0008.ZIP-1631071319339.zip CAD_STP_100_0008.ZIP-1631071319361.zip CAD_DXF_100_0008.ZIP-1631071319335.zip
