IB0011 ifm Electronic Electronic Components

Name: IB0011
Brand: ifm Electronic

Part#:IB0011

Category:Electronic Components

Product Lifecycle:Active

Product description

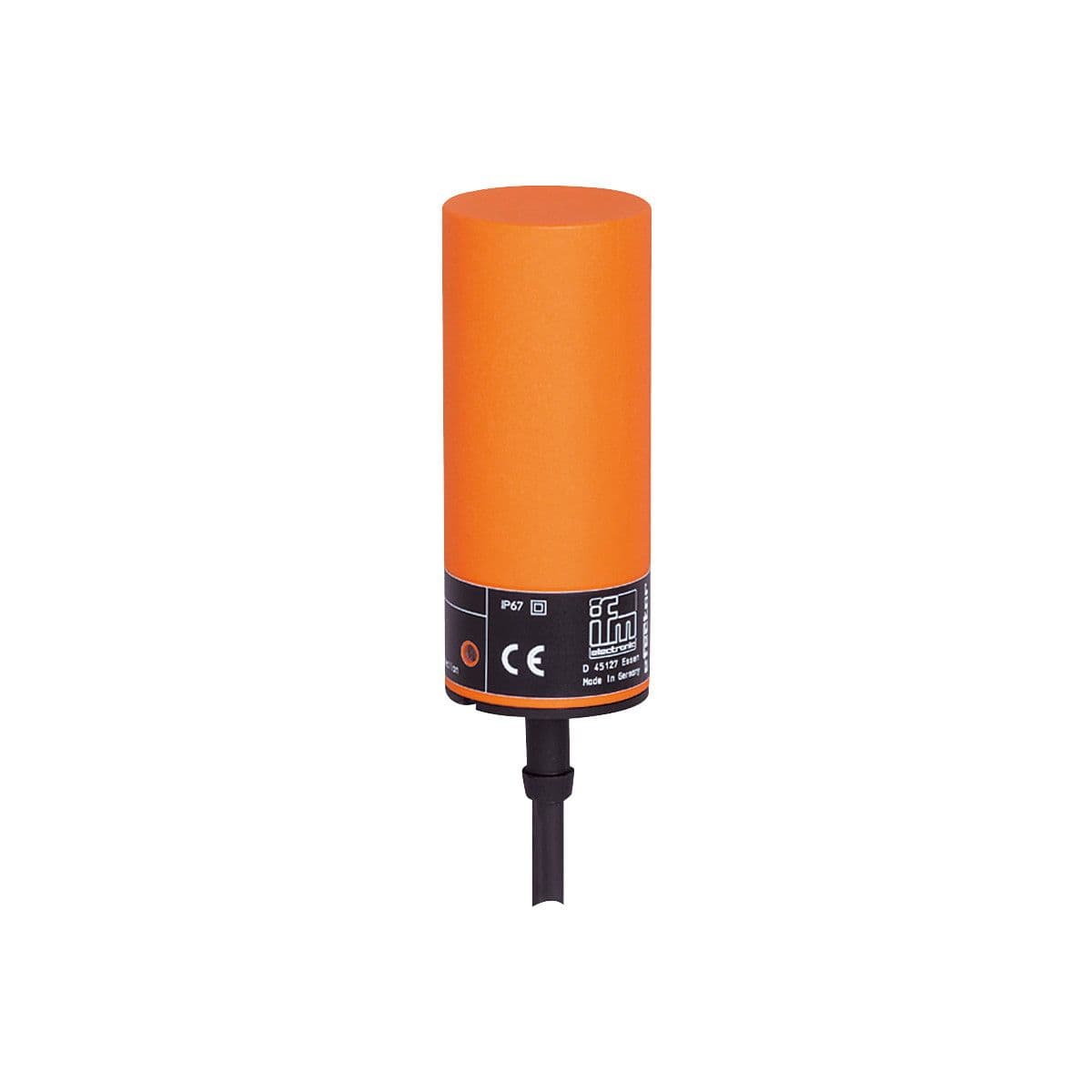

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 20, Housing: tubular, Dimensions [mm]: Ø 34 / L = 82

Product Details

Short-circuit proof
no
Overload protection
no
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Switching frequency DC [Hz]
50
Switching frequency AC [Hz]
25
Permanent current rating of switching output DC [mA]
100
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Minimum load current [mA]
5
Max. voltage drop switching output AC [V]
6.5
Sensing range [mm]
20
Reverse polarity protection
no
Output function
normally open
Max. voltage drop switching output DC [V]
6
Protection class
II
Housing
tubular
Operating voltage [V]
20...250 AC/DC
Dimensions [mm]
Ø 34 / L = 82

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
