AL1372 ifm Electronic Electronic Components
Part#:AL1372
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

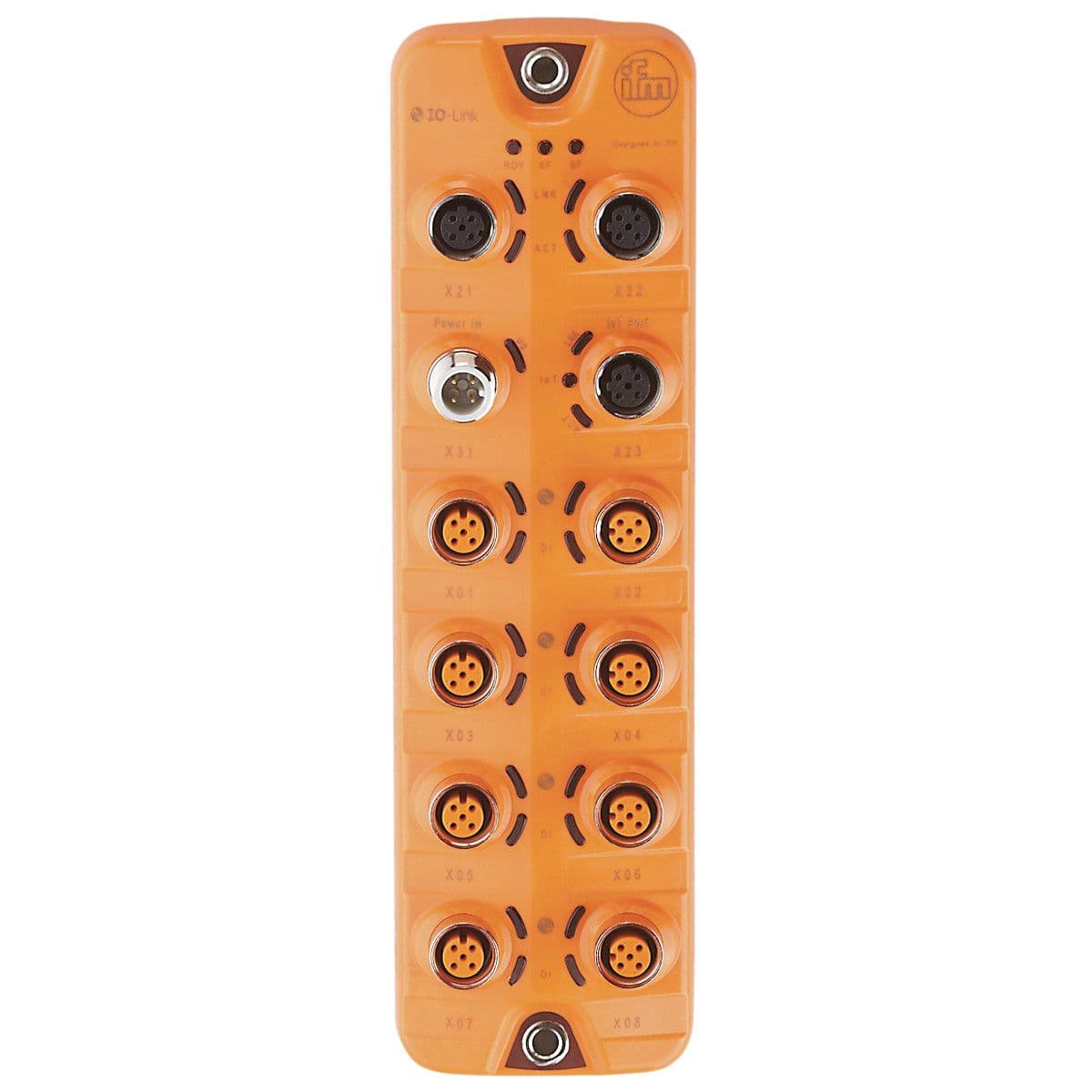

IO-Link master with POWERLINK interface, Separation between automation network and IT network, Application: I/O modules for field applications, Daisy-chain function: fieldbus interface
Product Details
- Short-circuit proof yes
- Number of digital outputs 8; (IO-Link Port Class A: 8 x 1)
- Digital inputs protected against short circuits yes
- Switching level low [V] 0...5
- Switching level high [V] 11...30
- Max. current load per output [mA] 300
- Current consumption [mA] 300...3900; (US)
- Max. current load total [A] 3.6
- Total number of inputs and outputs 16; (configurable)
- Number of inputs and outputs Number of digital inputs: 16; Number of digital outputs: 8
- Number of digital inputs 16; (IO-Link Port Class A: 8 x 2)
- Operating voltage [V] 20...30 DC; (US; to SELV/PELV)
- Protection class III
- Daisy-chain function fieldbus interface
- Application I/O modules for field applications
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
AL1372 ifm Electronic
