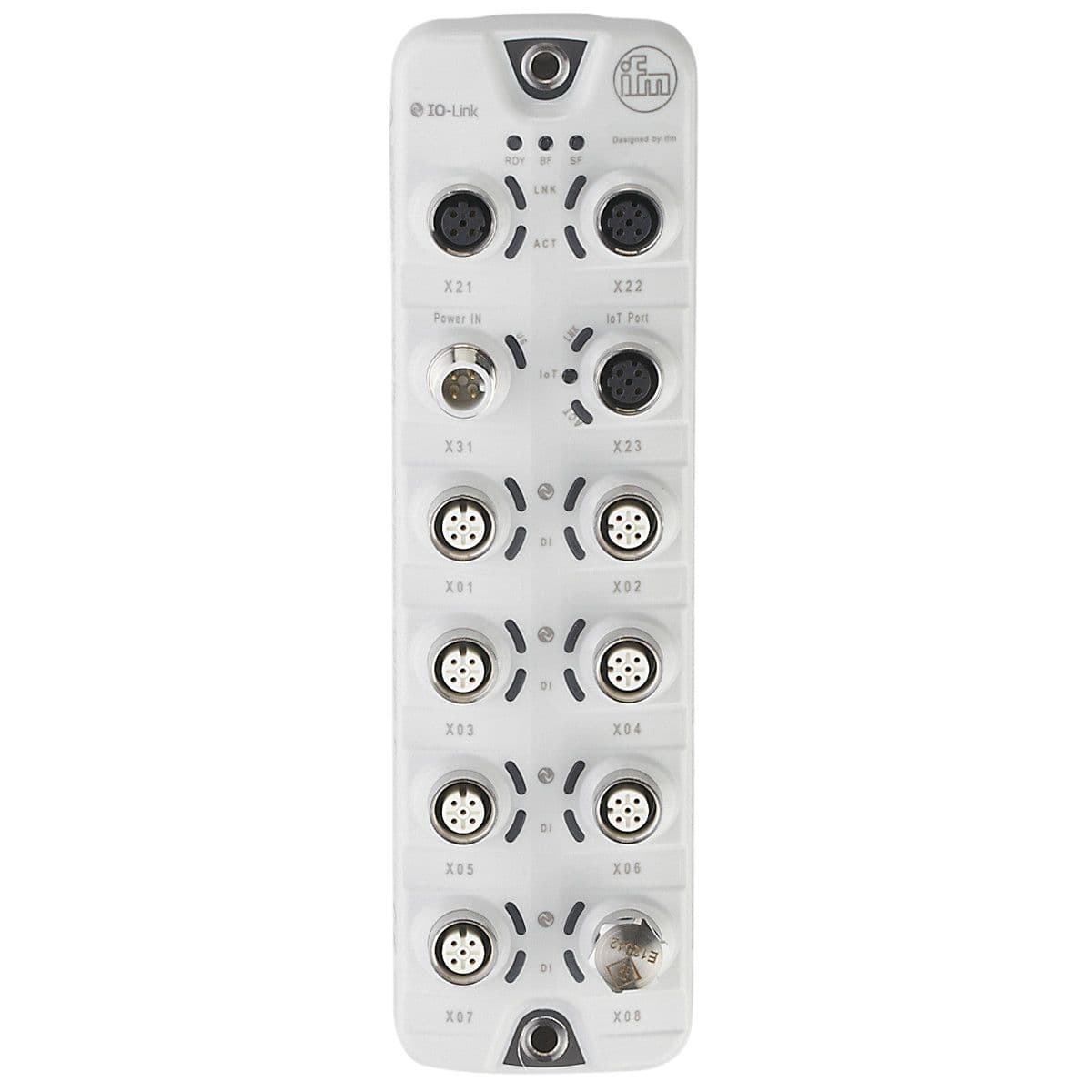

AL1343 ifm Electronic Electronic Components

Name: AL1343
Brand: ifm Electronic

Part#:AL1343

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

IO-Link master with Modbus TCP interface, Separation between automation network and IT network, Application: hygienic systems; I/O modules for field applications, Daisy-chain function: fieldbus interface

Product Details

Digital inputs protected against short circuits
yes
Max. current load per output [mA]
300
Switching level high [V]
11...28
Number of digital outputs
8; (IO-Link Port Class A: 8 x 1)
Short-circuit proof
yes
Switching level low [V]
0...5
Max. current load total [A]
3.6
Number of digital inputs
16; (IO-Link Port Class A: 8 x 2)
Operating voltage [V]
20...28 DC; (US; to SELV/PELV)
Number of inputs and outputs
Number of digital inputs: 16; Number of digital outputs: 8
Current consumption [mA]
300...3900; (US)
Total number of inputs and outputs
16; (configurable)
Application
hygienic systems; I/O modules for field applications
Protection class
III
Daisy-chain function
fieldbus interface

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

AL1343 Related Documents

PDF data sheet-1631073295026.pdf CAD_SAT_ASI_0166.ZIP-1631073295021.zip CAD_STP_ASI_0166.ZIP-1631073295019.zip CAD_DXF_ASI_0166.ZIP-1631073295027.zip CAD_DWG_ASI_0166.ZIP-1631073295023.zip
