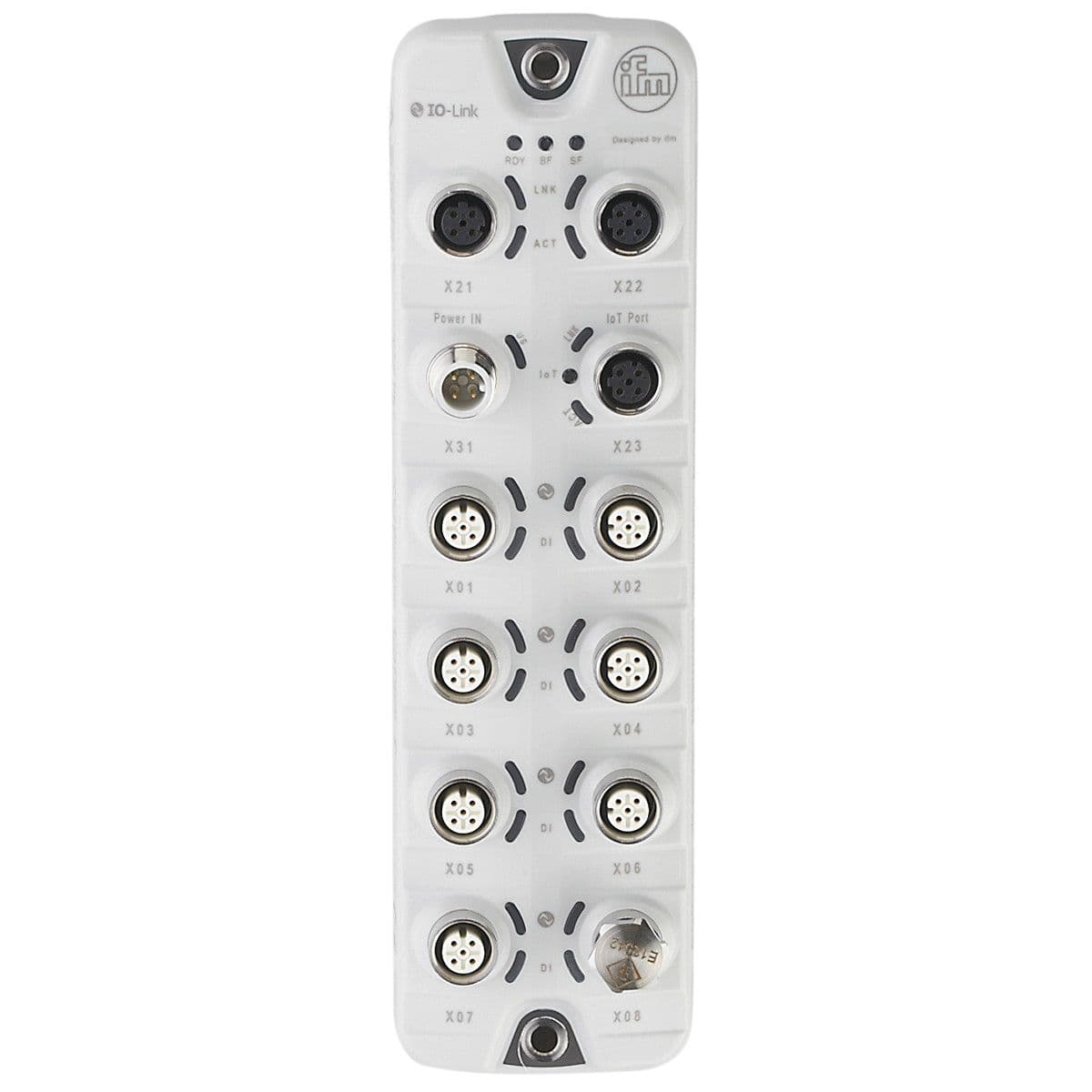

AL1303 ifm Electronic Electronic Components
Part#:AL1303
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
IO-Link master with Profinet interface, Separation between automation network and IT network, Application: hygienic systems; I/O modules for field applications, Daisy-chain function: fieldbus interface
Product Details
- Number of digital outputs 8; (IO-Link Port Class A: 8 x 1)
- Short-circuit proof yes
- Max. current load per output [mA] 300
- Digital inputs protected against short circuits yes
- Switching level high [V] 11...28
- Switching level low [V] 0...5
- Number of digital inputs 16; (IO-Link Port Class A: 8 x 2)
- Daisy-chain function fieldbus interface
- Total number of inputs and outputs 16; (configurable)
- Operating voltage [V] 20...28 DC; (US; to SELV/PELV)
- Number of inputs and outputs Number of digital inputs: 16; Number of digital outputs: 8
- Protection class III
- Max. current load total [A] 3.6
- Current consumption [mA] 300...3900; (US)
- Application hygienic systems; I/O modules for field applications
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
