55.13.8.024.0000 Finder Control Relays

55.13.8.024.0000 on Advantage Electric Supply
Finder

Part#:55.13.8.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

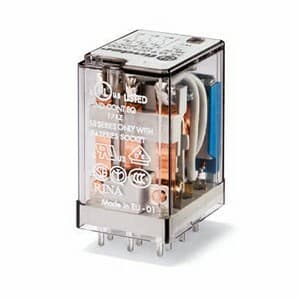

Finder 55.13.8.024.0000 is a relay with a solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures for operation and storage of -40 to +85 degrees Celsius. The relay is rated for 250Vac with a control voltage of 4 kV and a net depth of 35.8 mm. Its mounting mode dimensions are 27.7 mm, with a power consumption footprint of 20.7 mm. The relay is colored for 24Vac (50Hz/60Hz) operations, utilizes a PCB for residual current sensitivity, and supports up to 200,000 operations for Normally Closed (NC) circuits. The length of the relay is specified by the material AgNi (Silver Nickel), and it is designed for up to 20,000,000 operations, indicating its durability and longevity in applications.

Product Details

  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Connection type
    Solder pin
  • Net Height (mm)
    35.8 mm
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Mounting mode
    PCB
  • Electrical durability (with load)
    200 000 operations
  • Rated voltage (AC)
    250Vac
  • Net Depth (mm)
    20.7 mm
  • Primary brand
    Finder
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Mechanical durability (at no load)
    20 000 000 operations
  • Product series / family name
    55 Series
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    27.7 mm
  • Main function
    Relay
  • Poles
    3 Pole(s)
  • Rated impulse voltage (Uimp)
    4 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
