56.32.9.024.0000 Finder Control Relays

56.32.9.024.0000 on Advantage Electric Supply
Finder

Part#:56.32.9.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Only 1 left in stock. Order Now!

Apr 17, 2025

Product description

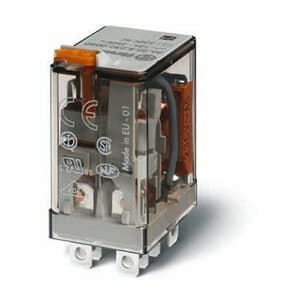

Finder 56.32.9.024.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for operation and has a rated voltage for AC operations. The relay supports a communication protocol of C, is designed for use with a control voltage (AC) of 24Vdc, and offers protection functions at 250Vac with a control voltage (AC) withstand of 4 kV. It is rated for an active power of 2 poles, features plug-in residual current sensitivity, and is capable of 100,000 operations for Normally Closed (NC) circuits. The relay's contacts are made from AgNi (Silver Nickel), ensuring durability for up to 50,000,000 operations.

Product Details

  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    50 000 000 operations
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Product series / family name
    56 series
  • Poles
    2 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Control Voltage (DC)
    24Vdc
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
